LC741B Customized Shaft Pin Type Load Cell Crane Hanging Scale Load Cell for Hoist And Crane Overload Safety Device

Availability:
Quantity:
  • LC741B
  • SAINTBOND

Load Cell

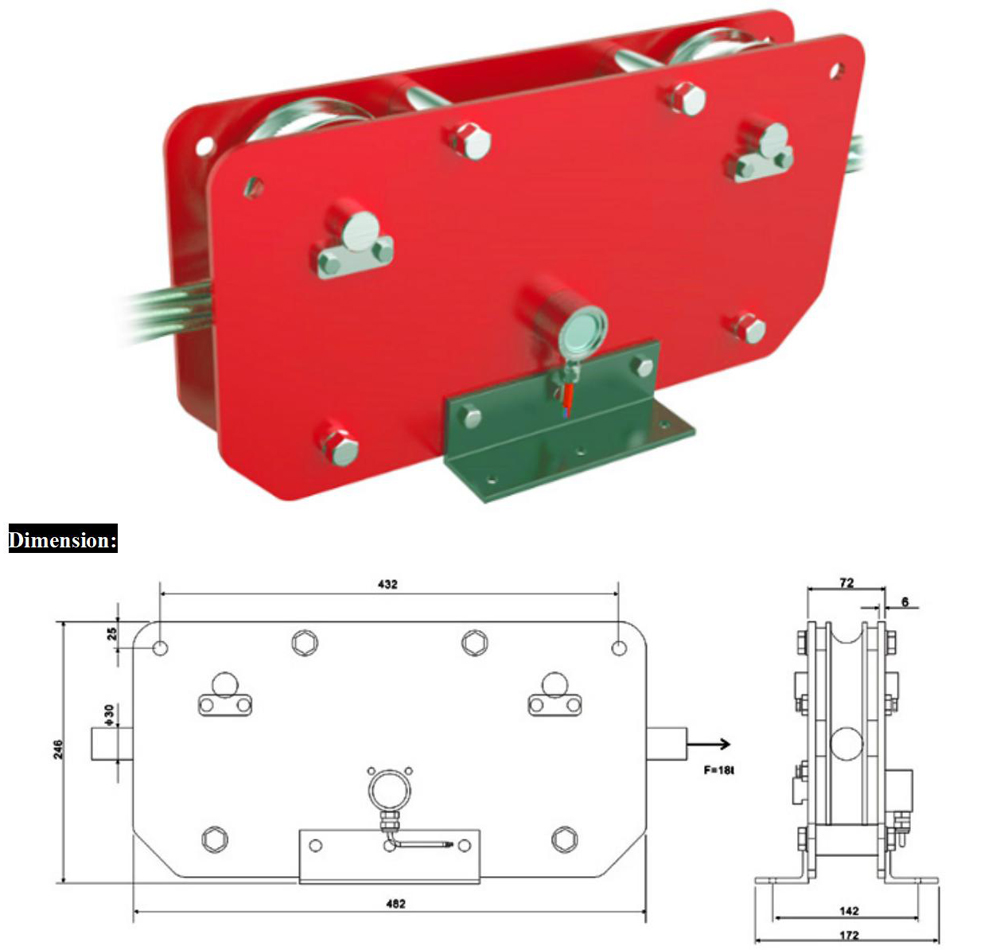

LC741B_01

Technical Parameter:

Rated Load:

0.2/0.3/0.5/1/2/3/5/8/10/20t

Sensitivity:

2.0mV/V±0.1% /3.0mV/V±0.1%

Operating Temp. Range:

-30~+70℃

Combined Error:

±0.02% F.S

Max. Safe Over Load:

150%F.S

Creep Error(30min):

±0.02% F.S

Ultimate Over Load:

250%F.S

Zero Balance:

±1% F.S

Recommend Excitation:

10~12V DC

Temp. Effect On Zero:

±0.02% F.S/10℃

Maximum Excitation:

15V DC

Temp. Effect On Span:

±0.02% F.S/10℃

Sealing Class:

IP67/IP68

Input Resistance:

380Ω±10Ω

Element Material:

A:Alloy Steel, SS:Stainless Steel

Output Resistance:

350Ω±2Ω

Cable:

Length=L:3~12m

Insulation Resistance:

≥5000MΩ

Citation:

GB/T7551-2008/ OIML R60

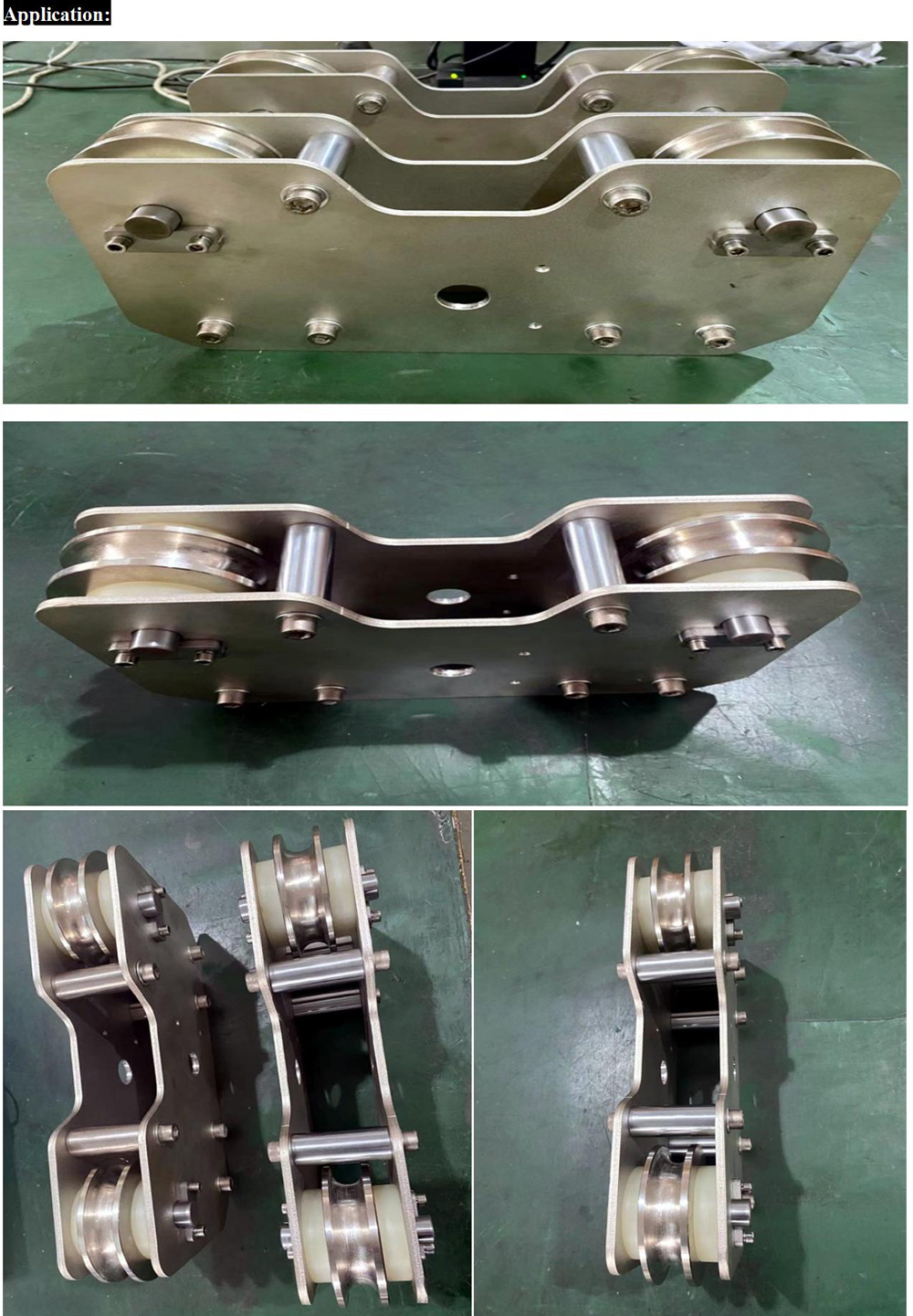

LC741B_02


圣邦网站1详情页_05

Product name LC741B Customized Shaft Pin Type Load Cell Crane Hanging Scale Load Cell for Hoist And Crane Overload Safety Device
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
