Product Description:

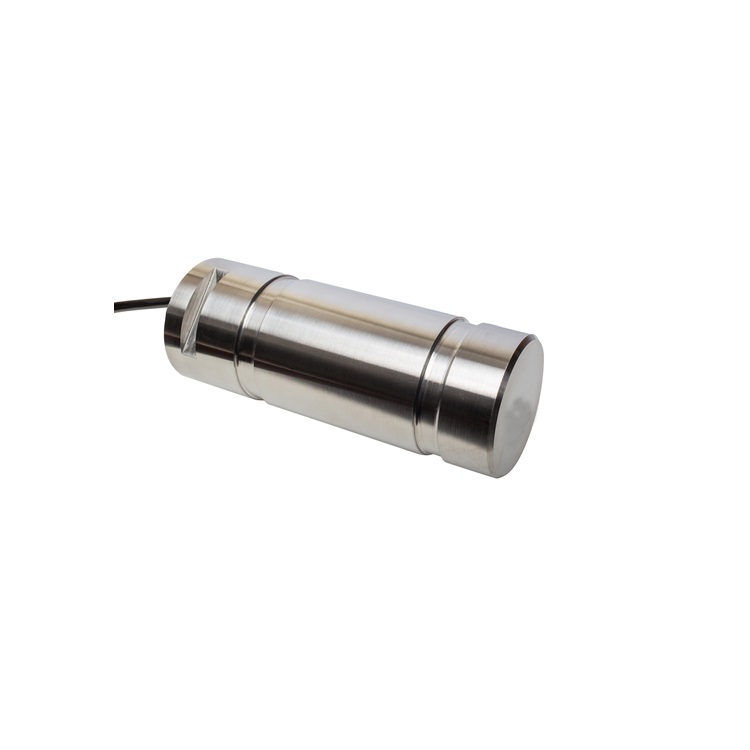

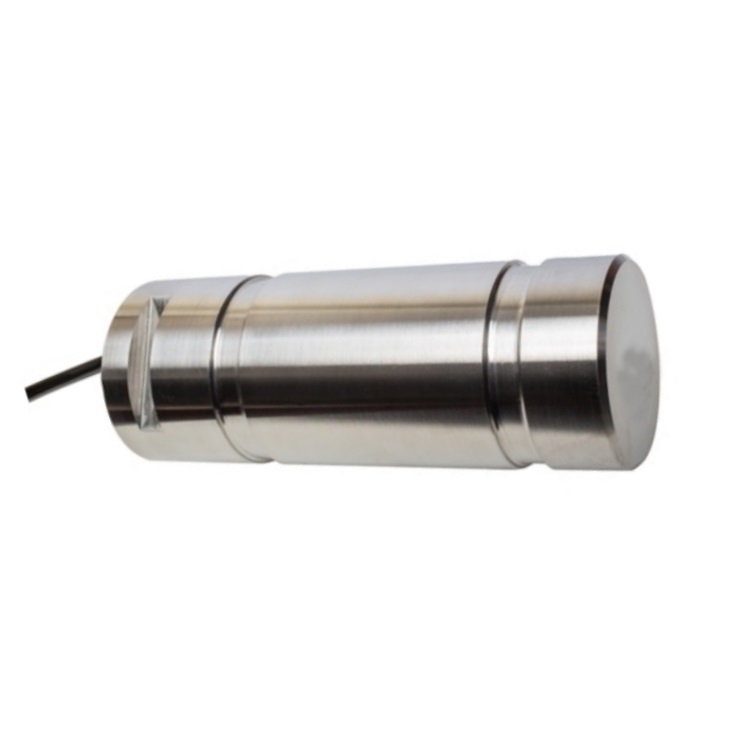

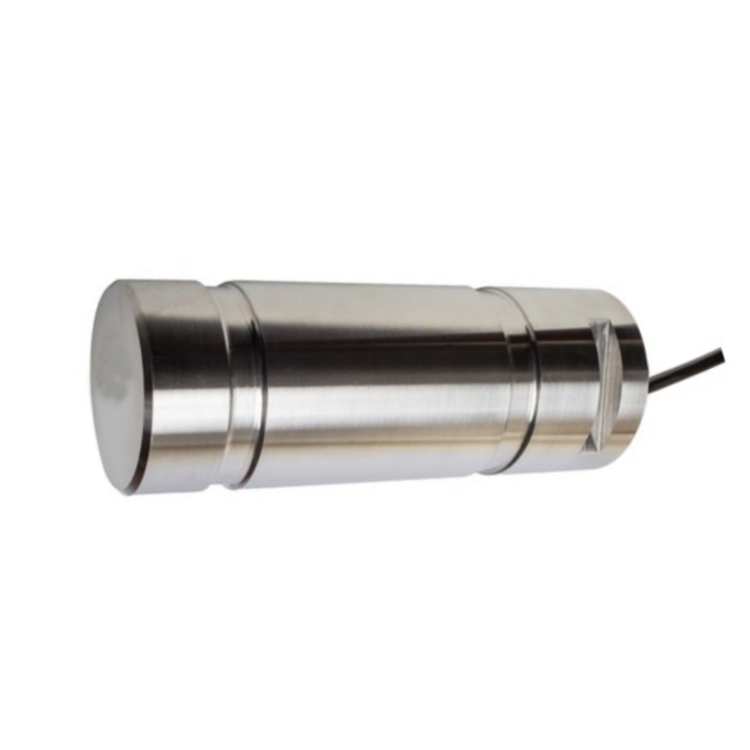

The LC71001 shear pin load cell design is suitable for the measurement of tensile and compressive forces across a huge range of process monitoring, offshore, civil engineering, industrial, marine and crane/lifting applications.
All of our pin load cells are manufactured from alloy or stainless steel and sealed to IP67 as standard to ensure that they are able to stand up to the tough conditions that are commonplace in a typical industrial, marine or offshore application.
We offer a range of standard-size pin load cells, although in the vast majority of cases we will design a customised shear pin load cell to be used as a direct replacement for an existing non-load measuring pin, or to meet an exact customer specification.
You can use our Shear Pin Load Cell Enquiry Form if you would like to enquire about the design and manufacture of a custom pin load cell, or alternatively contact us to discuss your application.
Applications:
◎Marine tankers, offshore platforms;
◎Elevator and floor conveyor testing and certification;
◎Bearing blocks, pivots and shackles;
◎Cable laying equipment;
◎Rope, Chain and brake anchors;
◎Bridge support cables;
◎Mooring lines;
◎Pulleys and sheaves;
◎Crane cables;
◎Hoisting gear;
◎Winches;

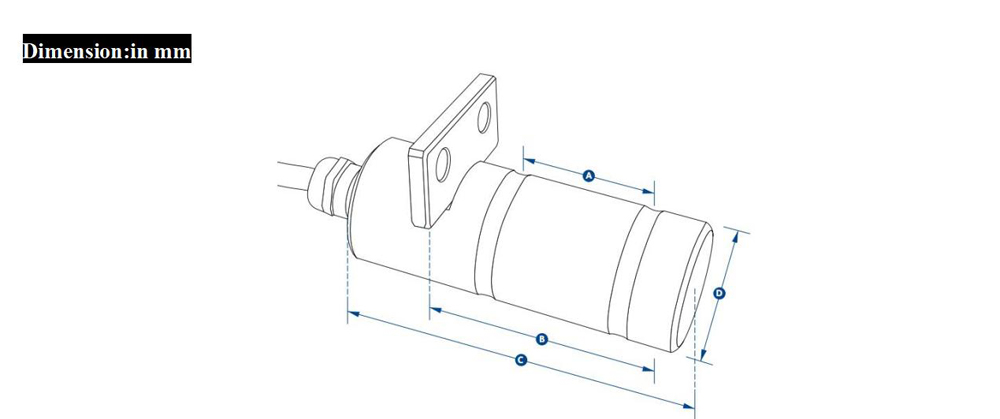

Capacity | Weight | A | B | C | D |
(kg) | (kg) | (mm) | (mm) | (mm) | (mm) |
500kg | 0.9 | 24 | 36 | 70 | 20 |
1000kg | 1 | 35 | 49 | 80 | 20 |
2500kg | 1.2 | 45 | 70 | 100 | 25 |
3500kg | 1.4 | 50 | 75 | 105 | 30 |
6500kg | 2 | 63 | 95 | 125 | 40 |
15000kg | 3.1 | 75 | 114 | 150 | 50 |
25000kg | 5.6 | 89 | 152 | 195 | 63 |
50000kg | 8.6 | 102 | 178 | 225 | 75 |
100000kg | 11.8 | 110 | 190 | 230 | 88 |
250000kg | 29.8 | 130 | 220 | 300 | 125 |
500000kg | 79.2 | 225 | 370 | 440 | 170 |
750000kg | 146 | 295 | 500 | 590 | 200 |
1000000kg | 275 | 360 | 612 | 712 | 250 |
1500000kg | 389 | 430 | 731 | 832 | 275 |
Technical Parameter:
Sensitivity: | 1~1.5mV/V nominal (dependent on range) | ||
Operating Modes: | Tension/Compression / Tension & Compression | ||
Rated Load: | 0.5/1/2.5/3.5/6.5/15/25/50/100/250/500/750/1000/1500t | ||
Combined Error: | ±0.02% F.S | Operating Temp. Range: | -10~+70℃ |
Creep Error(30min): | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
Zero Balance: | ±1% F.S | Ultimate Over Load:: | 300%F.S |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
Input Resistance: | 385±5Ω | Sealing Class: | IP67/68 |
Output Resistance: | 350±5Ω | Element Material: | Alloy /Stainless Steel |
Insulation Resistance: | ≥5000MΩ | Cable: | Length=L:1~20m |
Please note: If you require a load pin to a particular size and design, please contact with us (price on application). Wireless Load Pins available (price on application).
| Product name | LC7001 Crosby Load Cell Shackle Load Pins Tension Link& Clamp on Crane Pin De Loaded |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
