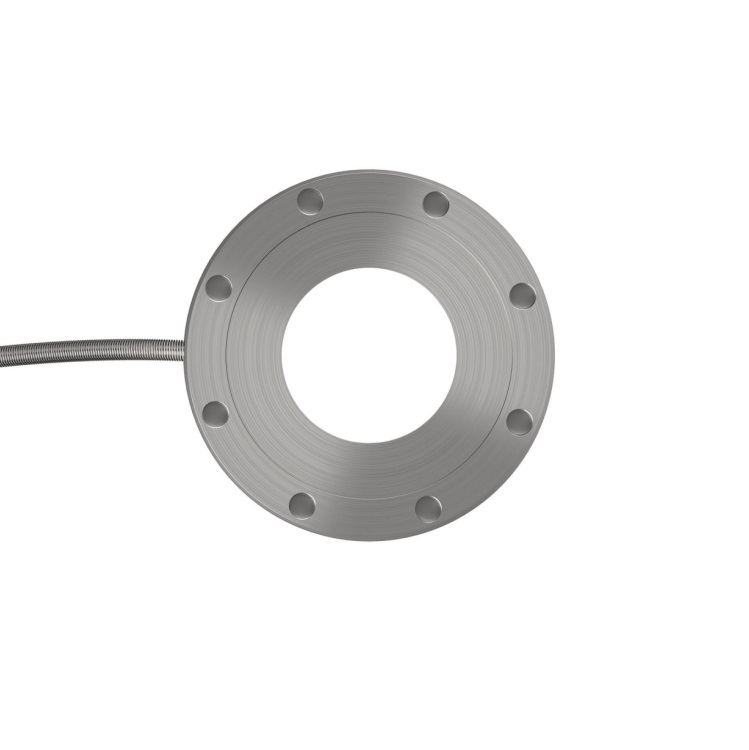

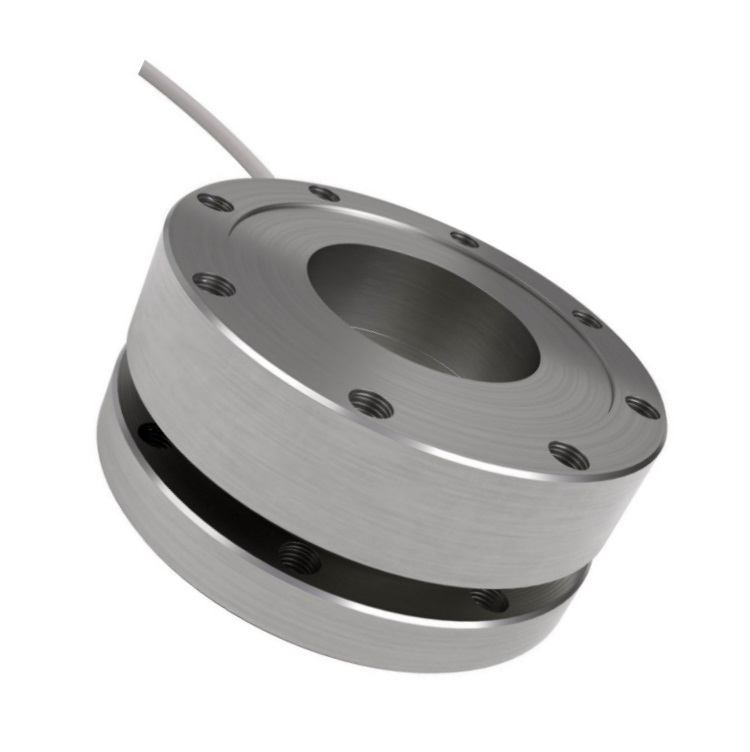

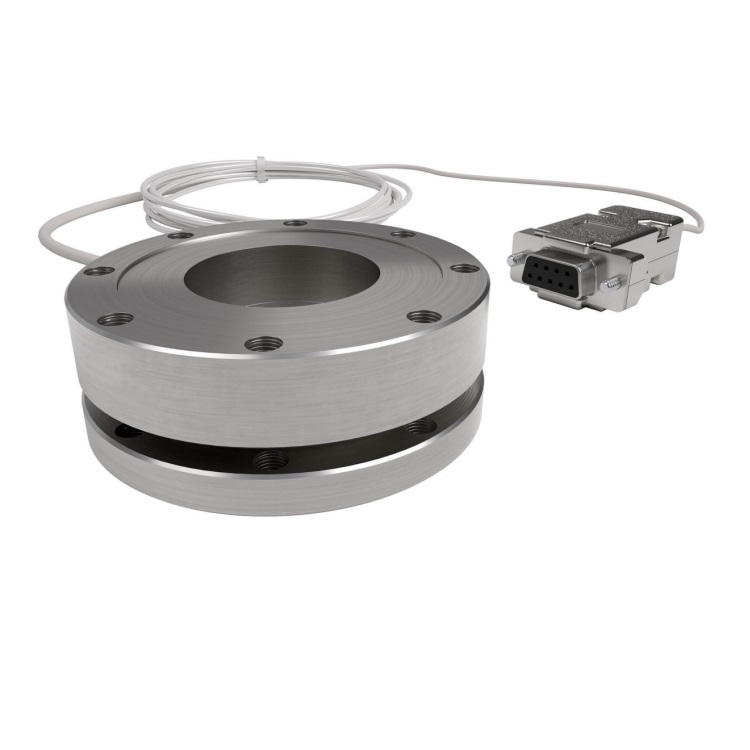

The LC591is a full-bridge, bonded foil strain gauge force sensor designed for press fit applications. Constructed of stainless steel, the robust construction offers repeatable, high accuracy monitoring of press fit operations in assembly machinery. The low-profile design enables the LC591 to be easily embedded into assembly machines. Available in a range of standard capacities from 2kN through to 100kN; the LC591 is configured for compression force measurement.The mV/V output from the transducer provides excellent long-term stability.The LC591 can be supplied with standard cable configurations or with industry standard connectors.

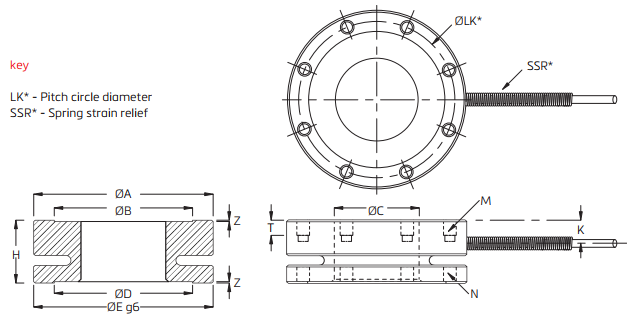

Dimension Unit: mm
Cap.(kN) | A | B | C | D | E | H | K | Z | M | T | LK | N |
2/5/10/20 | 69.7 | 54 | 33 | 54 | 70 | 25 | 9 | 0.5 | M5,8×45° | 6 | 62 | M5,8×45° |
50/100 | 111.5 | 97 | 70 | 97 | 112 | 35 | 13 | 1.1 | M6,5×45° | 10 | 104 | M6,5×45° |
Technical Parameter:
Rated Load: | 2/5/10/20/100kN | ||
Sensitivity: | 1±20% (Voltage, current loop or digital output versions are available on request) | ||
Combined Error: | ±0.02% F.S | Operating Temp. Range: | -30~+70℃ |
Creep Error(30min): | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
Zero Balance: | ±1% F.S | Ultimate Over Load: | 200%F.S |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Excitation voltage: | 5(recommended), 10 (max) |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 750±5Ω | Element Material: | Alloy / Stainless Steel |
Output Resistance: | 702±2Ω | Cable: | Length=L:13m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Product name | LC6006 Compression Load Washer Load Cells Washer Type Press Force Sensor 2/5/10/20/100kN |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
