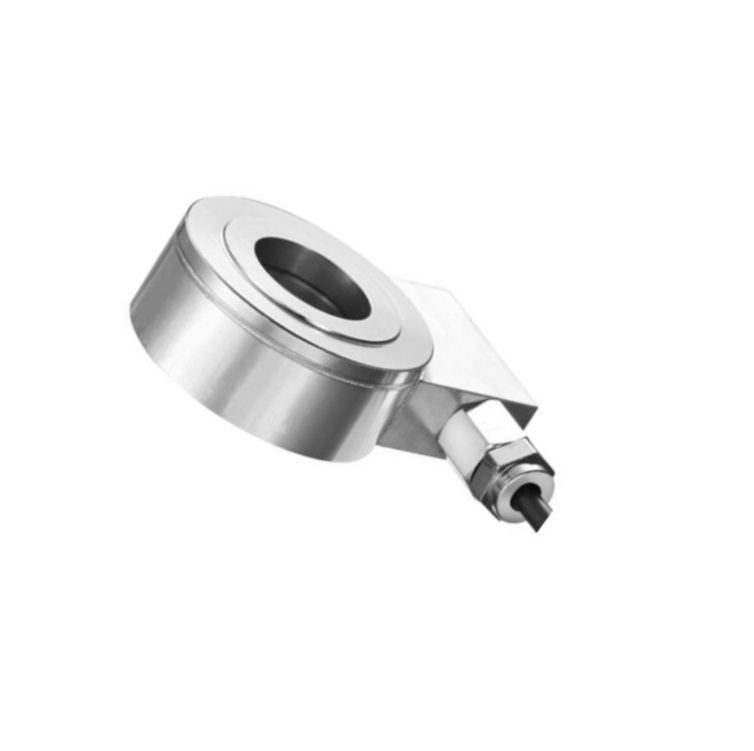

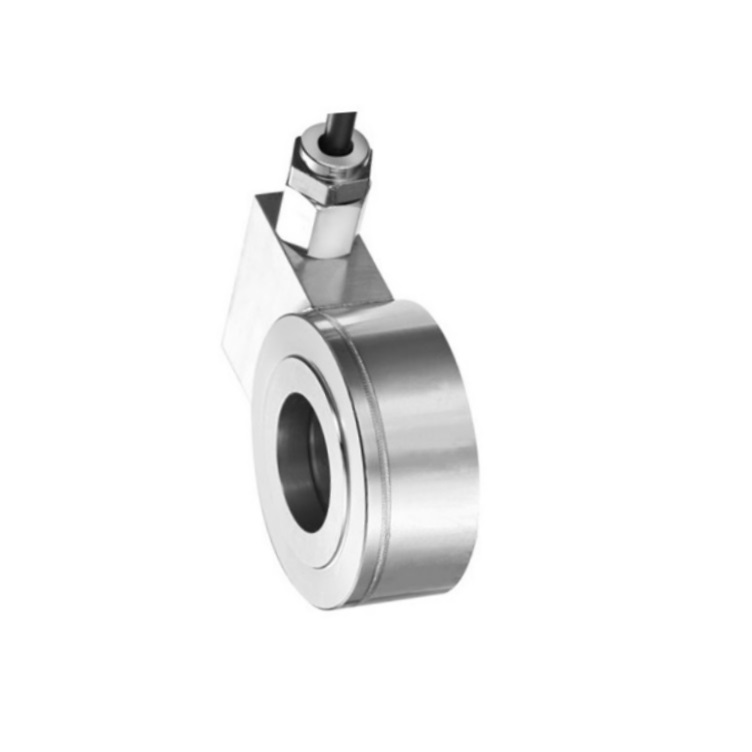

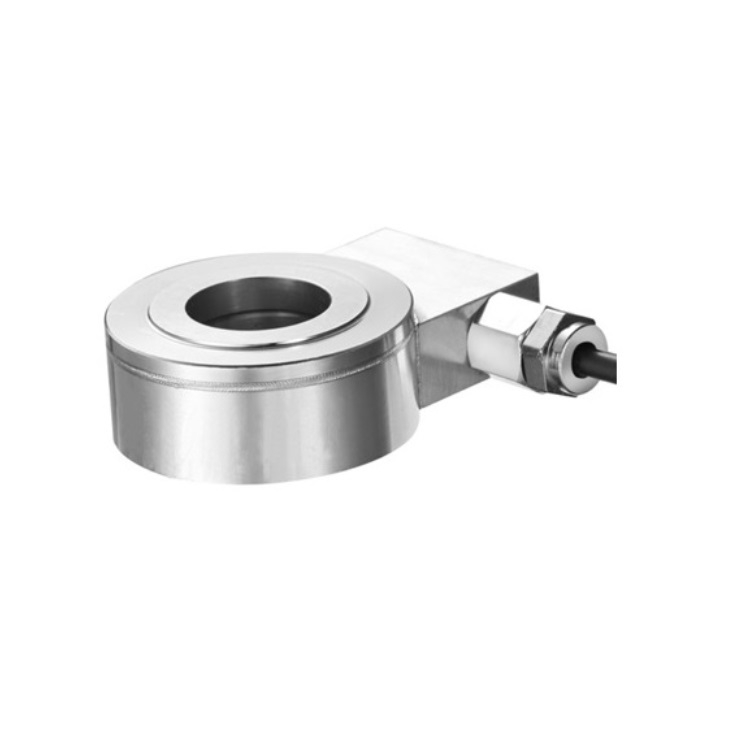

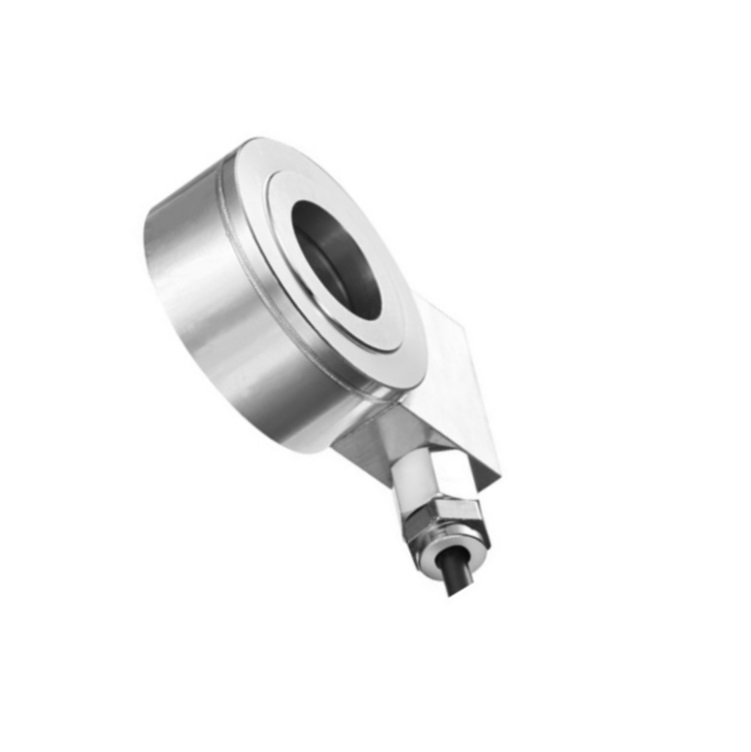

LC6004
SAINTBOND
Features:
◎Thru hole structure;
◎Stainless steel, low deflection;
◎Metal foil strain gauge technology;
◎Compression only;
◎Press-in force measurement;
◎Propeller shafts and the measurement of bolt forces;
◎Post or leg mount;
◎Industrial auto machine and system, such as testing machine, rolling mill system etc;
◎Clamping force, press-in force measurement;
◎Overload detecting;
◎Axial force measurement for shaft pins, axle pins.;

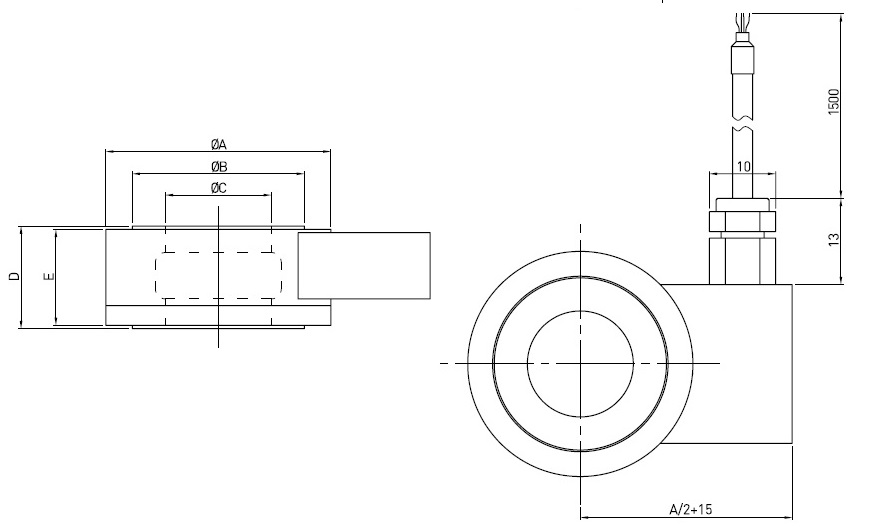

Dimension:
Size(mm) /Cap.(t) | A | B | C | D | E | Material | Weight |
0.3/0.5/1/2t | 34 | 24 | 16 | 15 | 14 | Stainless steel | 0.1kg |
5/10/15/20t | 69 | 54 | 32 | 50 | 49 | 1.1kg | |
10/20/30/45t | 95 | 78 | 50 | 50 | 49 | 1.9kg |
Specification:
Capacity: | 0.3/0.5/1/2/5/10/15/20/10/20/30/45t | ||
Rated Output: | 2.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
Creep After 30 Minutes: | ±0.05% of rated output | Safe Overload: | 1.5 |
Nonlinearity: | ±0.05% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
Repeatability: | ±0.05% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
Temp. Effect On Output: | ≤0.05% of applied output/ºC | Rated Excitation: | 5V DC/AC |
Temp. Effect On Zero: | ≤0.05% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
| Product name | LC6004 Bolt Fastening Clamping Load Cell BoltSafe Bolt Compression Load Cell 0.3/0.5/1/2/5/10/15/20/10/20/30/45t |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
