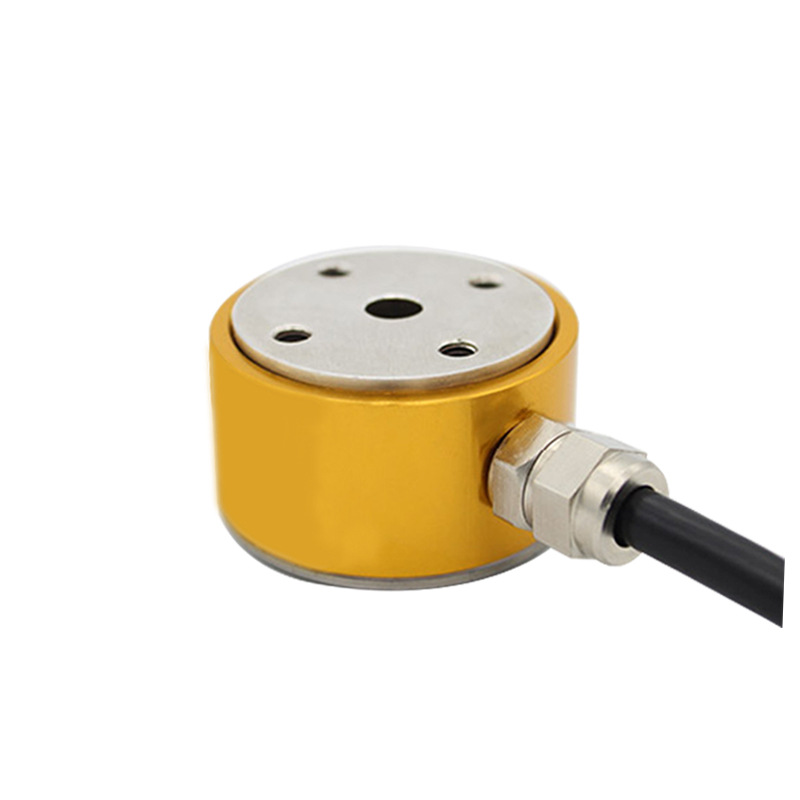

LC5998
SAINTBOND
Dimension:
Description:
Compact size, high accuracy, fast response, flat mounting, overload protection function. The total height is 25 mm, which is used in the field of small force measurement.
Technical Data:
Capacity | 10/20/50/100 /200/500kg | Material | Stainless Steel |
Rated output | 2.0 ±0.2mV/V | Output Impedance | 350±5Ω |
Non-linearity | 0.1 % F.S. | Insulation | >5000MΩ/10VDC |
Hysteresis | 0.1 % F.S. | Recommended Excitation | 2-10V |
Repeatability | 0.1% F.S. | Excitation max | 15V |
Creep(30min) | 0.05 % F.S. | Compensated Temp Range | -10~60℃ |
Temp Effect On Output | 0.05 % F.S./10℃ | Operating Temp Range | -20~80℃ |
Temp Effect On Zero | 0.05 % F.S./10℃ | Safe Load | 5 |
Protection Class | IP 65 | Ultimate Load Limit | 6 |
Input Impedance | 350±20Ω | Cable Length | ∅3x3m |
| Product name | LC5998 Mini Load Cell Sensor Miniature Column Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
