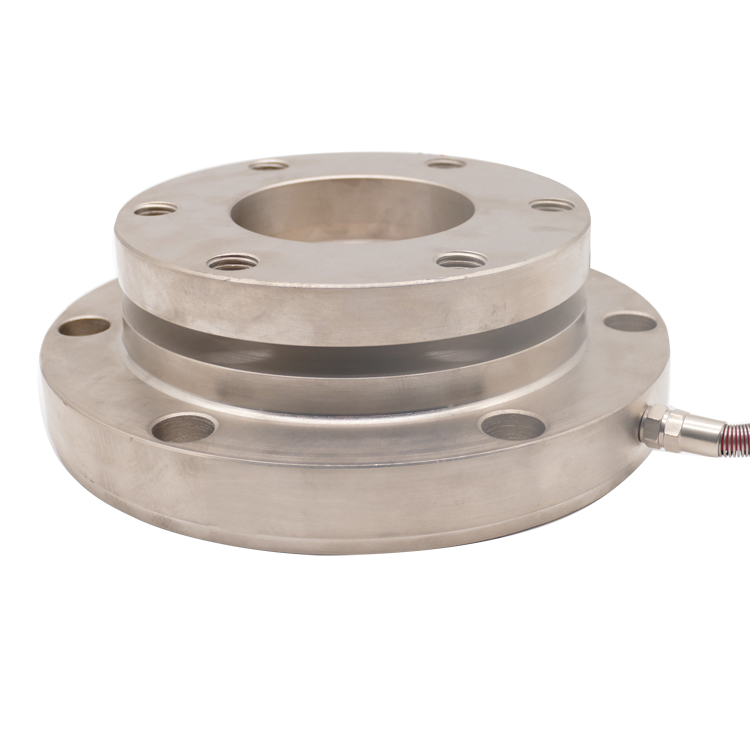

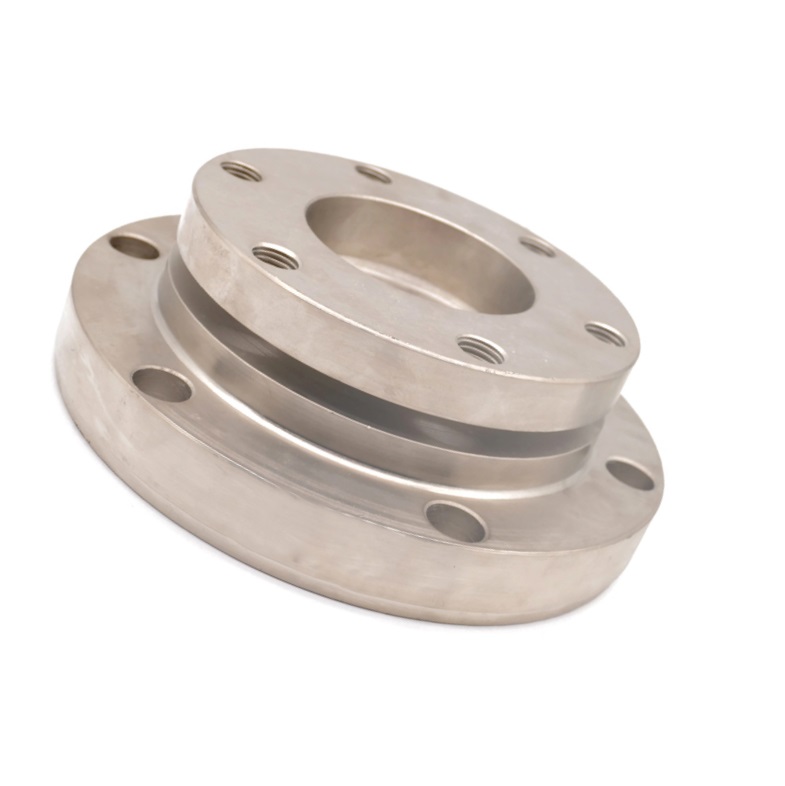

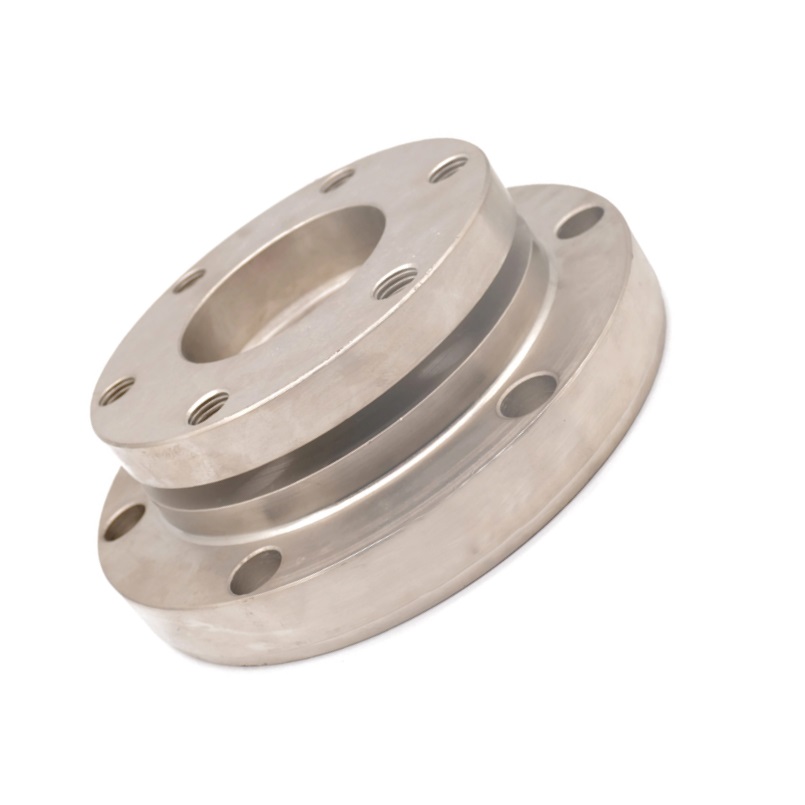

LC549
SAINTBOND
Application:
◎Ladle turret scales;
◎Ladle ferries;
◎ Scrap bucket, roller table, weighing and tundish scales;
◎Train scales;
◎Silo-, hopper and furnace scales;
Function:
◎Simple and economical installation through direct screwing to the connecting structure without movable parts;
◎Virtually impervious to shock loads and side forces;
◎Minimal measurement value reaction on high interferential forces and moments;
◎Suitable to the construction of service free scales in severe environments;
◎High overload capability;
◎High degree of repeatability;
◎High long-term stability;

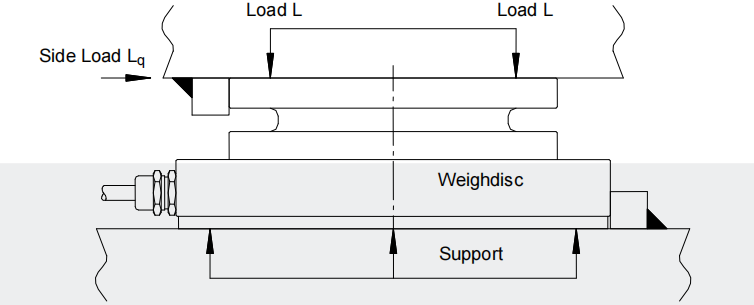

Operating Principle:

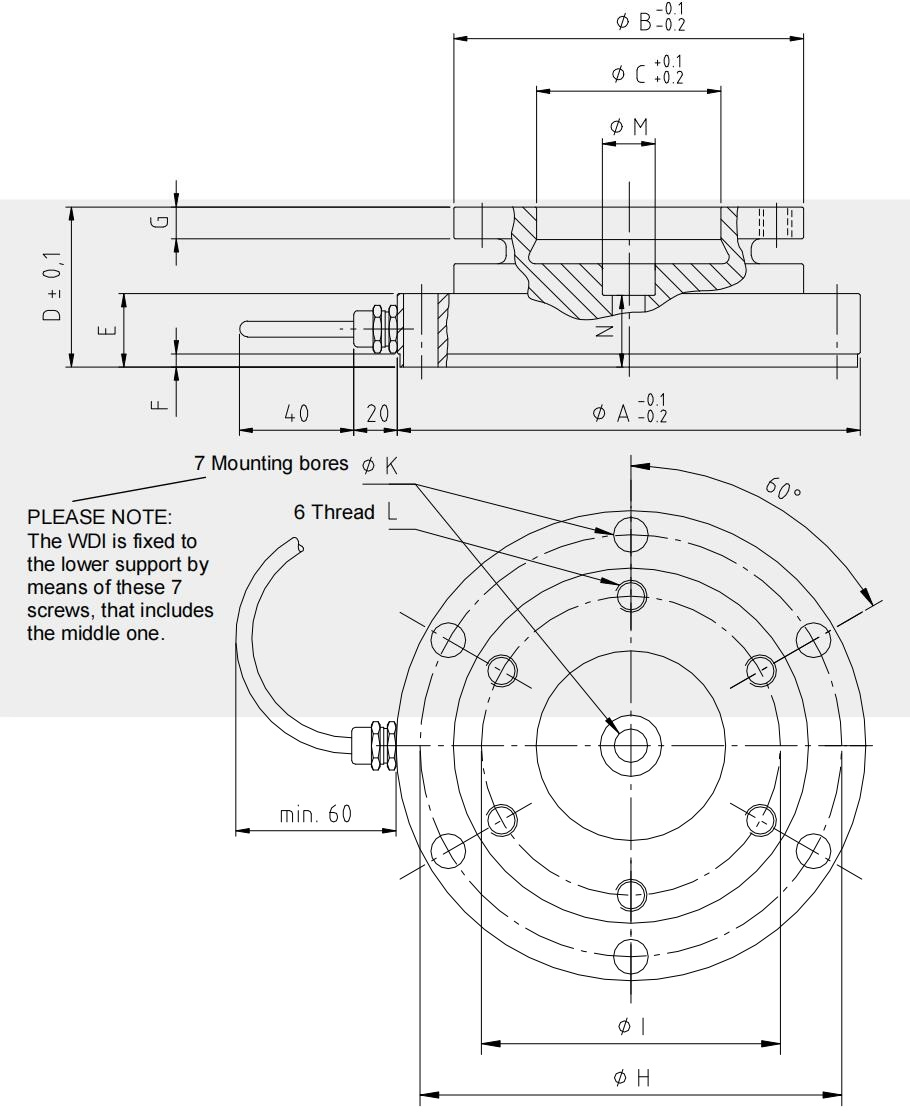

Mounting Dimensions:
Cap. | A | B | C | D | E | F | G | H | I | K | L | M | N |
(ton) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
25/50t | 192 | 136 | 70 | 65 | 28 | 5 | 16 | 168 | 115 | 17.5 | M16 | 26 | 24 |
100t | 265 | 195 | 100 | 88 | 36 | 8 | 23 | 234 | 164 | 22 | M20 | 32 | 32 |
200t | 350 | 263 | 140 | 120 | 54 | 8 | 25 | 310 | 220 | 26 | M24 | 38 | 53.5 |
Product name | LC549 Truck Scale Load Cell Bolt Safe Sensors Weighdisc Load Cell |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
