LC537
SAINTBOND
Description:

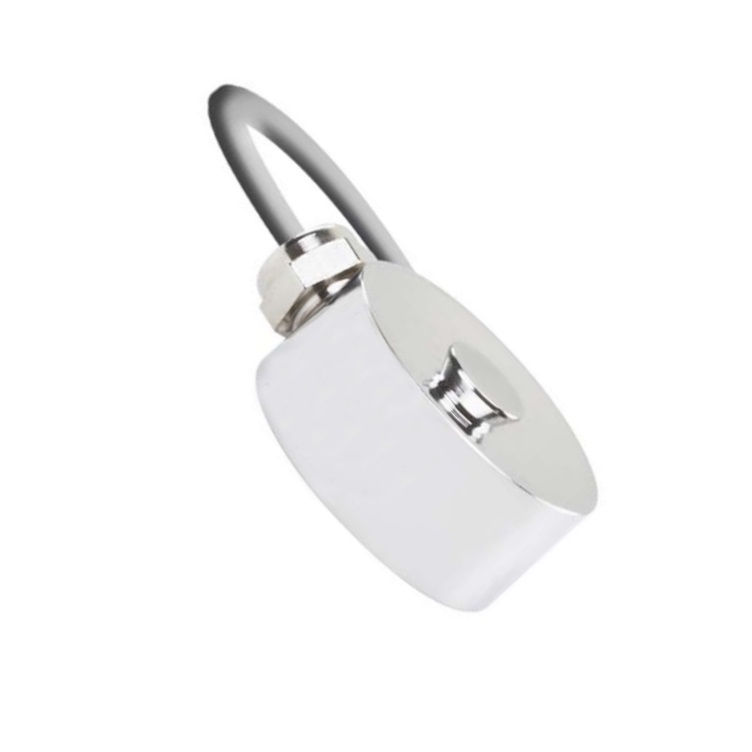

◎Compact design compressive force transducer;
◎Nominal (rated) forces 50N to 50kN;
◎Configurable with different cable length on request;
◎Made of stainless steel materials;
◎High rigidity,particularly suited for dynamic measurement tasks;
Principle of the C9C force transducer:
Dimension:
Cap. | A-0.1 | B | G+/-0.1 | H | J | R | T | U-0.1 | X | Y |
50~200N | 26 | 15 | 20.5 | 3×M3 | 6 | 20 | 2.5 | 5.5 | 10.5 | 5.5 |
0.5~20kN | 26 | 13 | 22.75 | 3×M2 | 3.5 | 40 | 1 | 8 | 10.5 | 5.5 |
50kN | 46 | 28 | 40 | 4×M4 | 6 | 80 | 8 | 16 | 10.5 | 5.5 |
Technical Parameter:
Rated Load: | 50N~50kN | ||
Sensitivity: | (1.0±1%) mV/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.3% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.5% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.5% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 350±5Ω | Element Material: | Alloy /Stainless Steel |
Output Resistance: | 350±5Ω | Cable: | Length=L:3m |
Insulation Resistance: | ≥5000MΩ | Citation: | 50~200N:50g; 0.5~20kN:65g; 50kN:260g; |
| Product name | LC547 Spoke Type Round Transducer Force Sensor HBM C9C Force Transducer |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
Description:
◎Compact design compressive force transducer;
◎Nominal (rated) forces 50N to 50kN;
◎Configurable with different cable length on request;
◎Made of stainless steel materials;
◎High rigidity,particularly suited for dynamic measurement tasks;
Principle of the C9C force transducer:
Dimension:
Cap. | A-0.1 | B | G+/-0.1 | H | J | R | T | U-0.1 | X | Y |
50~200N | 26 | 15 | 20.5 | 3×M3 | 6 | 20 | 2.5 | 5.5 | 10.5 | 5.5 |
0.5~20kN | 26 | 13 | 22.75 | 3×M2 | 3.5 | 40 | 1 | 8 | 10.5 | 5.5 |
50kN | 46 | 28 | 40 | 4×M4 | 6 | 80 | 8 | 16 | 10.5 | 5.5 |
Technical Parameter:
Rated Load: | 50N~50kN | ||
Sensitivity: | (1.0±1%) mV/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.3% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.5% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.5% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 350±5Ω | Element Material: | Alloy /Stainless Steel |
Output Resistance: | 350±5Ω | Cable: | Length=L:3m |
Insulation Resistance: | ≥5000MΩ | Citation: | 50~200N:50g; 0.5~20kN:65g; 50kN:260g; |
| Product name | LC547 Spoke Type Round Transducer Force Sensor HBM C9C Force Transducer |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
