LC5411
SAINTBOND

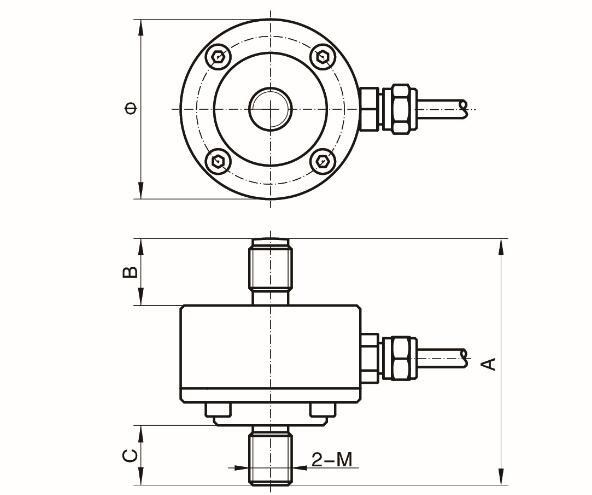

Dimension:
Kg | A | B | C | Φ | M |
10~50 | 37.5 | 12 | 11.5 | 26 | M5 |
50~1000 | 70 | 19 | 17 | 51 | M12 |
2000 | 75 | 19 | 17 | 51 | M12 |
Description:
SAINTBOND Miniature compression load cells are made of SAINTBOND’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LC4012 start from 100kg to 1000kg.The measuring accuracy is 0.05%R.O. (R.O.=Rated Output).) Manufactured from high quality stainless steel of aviation standard.
LC4012 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
Features:
◎Tension and Compression load cells
◎Capacity:100kg,...,1000kg
◎Accuracy:0.05%R.O.
◎Super micro structure
◎Stainless steel construction
◎Environment protection class:IP65
Applications:
◎Flat mounting weighing systems,
◎Force measuring in a narrow space.
Technical Data:
Model | LC5411 | Excitation,Recommended | ≤6VDC |
Rated Capacity | 100/200/300/500/1000kg | Operating Temp.Range | -10－+40℃ |
Accuracy Class | X | Safe Overload | 120%R.C. |
Rated Output | 2.0±0.5%mV/V | Insulation Resistance | ≥2000MΩ(50VDC) |
Zero Balance | ±0.1 mV/V | Cable,Length | ø3mm×2m |
Input Resistance | 350±10Ω | Hysteresis Error | ±0.05%R.O. |
Output Resistance | 350±10Ω | Creep in 2 Min. | ±0.05%R.O. |
Linearlty Error | ±0.05%R.O. | Temp.Effect on Output | ±0.05%R.O./10℃ |
Repeatability Error | ±0.05%R.O. | Temp.Effect on Zero | ±0.05%R.O./10℃ |

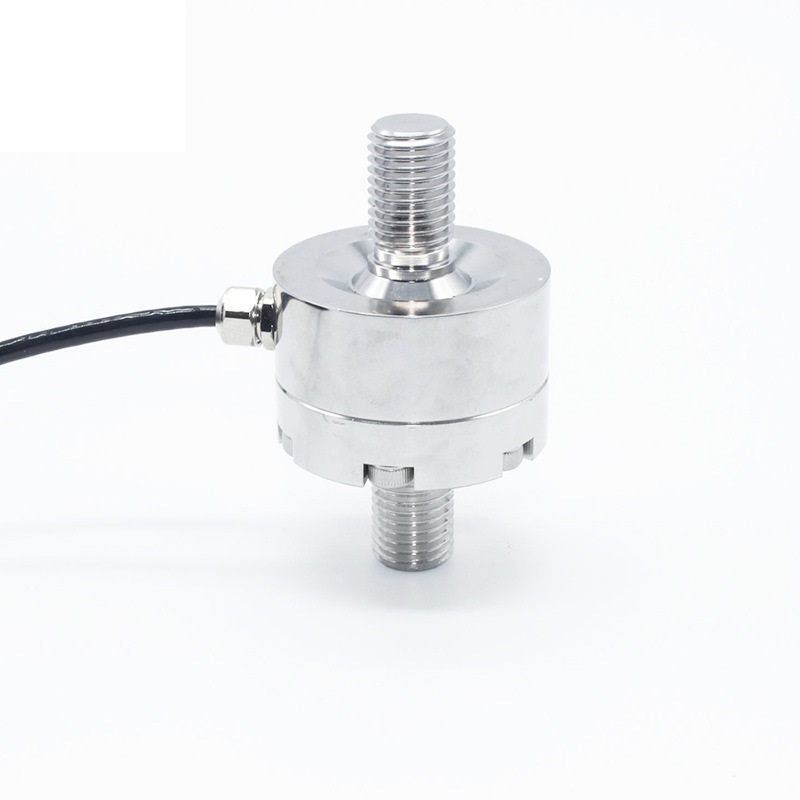

| Product name | LC5411 Threaded Rod Miniature Load Cell Compression And Tension Force Transducer |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
