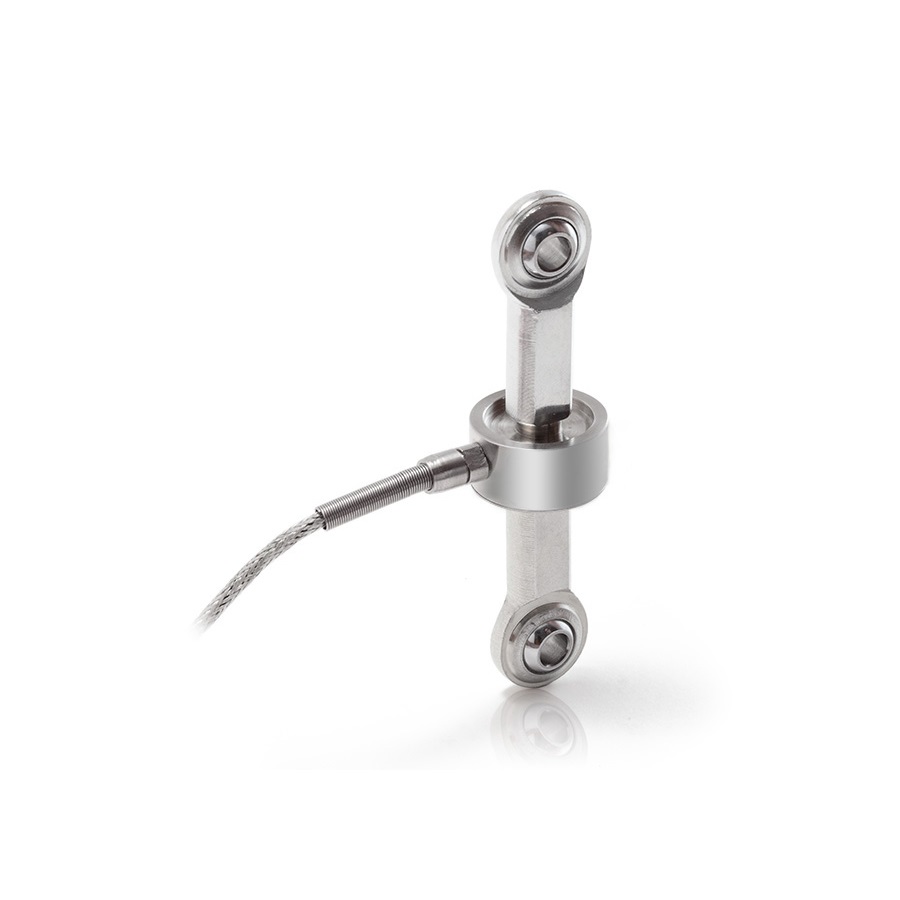

LC5407
SAINTBOND
Features:
◎Minimal mounting clearance;
◎17-4 PH stainless-steel construction;
◎For use in both tension and compression;
◎Accessories and related instruments available;
Dimension:Inches(mm)
Type | Capacity | Natural Frequency | |
lb | N | (kHz) | |
LC5407 | 50 | 223 | 7.5 |
100 | 445 | 10.2 | |
250 | 1112 | 16.2 | |
500 | 2224 | 22.9 | |
1000 | 4448 | 30.1 | |
Technical Parameter:
Rated Capacity | 50/100/250/500/1000lb | Excitation,: | 5~12VDC(10VDC) |
Rated Output | 2.0±0.5%mV/V | Operating Temp.Range: | -10－+40℃ |
Zero Balance | ≤±0.1 mV/V | Safe Overload: | 120%R.C. |
Input Resistance | 350±30Ω | Insulation Resistance: | ≥500MΩ(50VDC) |
Output Resistance | 350±2Ω | Hysteresis Error: | ±0.25%R.O. |
Linearity Error | ±0.25%R.O. | Temp.Effect on Output: | ±0.05%R.O./10℃ |
Repeatability Error | ±0.1%R.O. | Temp.Effect on Zero: | ±0.05%R.O./10℃ |
Element Material: | 17-4 PH Stainless Steel | Calibration (standard): | Tension; |
Calibration (available): | Compression; |
| Product name | LC5407 Inline Tension Link Load Cell Miniature Threaded In Line Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
