LC5403
SAINTBOND
Features:
◎Miniature size;
◎Fast response and low deflection;
◎Robust cable strain relief;
◎For use in both tension and compression;

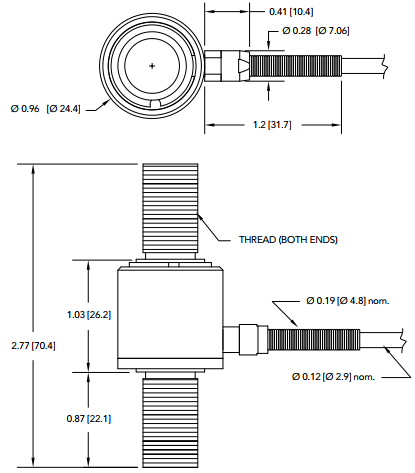

Dimension:Inches(mm)
Type | Capacity | Thread | Natural Frequency | |
klb | kN | (kHz) | ||
LC5403 | 4 | 17.8 | 3/4-16 | 14.5 |
4 | 17.8 | M12x1.75 | 14.5 | |
5 | 22.2 | 3/4-16 | 14.5 | |
5 | 22.2 | M12x1.75 | 14.5 | |
Technical Parameter:
Rated Capacity | 4/5klb 17.8/22.2kN | Excitation,: | 5~12VDC(10VDC) |
Rated Output | 1.6mV/V(4klb) 2mV/V(5klb) | Operating Temp.Range: | -10－+40℃ |
Zero Balance | ≤±0.1 mV/V | Safe Overload: | 150%R.C. |
Input Resistance | 350±30Ω | Insulation Resistance: | ≥500MΩ(50VDC) |
Output Resistance | 350±2Ω | Hysteresis Error: | ±0.2%R.O. |
Linearity Error | ±0.25%R.O. | Temp.Effect on Output: | ±0.05%R.O./10℃ |
Repeatability Error | ±0.2%R.O. | Temp.Effect on Zero: | ±0.05%R.O./10℃ |
Element Material: | 17-4 PH Stainless Steel | Calibration (standard): | Tension; |
Calibration (available): | Compression; |

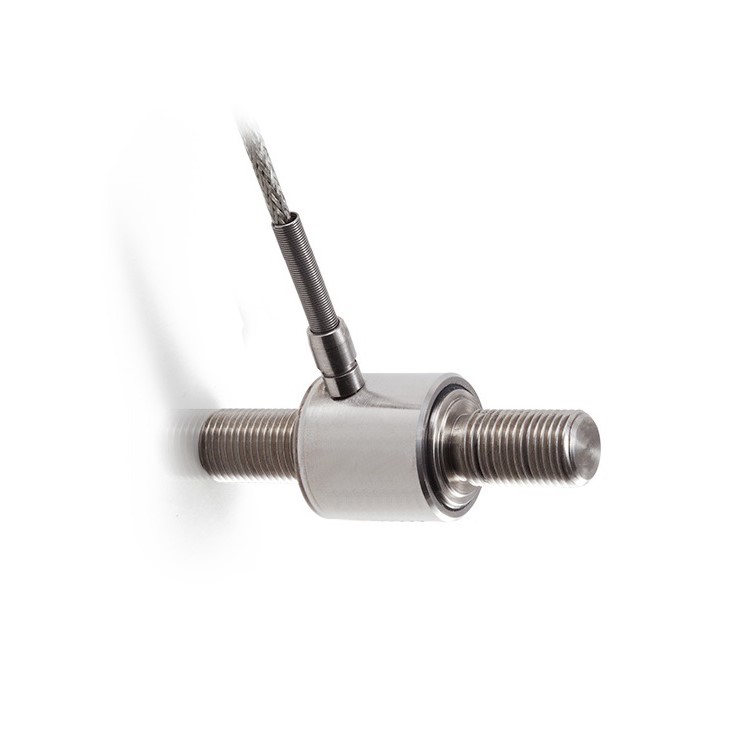

| Product name | LC5403 In Line Threaded Rod Load Cell Miniature Threaded In Line Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
