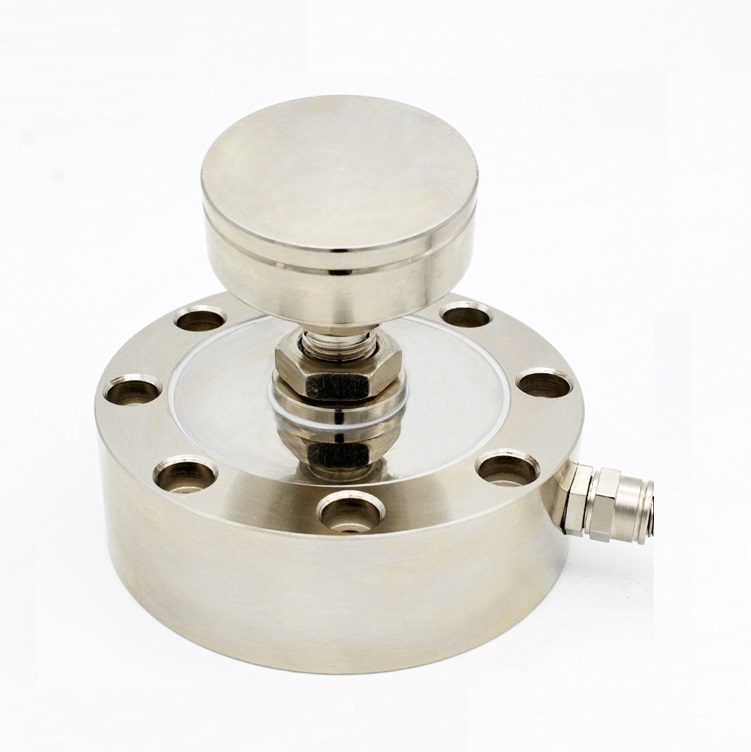

LC526
SAINTBOND

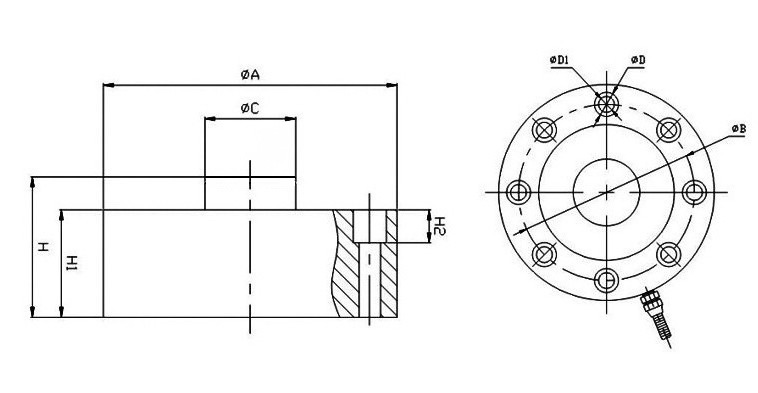

Dimension:
Cap. | A | B | C | D | D1 | H | H1 | H2 | M |
0.2~0.7t | 74 | 63 | 24 | 9 | 6 | 34 | 30 | 7.2 | M16×1.5 |
1~5t | 105 | 89 | 32 | 11 | 7 | 37 | 34 | 7.2 | M16×1.5 |
10~20t | 120.6 | 101.8 | 39 | 14 | 9 | 53.5 | 41 | 10.5 | M32×1.5 |
30t | 141 | 116.8 | 50.4 | 18 | 11 | 57.2 | 50.8 | 11 | M40×1.5 |

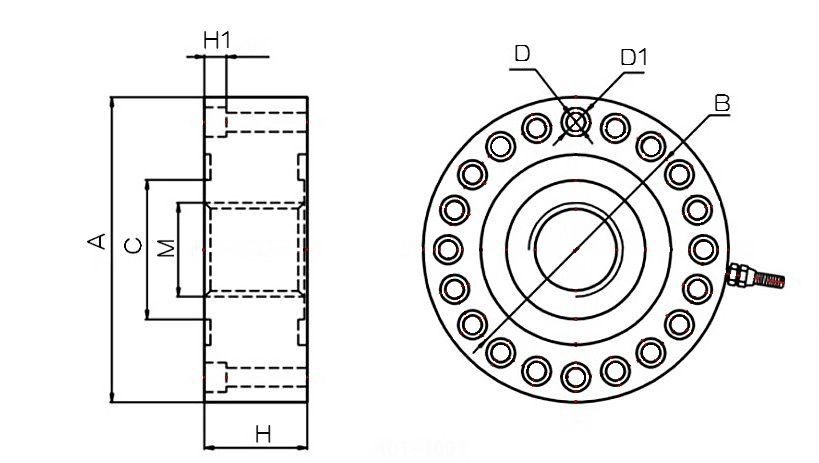

Cap. | A | B | C | D | D1 | H | H1 | M |
40~80t | 208 | 174 | 95 | 20 | 13 | 70 | 15 | M40×1.5 |
100~250t | 280 | 230 | 120 | 30 | 17 | 57.2 | 50.8 | M64×3 |
300~450t | 360 | 300 | 190 | 40 | 25 | 110 | 20 | M100×3 |
Technical Parameter:
Rated Load: | 0.2/0.7/1/3/5/10/20/30//40/50/80/100/250/300/450t | ||
Sensitivity: | (2.0±0.1%)) mV/V | Operating Temp.Range: | -30~+70℃ |
Combined Error: | ±0.03%F.S | Maximum Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 750±5Ω | Element Material: | Alloy/Stainless Steel |
Output Resistance: | 701±2Ω | Cable: | 13m(0.2~30t),16m(40~450t) |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) | ||

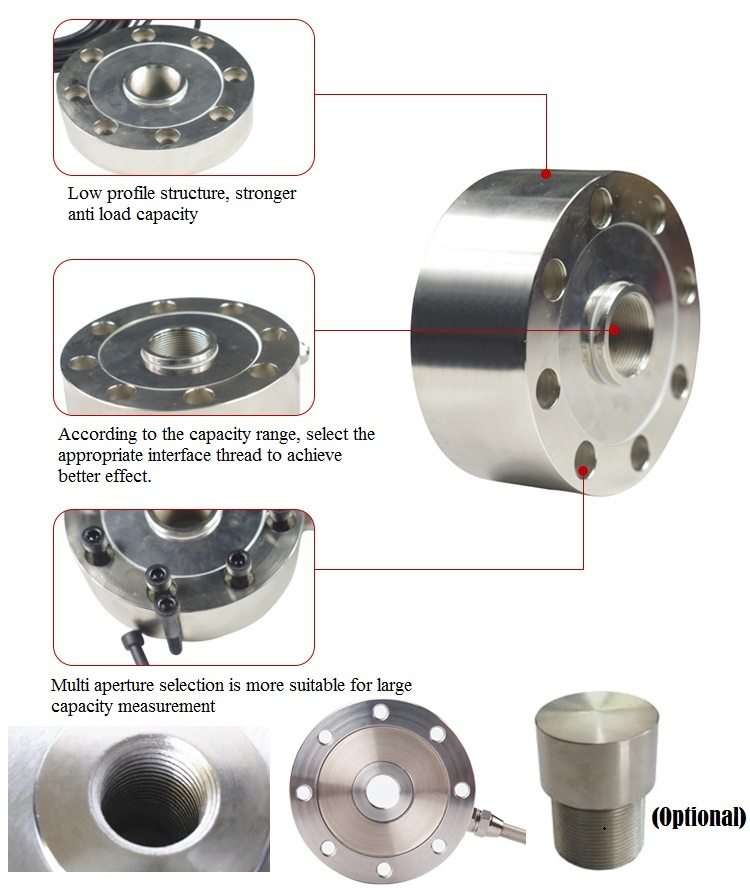

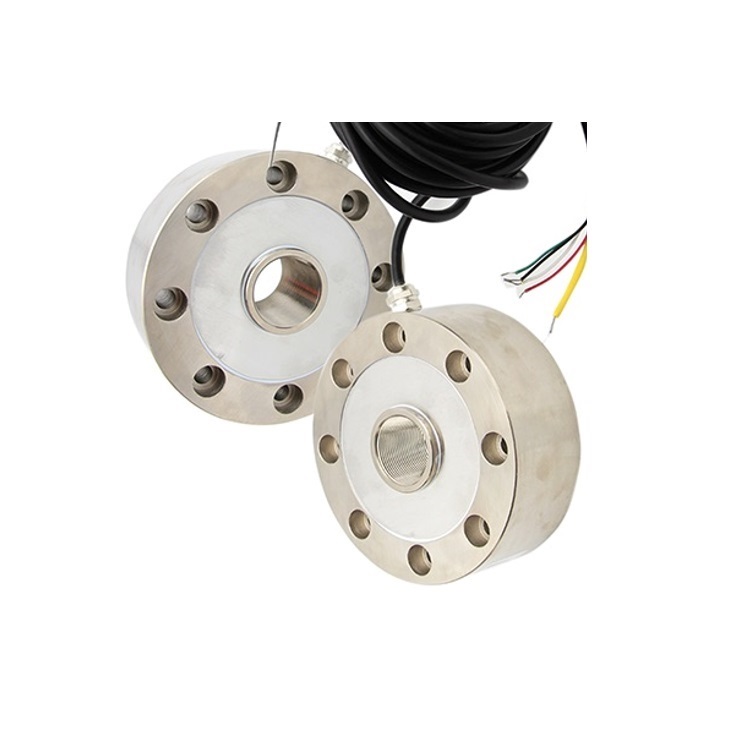

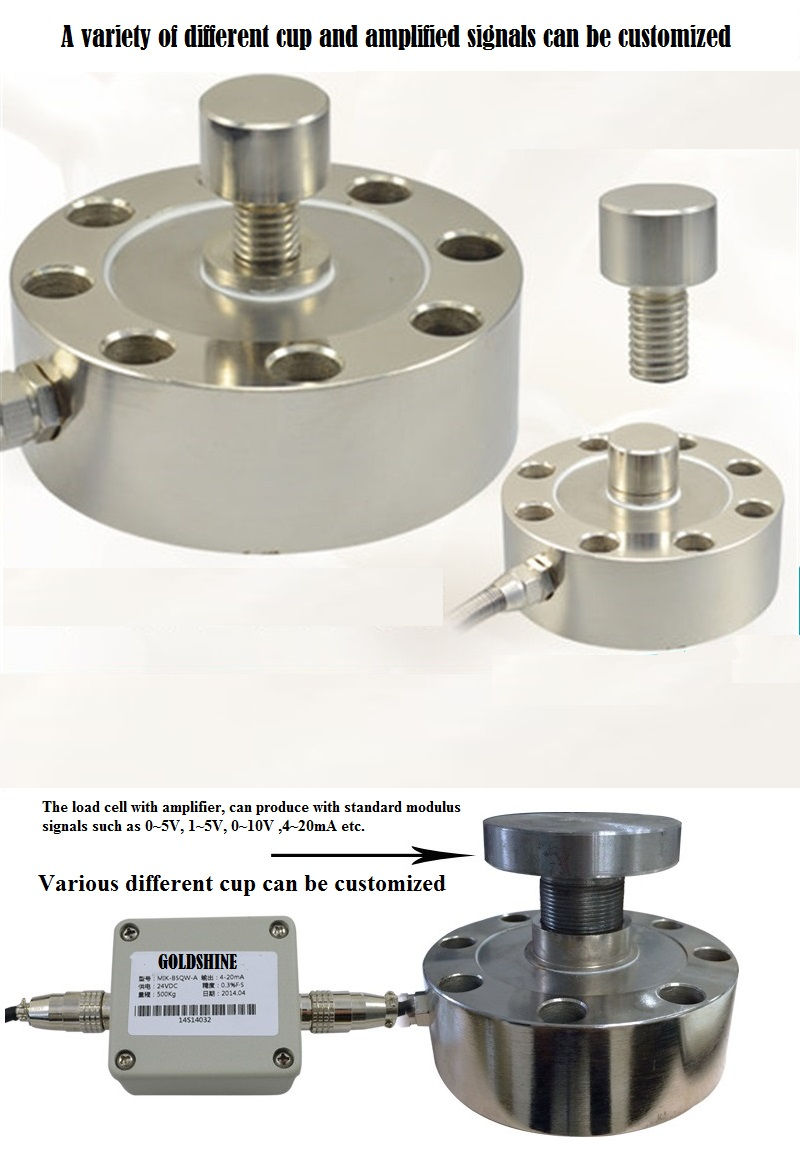

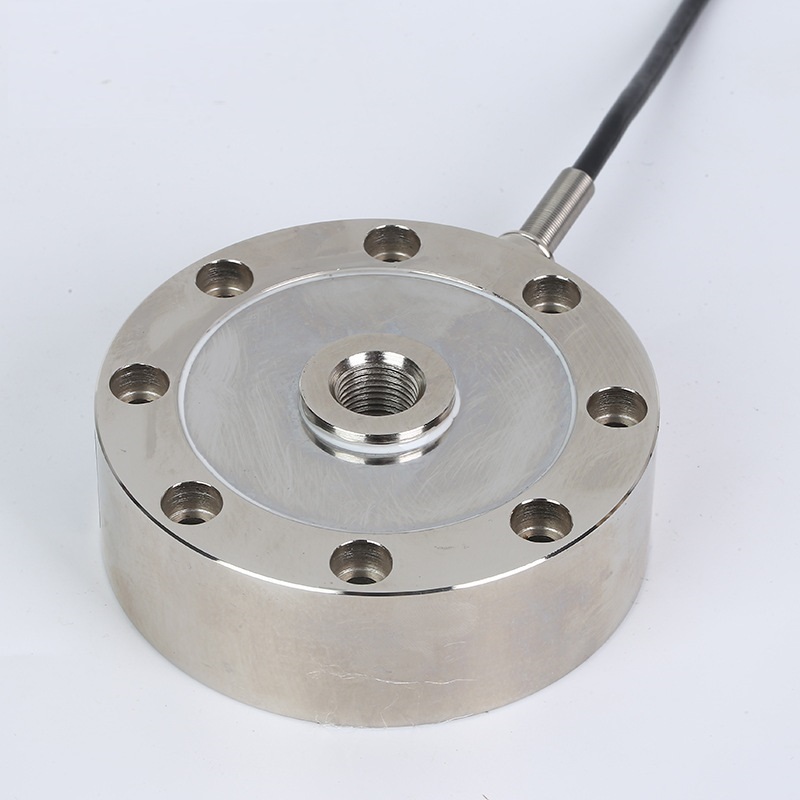

| Product name | LC526 Weight Pancake Mini Load Cell Universal Pancake Load Cell for Truck Scale |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
