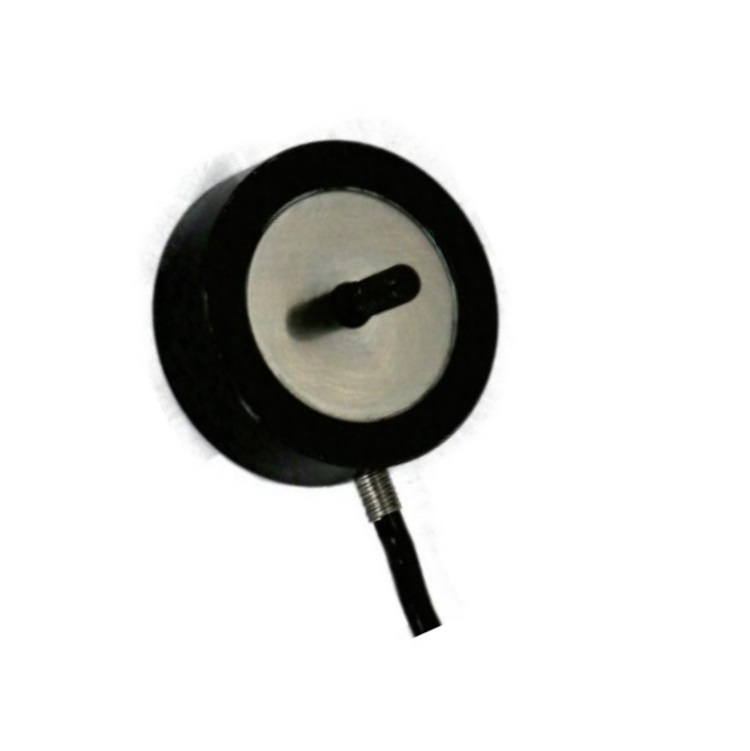

LC5205
SAINTBOND
Dimension:
Description:
It has the characteristics of high accuracy, high dynamic response and small volume, and small eccentricity error. It can be used in the fields of keystroke hand sensitivity tester, cold and hot pressing film detection, manipulator grip, medical devices and so on.
Technical Data:
Rated Capacity | 3~50kg | Excitation,Recommended | 5~12VDC(10VDC) |
Sensitivity | 1.0～1.5mV/V | Operating Temp.Range | -10－+40℃ |
Zero Balance | ≤±0.1 mV/V | Safe Overload | 120%R.C. |
Rated Output | 2.0±0.5%mV/V | Insulation Resistance | ≥2000MΩ(50VDC) |
Input Resistance | 380±30Ω/730±30Ω | Hysteresis Error | ±0.05%R.O. |
Output Resistance | 350±2Ω/700±2Ω | Creep in 2 Min. | ±0.05%R.O. |
Linearlty Error | ±0.05%R.O. | Temp.Effect on Output | ±0.05%R.O./10℃ |
Repeatability Error | ±0.05%R.O. | Temp.Effect on Zero | ±0.05%R.O./10℃ |
| Product name | LC5205 Mini Compression Button Type Load Cell Sensor 3 To 50KG |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
