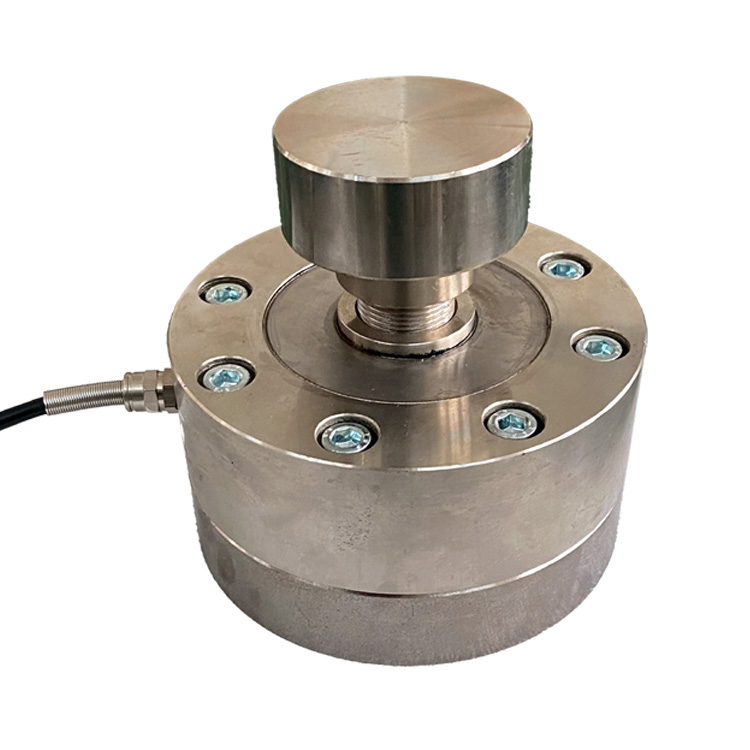

LC519 Stainless Steel Spoke Type Load Cell Low-profile Compression Load Cell

Availability:
Quantity:
  • LC519
  • SAINTBOND

Load Cell

LC519-1

Dimensions: Unit: inchees

LC519

Capacity(klb)

5/10klb

25/50klb

100klb

A

0.283

0.343

0.406

B

0.406

0.508

0.626

C

0.3

0.4

0.4

D

3.5

4.0

4.6

E

1.30

1.60

2.00

F

0.626

0.876

0.876

G

1.75

2.12

2.25

H

1.25

1.87

2.00

I

0.75

0.94

1.14

J

4.12

4.75

5.50

K

1/2-20

3/4-16

1.25-12

L

1/2-20

3/4-16

1.25-12

M

1.337

1.541

1.886

N

0.820

0.811

1.200

O

0.0404

0.0404

0.0404



Technical Parameter:

Rated Load:

5/10/25/50/100klb

Operating Temp. Range

-30~+70℃

Sensitivity:

(2.0±0.1%) mV/V

Maximum Safe Over Load:

150%F.S

Combined Error:

±0.02% F.S

Ultimate Over Load:

300%F.S

Creep Error(30min):

±0.02% F.S

Recommend Excitation:

10~12V DC

Zero Balance:

±1% F.S

Maximum Excitation:

15V DC

Temp. Effect On Zero:

±0.02% F.S/10℃

Sealing Class:

IP67/IP68

Temp. Effect On Span:

±0.02% F.S/10℃

Element Material:

Alloy /Stainless Steel

Input Resistance:

385±30Ω/775±5Ω

Cable:

Length=L:13m

Output Resistance:

350±4Ω/702±2Ω

Citation:

GB/T7551-2008/ OIML R60

Insulation Resistance:

≥5000MΩ

Mode Of Connection:

Red(Input+),Green(Output+),

Black(Input-),White(Output-)
