LC511
SAINTBOND
Features & Applications:
◎The sensor adopts the flat diaphragm pressure sensing diaphragm, shell and diaphragm integrated structure, small size, stable and reliable performance;
◎Industrial automation measurement and control system is suitable for various kinds of weighing and force measurement;
◎Weighing, instantaneous measurement, impact force, high-speed response sensor, pressure measurement use;

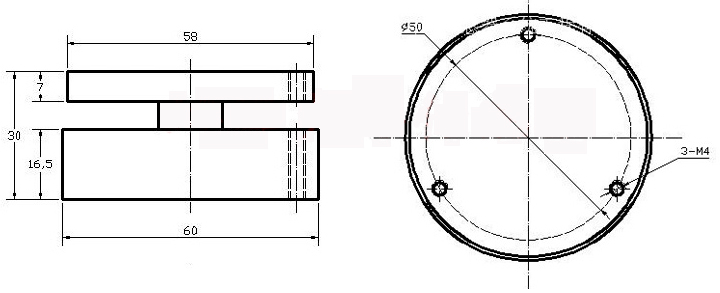

Dimension:
Technical Parameter:
Capacity: | 10kg～3000kg |
Rated output: | 1.0~2.0±0.05mV/V |
Non-linearity: | ≤±0.3%F·S |
Hysteresis: | ≤±0.3%F·S |
Repeatability: | ≤±0.3%F·S |
Creep(30min): | ≤±0.1%F·S |
Zero balance: | ≤±1%F·S |
Temperature effect on zero: | ≤±0.1%F·S/10℃ |
Temperature effect on output: | ≤±0.1%F·S/10℃ |
Operation temperature range: | -20℃～+80℃ |
Input impedance: | 350±50Ω |
Output impedance: | 350±5Ω |
Safe overload: | ≤150%F·S |
Insulation: | ≥2000MΩ(50VDC) |
Recommended excitation: | 10V-15V |
Protection Class: | IP67 |

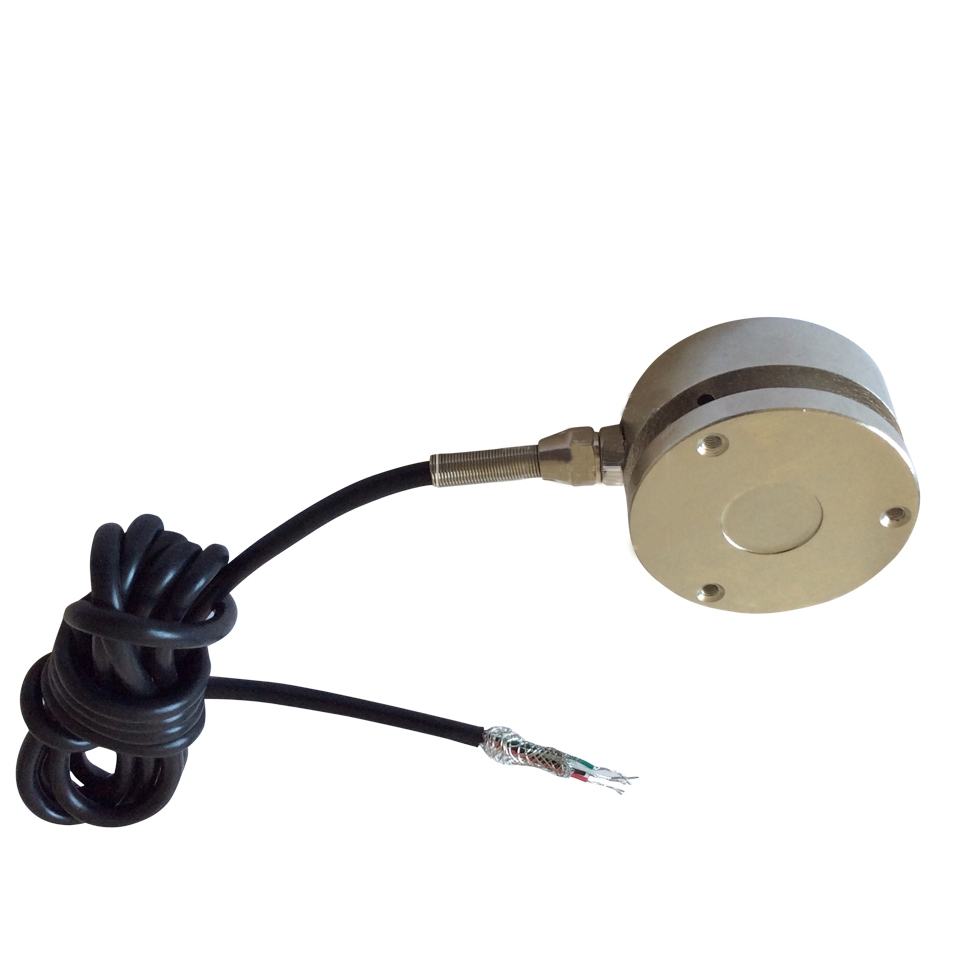

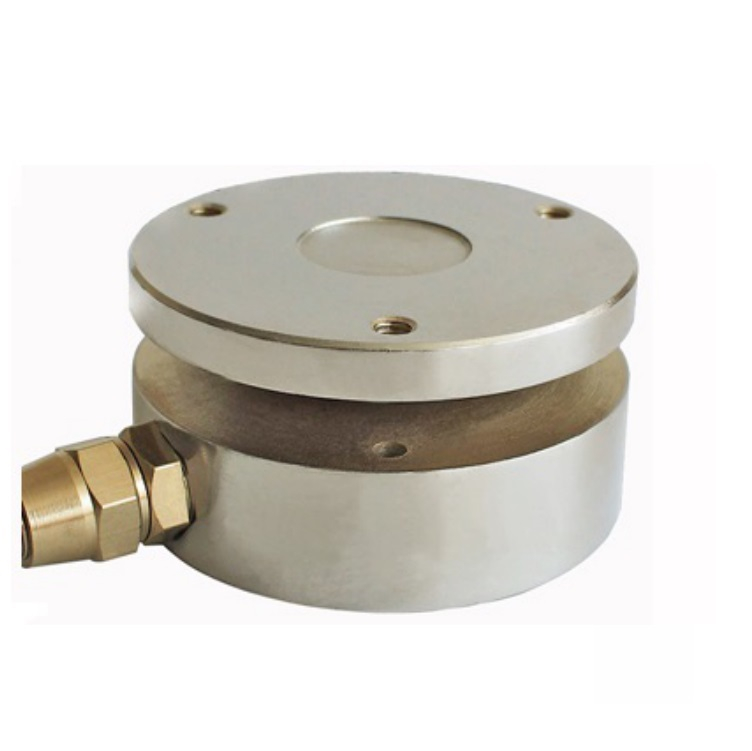

| Product name | LC511 Spoke Type Weighing Load Cell Flange Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
