LC505
SAINTBOND
Dimensions: Unit: mm
Cap./Size | D | D0 | D1 | H | H0 | H1 | H2 | M×P |
10t | Ø40 | Ø138 | Ø50 | 134.5 | 74 | 17 | 35 | 20×1.5 |
20,25t | Ø50 | Ø165 | Ø65 | 717 | 86.1 | 25 | 50 | 24×1.5 |
30t | Ø50.8 | Ø165 | Ø75 | 176 | 86.1 | 25 | 55 | 30×1.5 |
40t | Ø76.2 | Ø165 | Ø85 | 221 | 95.8 | 25 | 65 | 40×1.5 |
Technical Parameter:
Rated Load: | 10/20/25/30/40t | Operating Temp. Range: | -30~+70℃ |
Sensitivity: | (2.0±0.1%) m V/V | Max. Safe Over Load: | 150%F.S |
Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
Input Resistance: | 385±5Ω | Cable: | Length=L:13m |
Output Resistance: | 352±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |

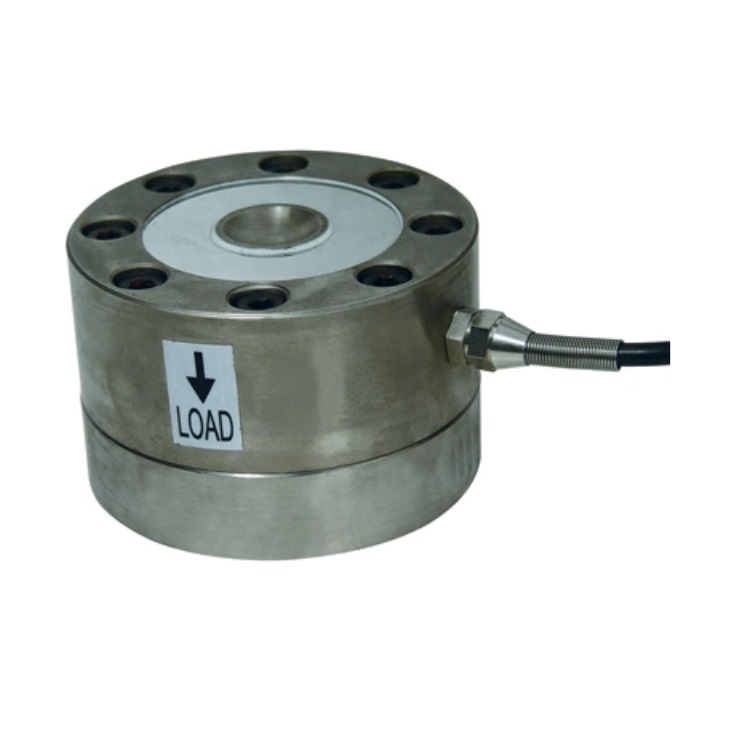

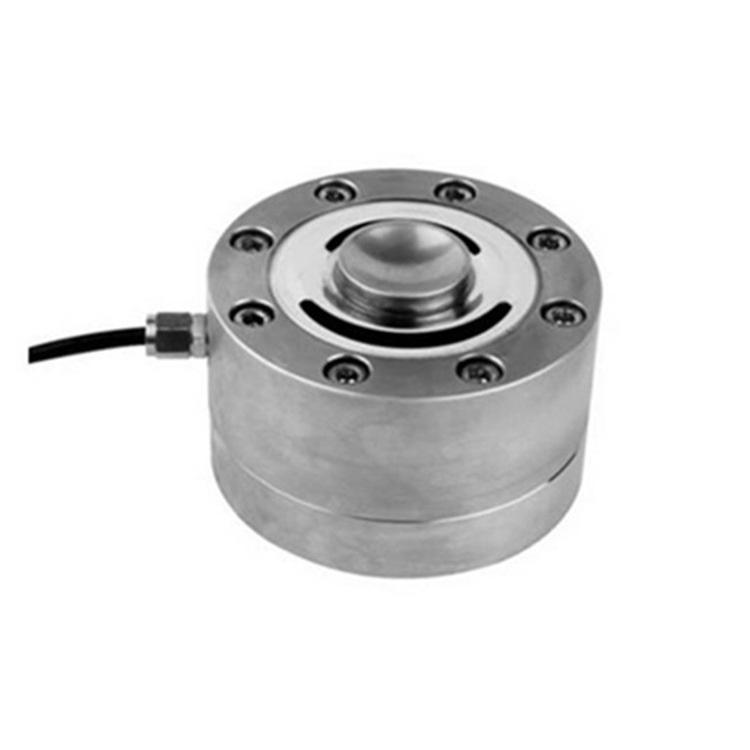

| Product name | LC505 Weighing Load Cell Sensor Spoke Type Torsional Ring Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
Dimensions: Unit: mm
Cap./Size | D | D0 | D1 | H | H0 | H1 | H2 | M×P |
10t | Ø40 | Ø138 | Ø50 | 134.5 | 74 | 17 | 35 | 20×1.5 |
20,25t | Ø50 | Ø165 | Ø65 | 717 | 86.1 | 25 | 50 | 24×1.5 |
30t | Ø50.8 | Ø165 | Ø75 | 176 | 86.1 | 25 | 55 | 30×1.5 |
40t | Ø76.2 | Ø165 | Ø85 | 221 | 95.8 | 25 | 65 | 40×1.5 |
Technical Parameter:
Rated Load: | 10/20/25/30/40t | Operating Temp. Range: | -30~+70℃ |
Sensitivity: | (2.0±0.1%) m V/V | Max. Safe Over Load: | 150%F.S |
Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
Input Resistance: | 385±5Ω | Cable: | Length=L:13m |
Output Resistance: | 352±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
| Product name | LC505 Weighing Load Cell Sensor Spoke Type Torsional Ring Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
