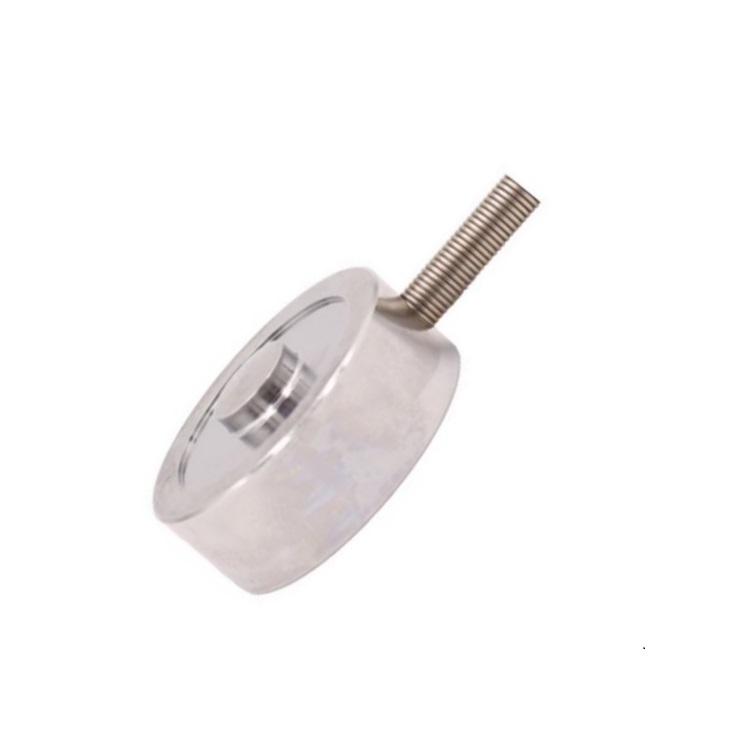

LC5016
SAINTBOND
Dimension:mm
Features:
The series subminiature load cells Load buttons are offered for compression only applications where space is limited. The matching diameter is slightly convex for accurate load distribution. These sensors are manufactured from heat treated 17-4ph stainless steel, and the sensing element incorporates bonded foil strain gages of the highest quality. They are sealed for protection against most industrial environments. They are available 50/100/200/500/1000/2000kg capacities.
Technical Data:
Capacity | 50/100/200/500/1000/2000kg | Material | Stainless Steel |
Rated output | 1.0 ±20% mV/V | Protection Class | IP65 |
Non-linearity | 0.5 % F.S. | Insulation | >5000MΩ/10VDC |
Hysteresis | 0.2 % F.S. | Recommended Excitation | 5~10V |
Repeatability | 0.2% F.S. | Excitation max | 15V |
Creep(30min) | 0.2 % F.S. | Compensated Temp Range | -10~60℃ |
Temp Effect On Output | 0.05 % F.S./10℃ | Operating Temp Range | -20~80℃ |
Temp Effect On Zero | 0.05 % F.S./10℃ | Safe Load | 1.2 |
Output Impedance | 750±30Ω | Ultimate Load Limit | 1.5 |
Input Impedance | 700±5Ω | Cable Length | ∅4 x 3m |
| Product name | LC5016 Subminiature Button Load Cell Miniature Load Button Load Cells |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
