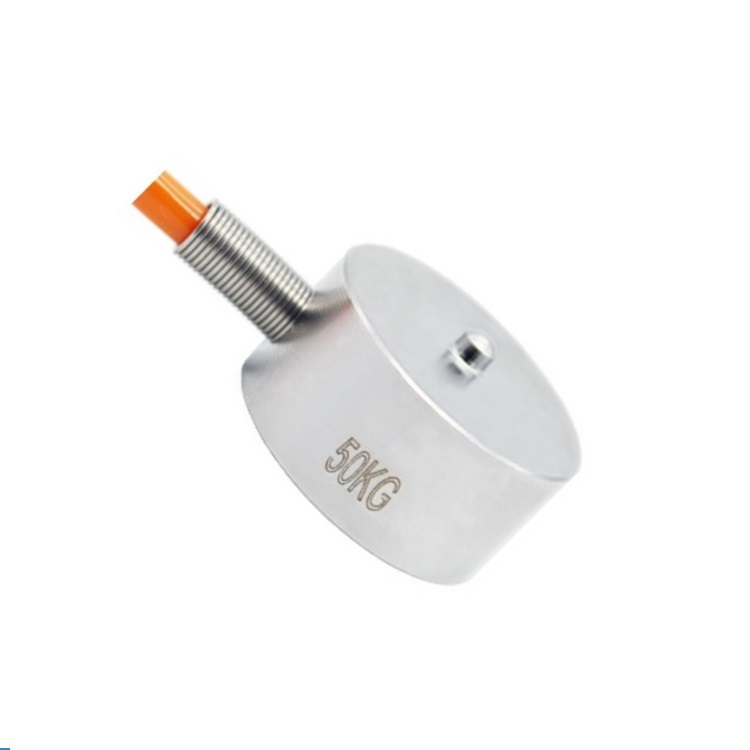

LC5013
SAINTBOND
Features:
◎High quality stainless steel material;
◎Low height,all sealed;
◎Apply to small space.;
◎Application:It is suitable for key tester, press pressure detection, robot hand grip detection and industrial automation measurement and control.

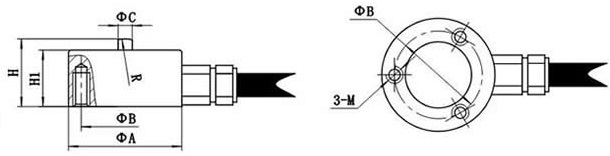

Dimension:
Capacity | ΦA | ΦB | ΦC | H | H1 | M | R |
5-200kg | 20 | 15.5 | 2.5 | 12 | 10 | M3 | 2 |
300-2000kg | 26 | 18.5 | 5 | 15 | 11.5 | M4 | 5.5 |
Specification:
Capacity: | 5kg~2000kg | Safe Temp. Range: | -10ºC to + 70ºC |
Rated Output: | 1.5～2.0mV/V | Zero Balance: | ±1% of rated output |
Creep after 30 minutes: | ≤±0.5%F.S/30min | Temp. Compensated: | -10ºC to + 40ºC |
Nonlinearity: | ≤±0.5%F.S | Safe Overload: | 150% |
Hysteresis: | ≤±0.5%F.S | Input Impedance: | 380±30Ω |
Repeatability: | ≤±0.5%F.S | Output Impedance: | 350±2Ω |
Temp. effect on output: | ≤±0.05％F.S/10℃ | Rated Excitation: | 10V DC/AC |
Temp. effect on zero: | ≤±0.05％F.S/10℃ | Maximum Excitation: | 15V DC/AC |
| Product name | LC5013 Compression Load Cell Force Sensor Micro Button Load Cell Sensors |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
