LC5011
SAINTBOND

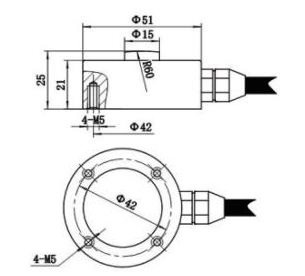

Dimension:
Description:
Stainless steel material, with high accuracy, high dynamic response, large measurement range, small size, easy installation and other characteristics; small size has a smaller eccentricity error.
Applications:
Film Pressing Machine,Testing Machine,Packaging Scale,Storage Scale and Industrial Automation Measurement and Control;
Technical Data:
Rated Capacity | 50~5000kg | Excitation,Recommended | 5~12VDC(10VDC) |
Sensitivity | 1.0～2.0mV/V | Operating Temp.Range | -10－+40℃ |
Zero Balance | ≤±0.1 mV/V | Safe Overload | 120%R.C. |
Rated Output | 2.0±0.5%mV/V | Insulation Resistance | ≥2000MΩ(50VDC) |
Input Resistance | 350±30Ω/730±30Ω | Hysteresis Error | ±0.05%R.O. |
Output Resistance | 350±2Ω/700±2Ω | Creep in 2 Min. | ±0.05%R.O. |
Linearlty Error | ±0.05%R.O. | Temp.Effect on Output | ±0.05%R.O./10℃ |
Repeatability Error | ±0.05%R.O. | Temp.Effect on Zero | ±0.05%R.O./10℃ |

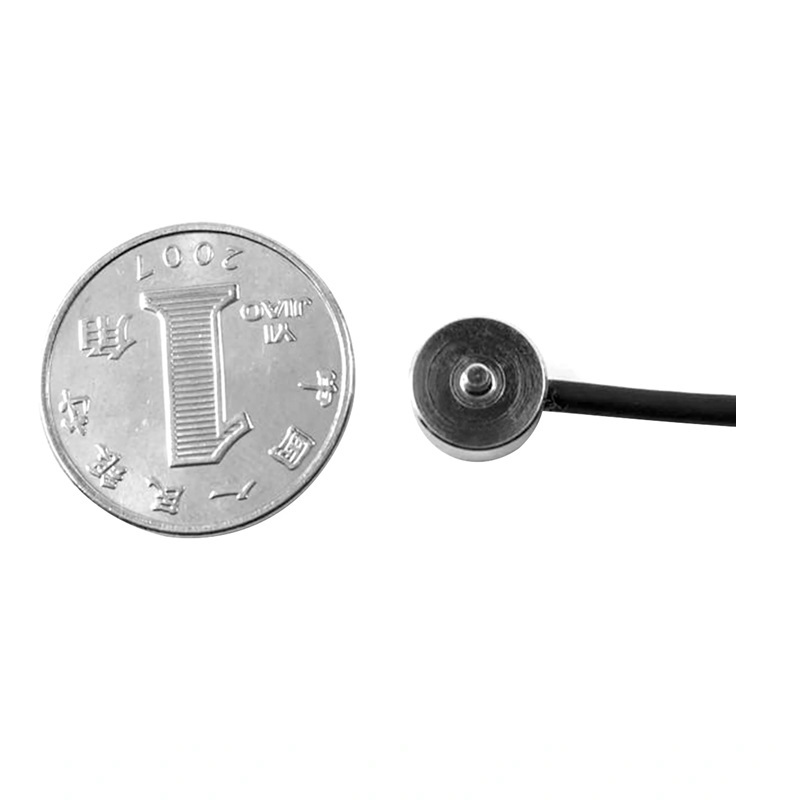

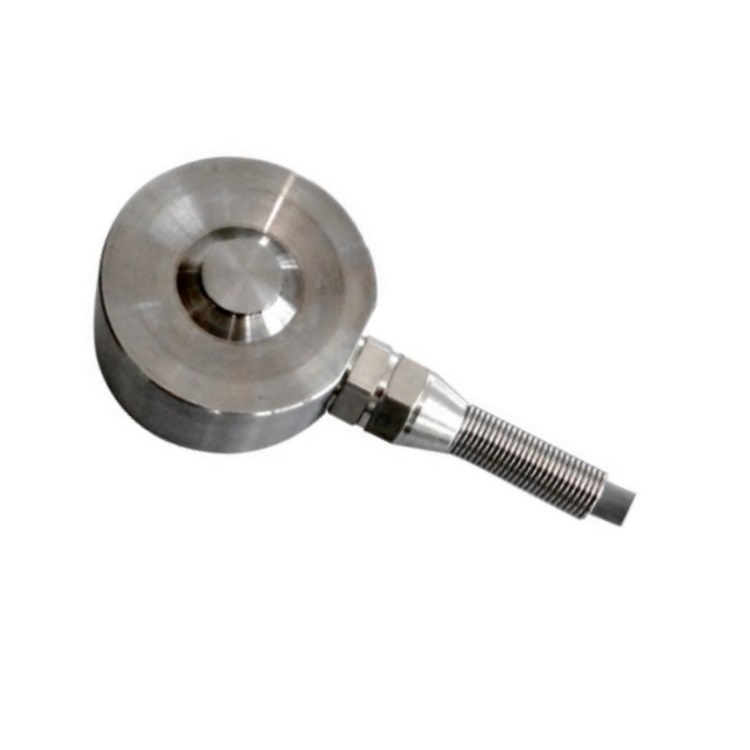

| Product name | LC5011 Compression Force Transducer Mini Compression Button Type Load Cell Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
