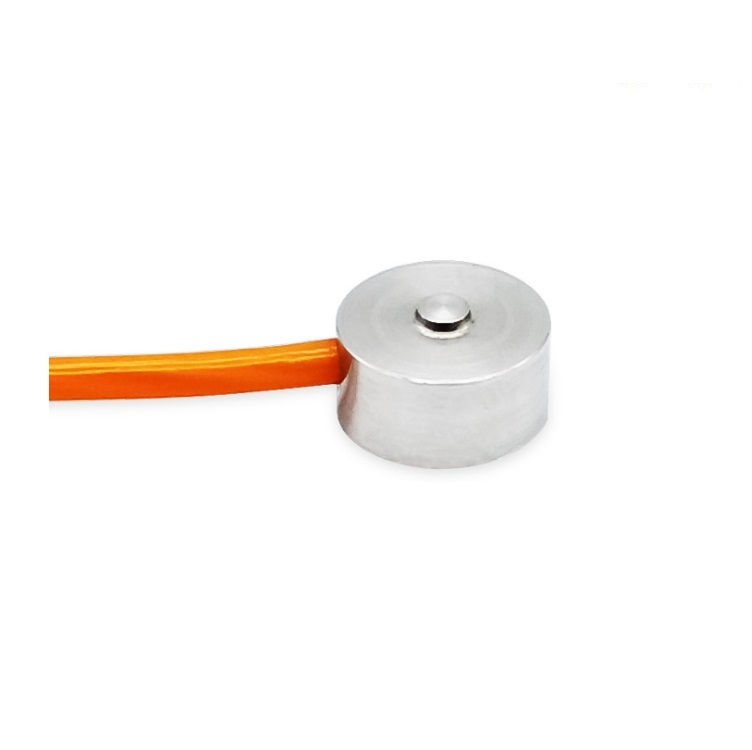

LC5003 Strain Gauge Based Sensors Button Force Transducers Miniature Load Cell Buttons Pressure Sensor

Availability:
Quantity:
  • LC5003
  • SAINTBOND

Load Cell

LC5003-3

Features:

Using stainless steel material, the size of the micro structure. Suitable for all kinds of small space detection, widely used in the field of scientific research, measurement and control, industrial and automation equipment,etc.

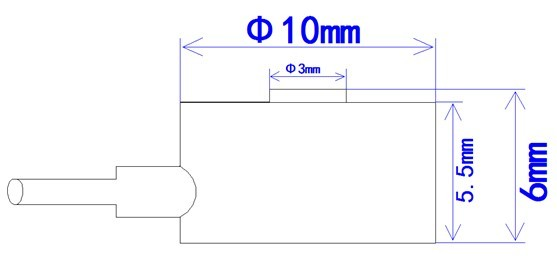

Dimension:

LC5003

Specification:

Rated Load

05/10//20/50/100kg

Input Impedence:

350 ±10Ω

Output Sensitivity

1.0 ± 10% mV / V

Output Impedence:

350 ± 10Ω

Non-linearity

0.5~1 % F.S.

Insulation Resistance:

1000MΩ/50V DC

Recommended Excitation Vol.:

5~10VDC/AC

Temp. Compensation Range:

- 10ºC ~ 60 ºC

Max voltage:

15V DC/AC

Operating Temp. Range:

- 20 ºC~ 80 ºC

Repetitiveness:

0.1 % F.S.

Safety Overload:

120 % F.S.

Zero Output:

±0.5 % F.S.

Limit Overload:

150 % F.S.

Hysteresis:

0.5% F.S.

Cable Size:

4 Core Φ 2mm× 2000mm

Creep(30min):

0.5% F.S.

Protection Class:

IP67

TC SANP:

0.01% F.S./ºC

Material Quality:

Stainless Steel

TCO:

0.01 % F.S. /ºC

Tired:

300 000Times


圣邦网站1详情页_05

Product name LC5003 Strain Gauge Based Sensors Button Force Transducers Miniature Load Cell Buttons Pressure Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
