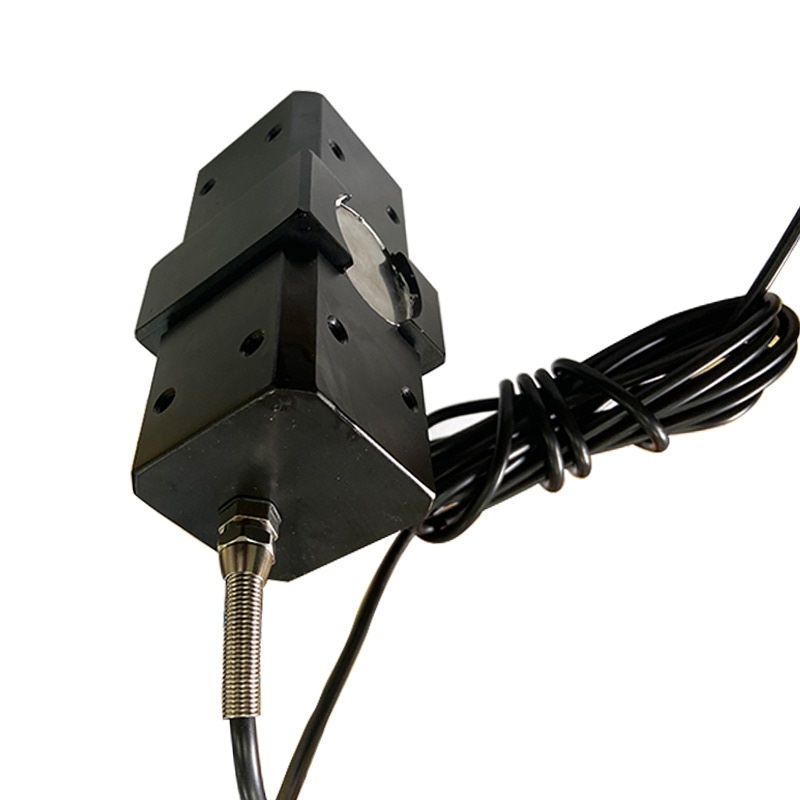

LC480
SAINTBOND
Product Description::
The load cell adopts column structure and has the characteristics of high precision, good strength and good stability. It is mainly used for security fence alarm.
Technical Parameter:
Rated Load: | 0.5/1t | Operating Tem. Range: | -30~+70℃ |
Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150%F.S |
Combined Error: | ±0.03% F.S | Ultimate Over Load: | 250%F.S |
Creep Error(30min) | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
Zero Balance | ±1% F.S | Maximum Excitation: | 15V DC |
Temp. Effect On Zero: | ±0.017% F.S/10℃ | Sealing Class: | IP67/IP68 |
Temp. Effect On Span: | ±0.017% F.S/10℃ | Element Material: | 3~10m |
Input Resistance: | 400±20Ω(750±5Ω) | Cable: | Length=12m |
Output Resistance: | 352±5Ω(702±2Ω) | Citation: | GB/T7551-2008 / OIML R60 |
Insulation Resistance: | ≥5000MΩ |
| Product name | LC480 Column Load Cell Supplier Security Guardrail Alarm Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
