LC479
SAINTBOND
Description:
Compression Column S-type tension and compression dual-purpose design structure, high measurement accuracy, high long-term stability, and good output symmetry; It is suitable for various batching scales, hook scales, electronic belt scales, electromechanical combined scales and industrial automation measurement and control systems.
Technical Parameter:
Rated Load: | 0.1/0.2/0.3/0.5/1/2/5/10t | ||
Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 410±10Ω | Element Material: | Alloy /Stainless Steel |
Output Resistance: | 350±3Ω | Cable: | 10m(10t-20t), 15m(50t-250t) |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Note: Can be customized according to customer requirements;

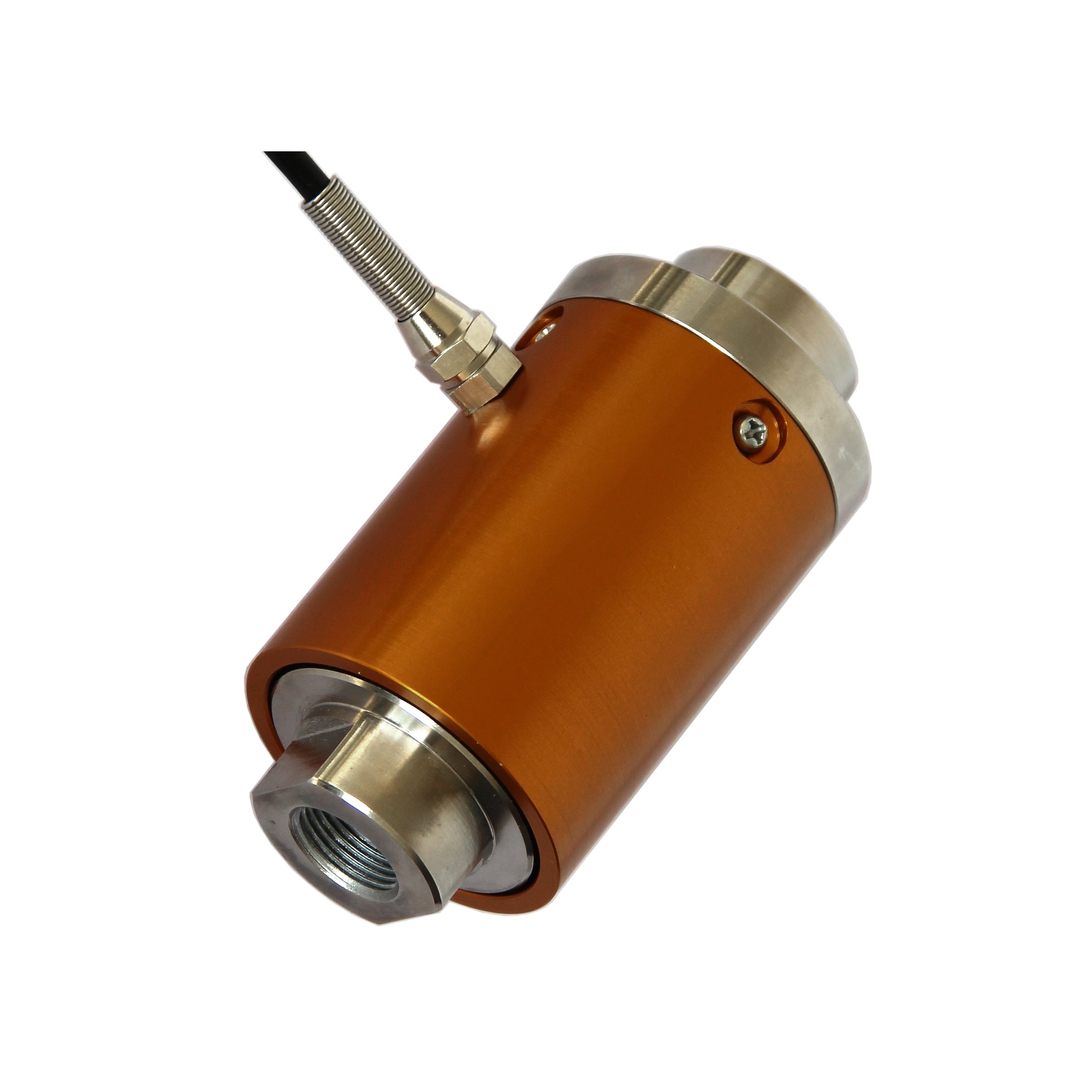

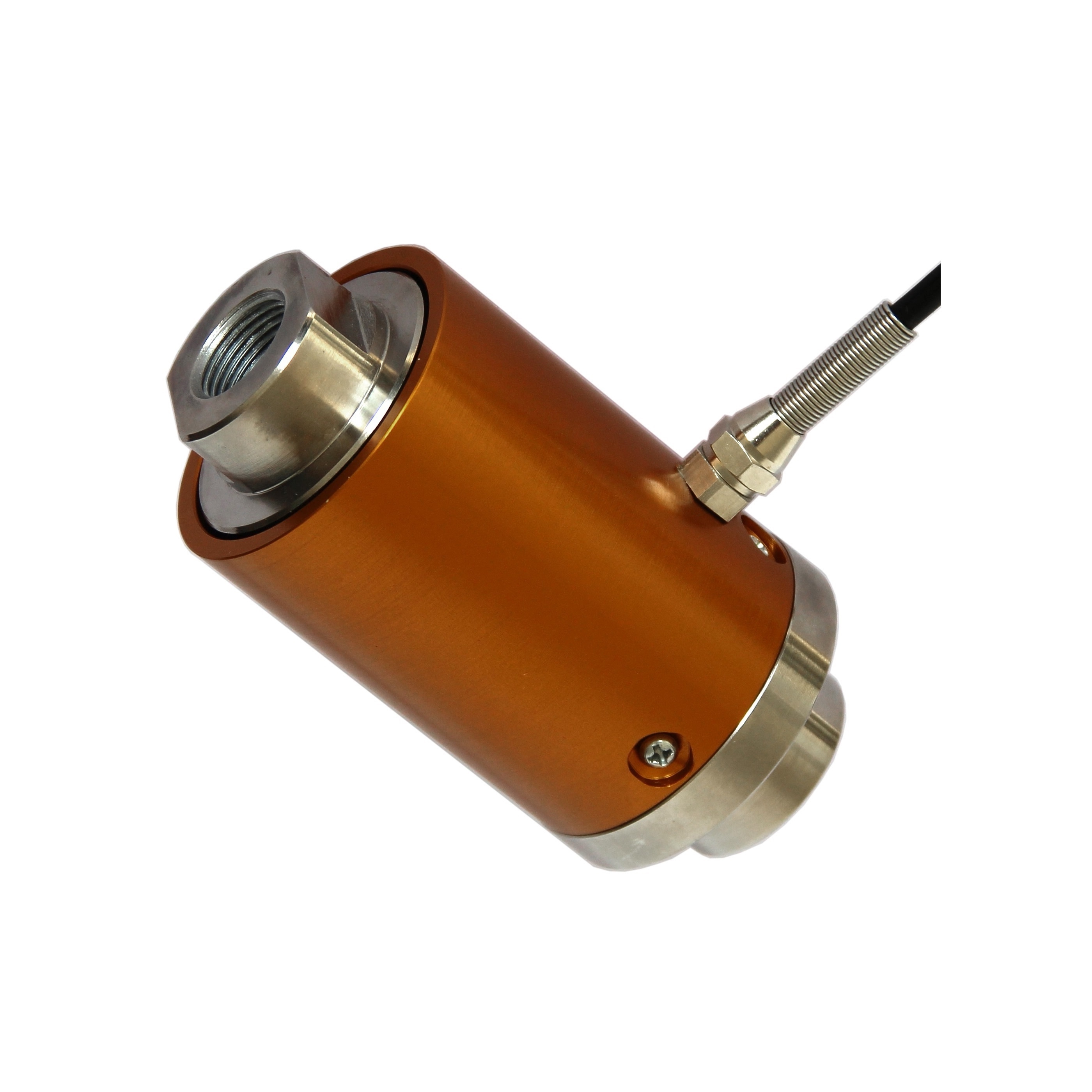

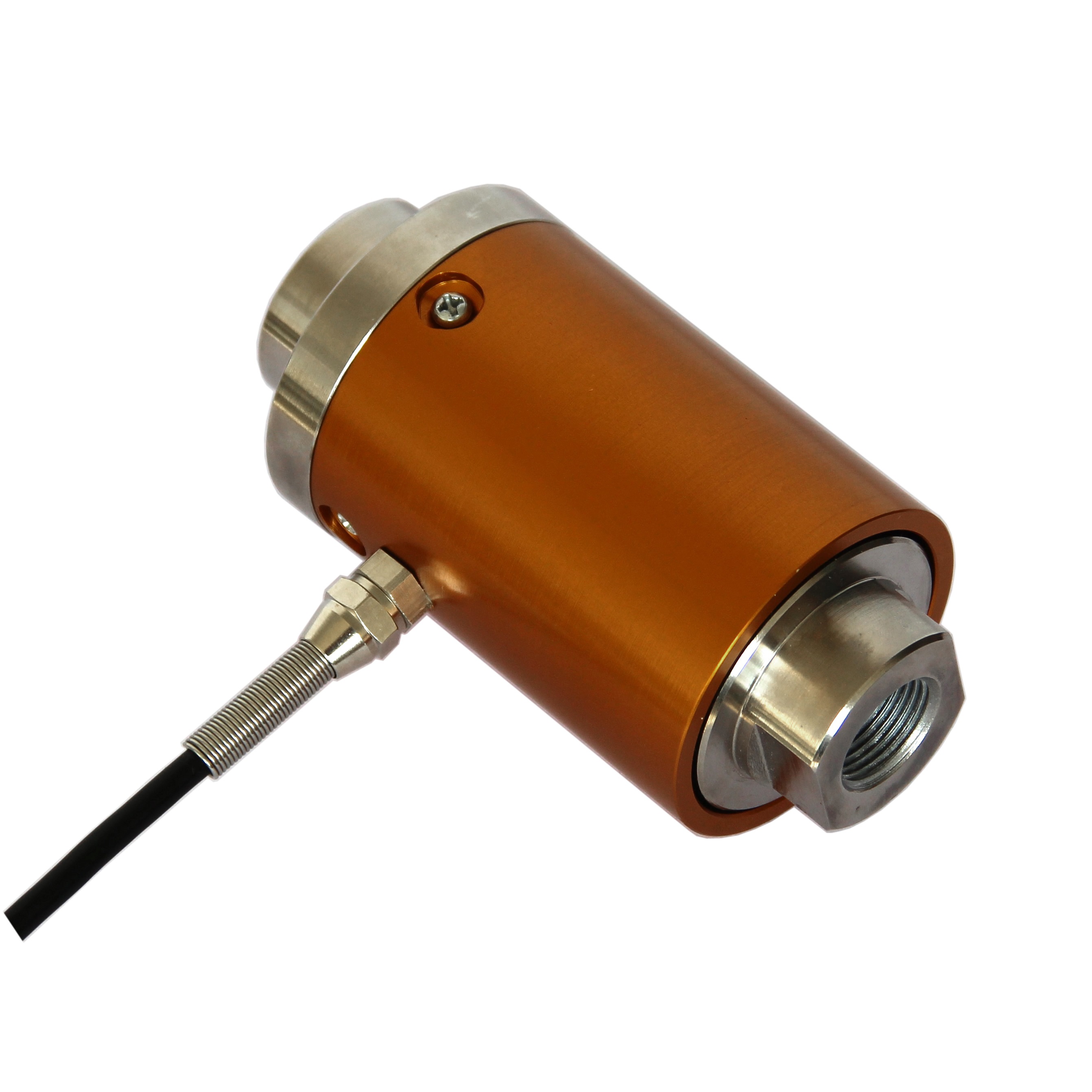

| Product name | LC479 Column Type Stainless Steel Load Cell Column Mount Load Cells |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
