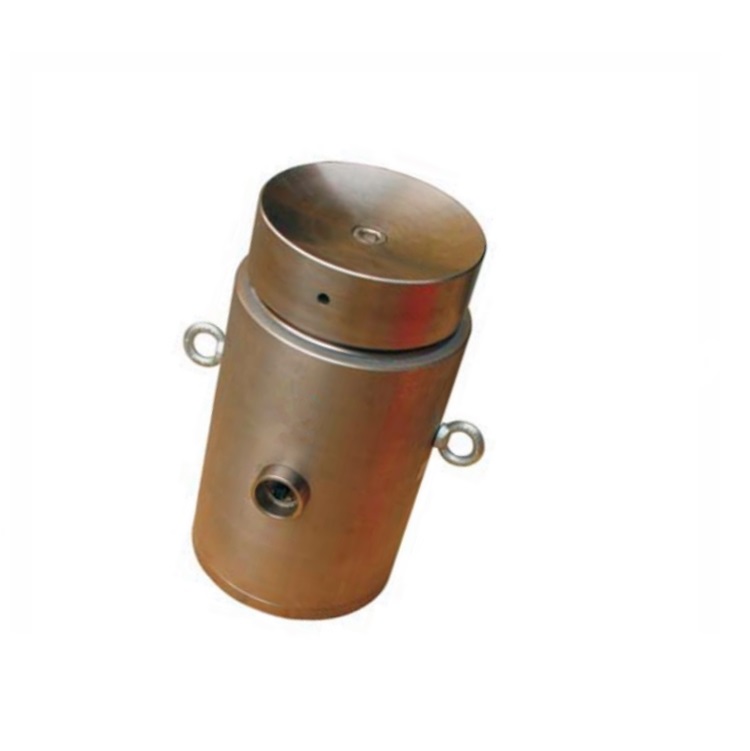

LC474
SAINTBOND
High quality alloy steel, column design structure, strong stability and high reliability,0.5-0.3% high precision, can pass the third-party metrology verification certification, with the third-party verification certificate;Safety overload capacity 120%, limit overload capacity 150%;
Dimension:
Cap. | A | Dia.B | Dia.C | D | Dia.E | F |
500t | 180 | 165 | 138 | 120 | 138 | 68 |
1000t | 280 | 238 | 200 | 145 | 215 | 84 |
Application:
Large-scale pressure testing machine, large-scale hydraulic machinery and equipment, colleges and universities a large range of force measurement and various weighing detection, large-scale industrial force measurement control system.
Technical Parameter:
Rated Load: | 500t/1000t | Operating Tem. Range: | -30~+70℃ |
Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150%F.S |
Combined Error: | ±0.05% F.S | Ultimate Over Load: | 250%F.S |
Creep Error(30min) | ±0.05% F.S | Recommend Excitation: | 10~12V DC |
Zero Balance | ±1% F.S | Maximum Excitation: | 15V DC |
Temp. Effect On Zero: | ±0.017% F.S/10℃ | Sealing Class: | IP67/IP68 |
Temp. Effect On Span: | ±0.017% F.S/10℃ | Element Material: | -Alloy /Stainless Steel |
Input Resistance: | 750±5Ω | Cable: | Length=12m |
Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Product name | LC474 Mini Column Force Load Cell Sensor Miniature Column Load Cells |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
