LC470
SAINTBOND
Dimensions(mm):
Capacity:kN | D | D1 | D2 | d | H | H1 | H2 | Ø |
300kN | 145 | 120 | / | 85 | 130 | 22 | 15 | 43085 |
500/600kN | 197 | 160 | / | 110 | 160 | 25 | 15 | 43091 |
1000kN | 240 | 200 | / | 135 | 230 | 40 | 28 | 43095 |
1500/2000/2500kN | 305 | 250 | / | 160 | 326 | 57 | 45 | 12- Ø32.5 |
3000kN | 390 | 340 | / | 265 | 358 | 69 | 50 | 16- Ø32.5 |
4000kN | 332 | 285 | 235 | 135 | 300 | 60 | 45 | 16- Ø32 |
5000kN | 420 | 370 | 320 | 190 | 300 | 60 | 45 | 15- Ø32 |
10000kN | 560 | 500 | / | 365 | 460 | 110 | 50 | 20- Ø39 |
Specification:
Capacity: | 300/500/600/1000/1500/2000/2500/3000/4000/5000kN ( 30/50/60/100/150/200/250/300/400/500Ton ) | ||
Accuracy | 0.2%F.S. | Input impedance | 760Ω |
Rated output | 2 mV / V | Output impedance | 700Ω |
Non-linearity | ≤0.2 % F.S. | Insulation | >2000MΩ |
Repeatability | ≤0.05% F.S. | Recommended excitation | 10 V(DC) |
Hysteresis | ≤0.2 % F.S. | Excitation range | 6~12 V(DC) |
Temp. effect on sensitivity | <0.1 % F.S./10℃ | Operation tem.range | - 30~70ºC |
Temp. effect on zero balance | <0.1 % F.S./10℃ | Safe overload | 120% F.S. |
Protection class | IP65 | Cable | 3m |

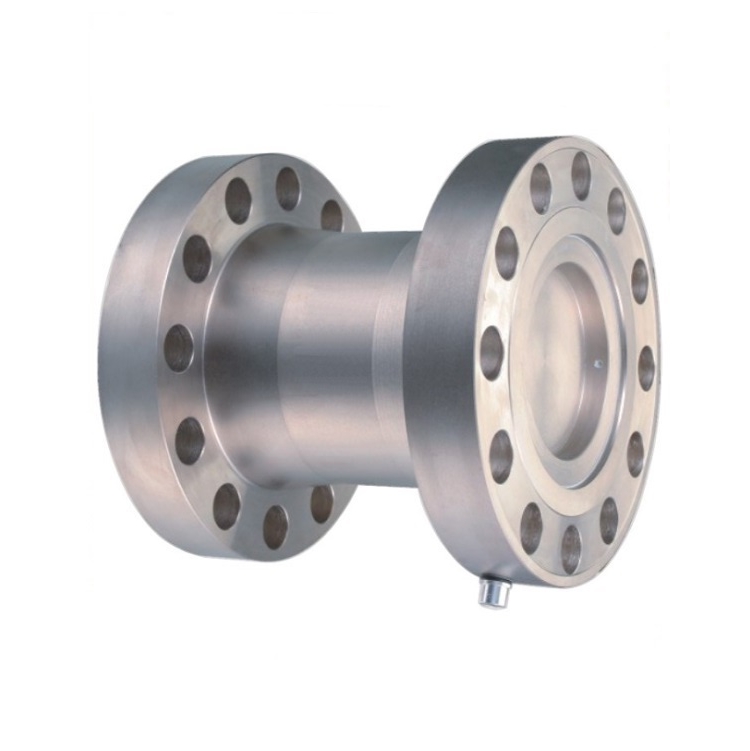

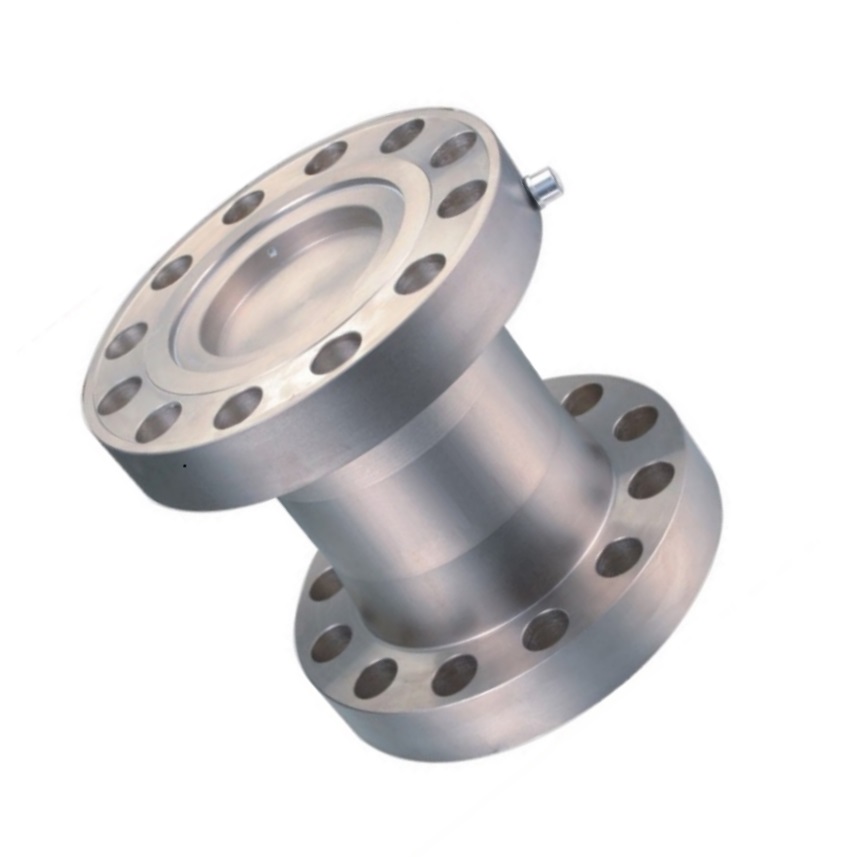

| Product name | LC470 Column Load Cell Supplier Force Sensor Flange Type Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
