LC465
SAINTBOND
Dimension: (Unit: mm)
Capacity(KN) | D | M | L | L1 | L2 |
20~30(2~3T) | 64 | M24x3 | 72 | 145 | 124 |
40~60(4~6T) | 74 | M30x2 | 124 | 200 | 180 |
100(10T) | 86 | M36x3 | 84 | 180 | 160 |
150~200(15~20T) | 86 | M42x3 | 126 | 230 | 200 |
300(30T) | 98 | M48x3 | 132 | 270 | 230 |
400(40T) | 105 | M48x3 | 137 | 280 | 250 |
500(50T) | 118 | M56x3 | 175 | 320 | 320 |
1000(100T) | 118 | M72x3 | 175 | 320 | 320 |
1500~2000(150~200T) | 165 | M90x3 | 200 | 400 | 400 |
Specifications:
Capacity: | 0.1% | Insulation Resistance: | >2000MΩ |
Accuracy: | 2mV/V | Temperature Effect On Sensitivity: | <0.05%FS/10℃ |
Non-linearity: | ≤0.1%FS | Temperature Effect On Zero Balance: | <0.05%FS/10℃ |
Repeatability: | ≤0.05%FS | Reference Excitation Voltage: | 10V(DC) |
Hysteresis: | ≤0.1% | Nominal Range Of Excitation Vol.: | 6~12V(DC) |
Input Resistance: | 380Ω | Service Temperature Range: | -30~70℃ |
Output Resistance: | 350Ω | Safe Load Limit: | 120%FS |

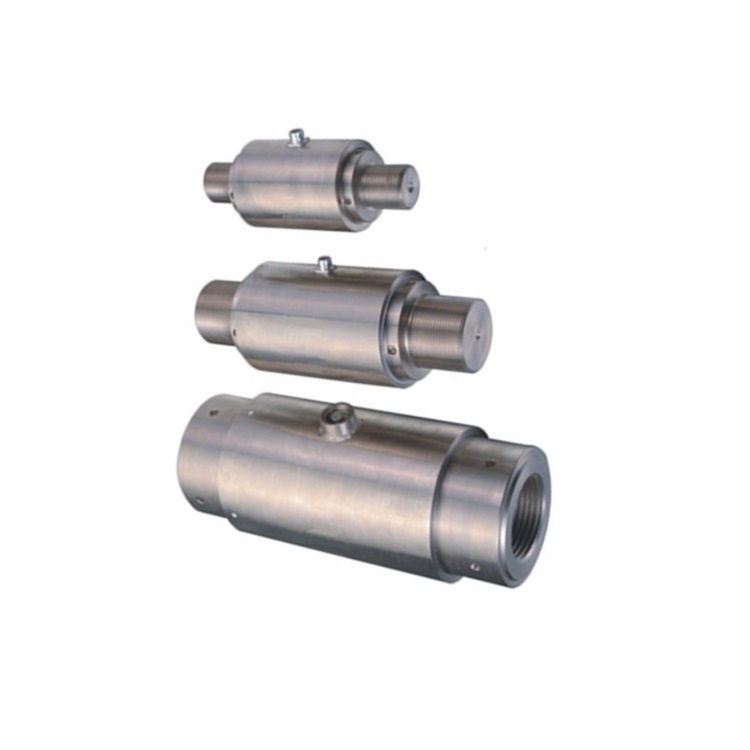

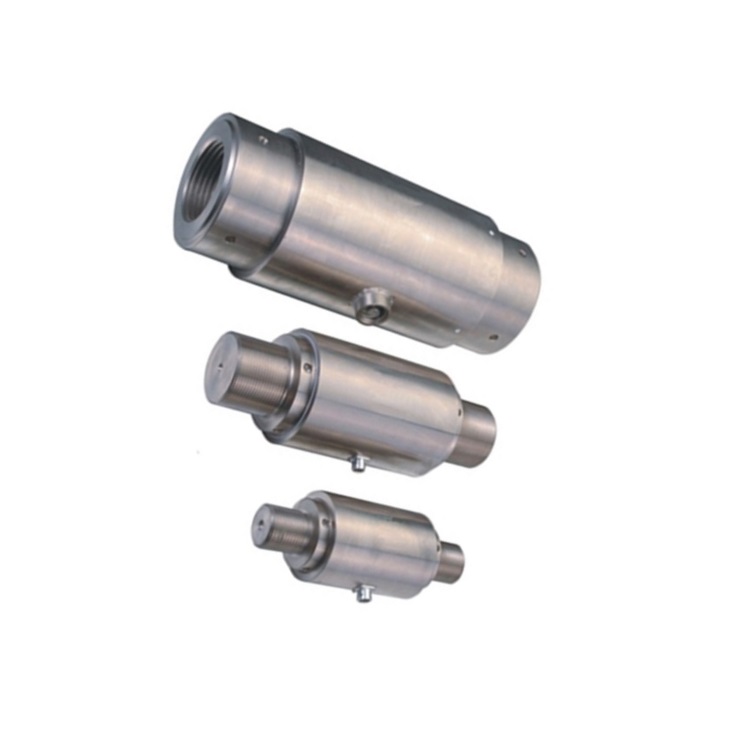

| Product name | LC465 Column Type Load Cells Tension And Compression Two-way Multi-Column Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
