LC4503
SAINTBOND

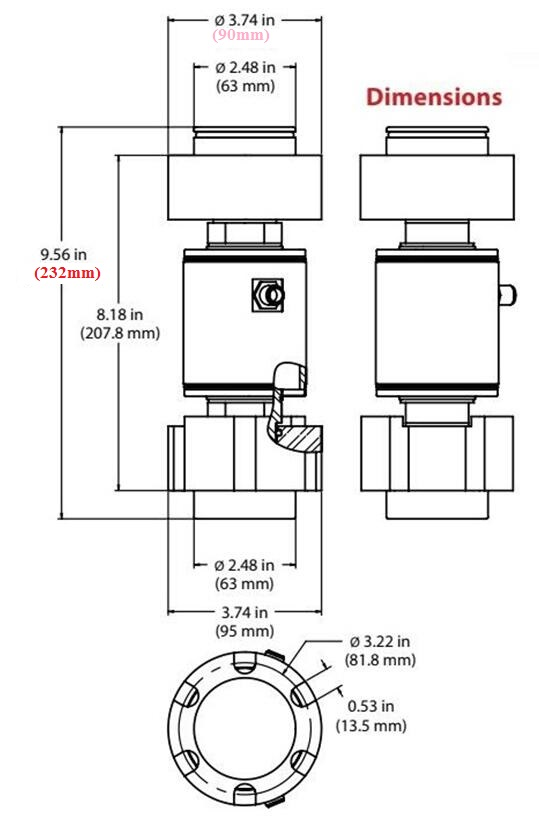

Dimensions: Unit: mm
Technical Parameter:
Rated Load: | 25/45t | Operating Temperature Range: | -30~+70℃ |
Sensitivity: | (2.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.1% F.S | Ultimate Over Load: | 200%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Voltage: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy Steel/Stainless Steel |
Input Resistance: | 750±5Ω | Cable: | Length=L:12m |
Output Resistance: | 703±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Black(Input-),White(Output-) Red(Input+),Green(Output+), |
Product name | LC4503 Column Load Cell Supplier 25/45T MTX Load Cells |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
