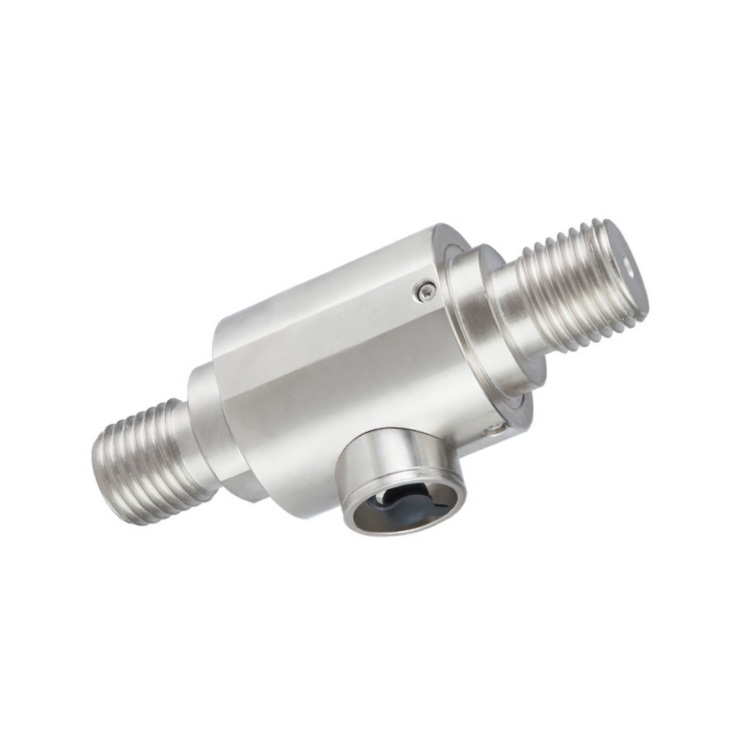

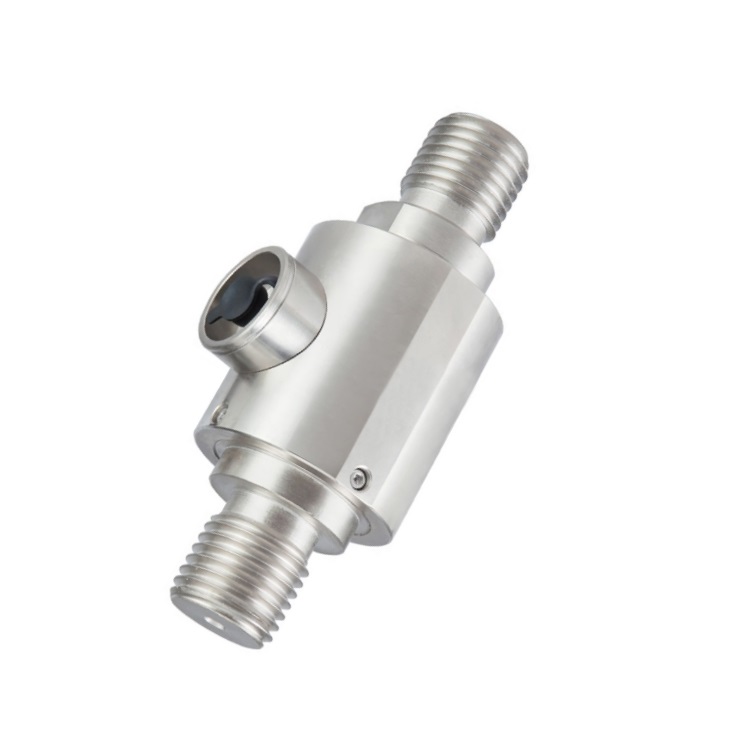

LC441
SAINTBOND
It has the characteristics of high precision, long-term stability, easy installation and use, and is suitable for electronic weighing apparatus, lifting equipment and various force measurement and control systems.

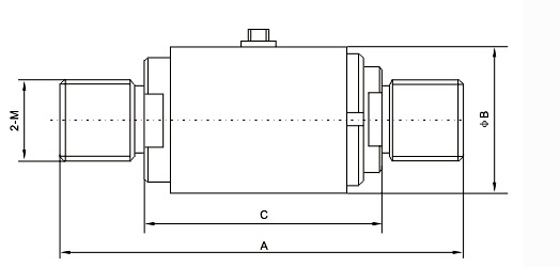

Dimension: Unit:mm
Cap. / Size | A | φB | C | M |
10~20t | 214 | 86 | 124 | M42×4.5 |
30~50t | 276 | 106 | 156 | M56×5.5 |
70~100t | 380 | 142 | 180 | M76×4 |
150~200t | 500 | 175 | 220 | M130×6 |
Specifications:
Capacity: | 5T~200T | ||
Accuracy: | 0.1%FS | Insulation Resistance: | ≥5000MΩ/100VDC |
Sensitivity: | 1.5~2.0 m V/V | Temperature Effect On Sensitivity: | ≤±0.03％F·S/10℃ |
Non-Linearity: | ≤±0.5%F.S | Temperature Effect On Zero Balance: | ≤±0.03％F·S/10℃ |
Repeatability: | ≤0.05%FS | Reference Excitation Voltage: | 10V (DC) |
Hysteresis: | ≤0.1%FS | Nominal Range Of Excitation Voltage: | 6~12V(DC) |
Input Resistance: | 380±30Ω /730±30Ω | Service Temperature: | -30~70℃ |
Out Resistance: | 350±2Ω /700±3Ω | Safe Load Limit: | 120%FS |
| Product name | LC441 Mini Column Force Load Cell Sensor Truck Load Cell Bóng 500kg |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
