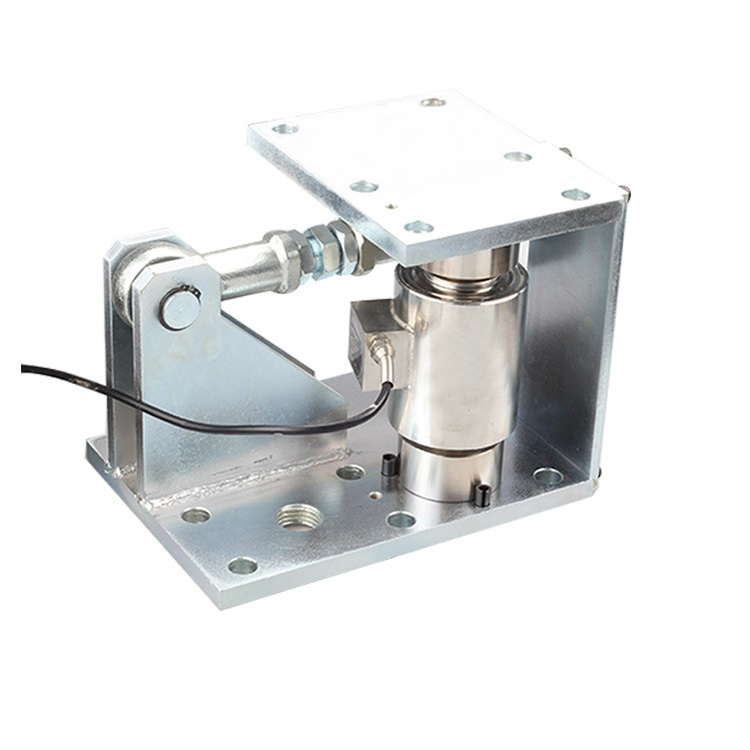

LC441 Czl Load Cell Mavin Compression Column Load Cell with Controller

Availability:
Quantity:
  • LC441

  • SAINTBOND

Load Cell

LC441-3

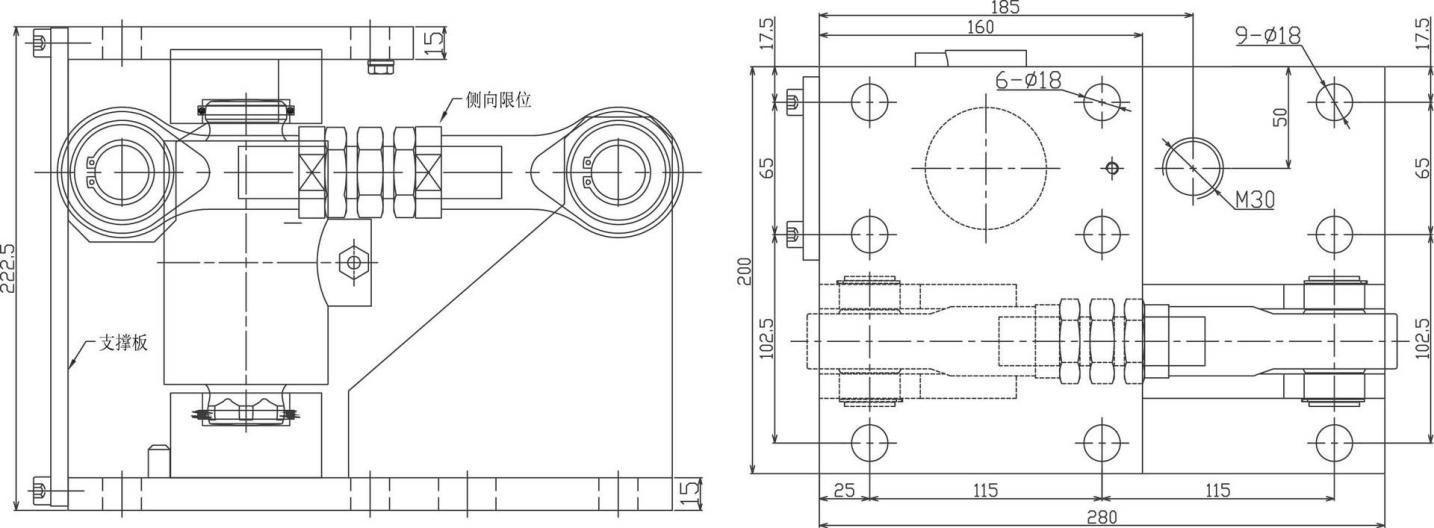

Dimension:

LC441

Technical Parameter:

Rated Load:

10/20/30/40/50t

Operating Temp. Range:

-30~+70

Sensitivity:

(2.0±0.1%) m V/V

Max. Safe Over Load:

150%F.S

Combined Error:

±0.02% F.S

Ultimate Over Load:

300%F.S

Creep Error(30min):

±0.02% F.S

Recommend Excitation:

10~12V DC

Zero Balance:

±1% F.S

Maximum Excitation:

15V DC

Temp. Effect On Zero:

±0.02% F.S/10

Sealing Class:

IP67/IP68

Temp. Effect On Span:

±0.02% F.S/10

Element Material:

Alloy /Stainless Steel

Input Resistance:

410±10Ω

Cable:

10m(10t-20t), 15m(50t-250t)

Output Resistance:

350±3Ω

Citation:

GB/T7551-2008/ OIML R60

Insulation Resistance:

≥5000MΩ

Mode Of Connection:

Red(Input+),Green(Output+)

Black(Input-),White(Output-)


圣邦网站1详情页_05

Product name LC441 Czl Load Cell Mavin Compression Column Load Cell with Controller
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
