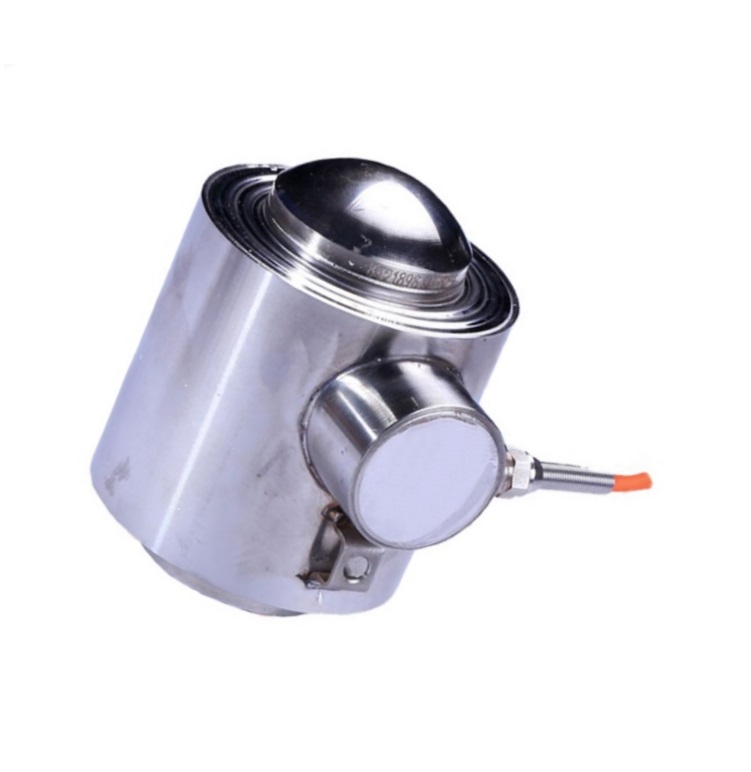

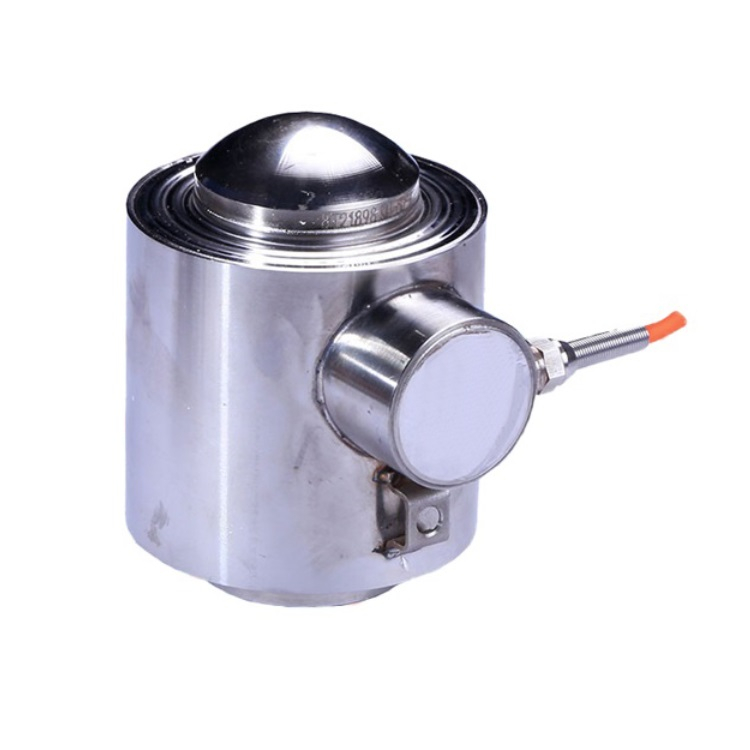

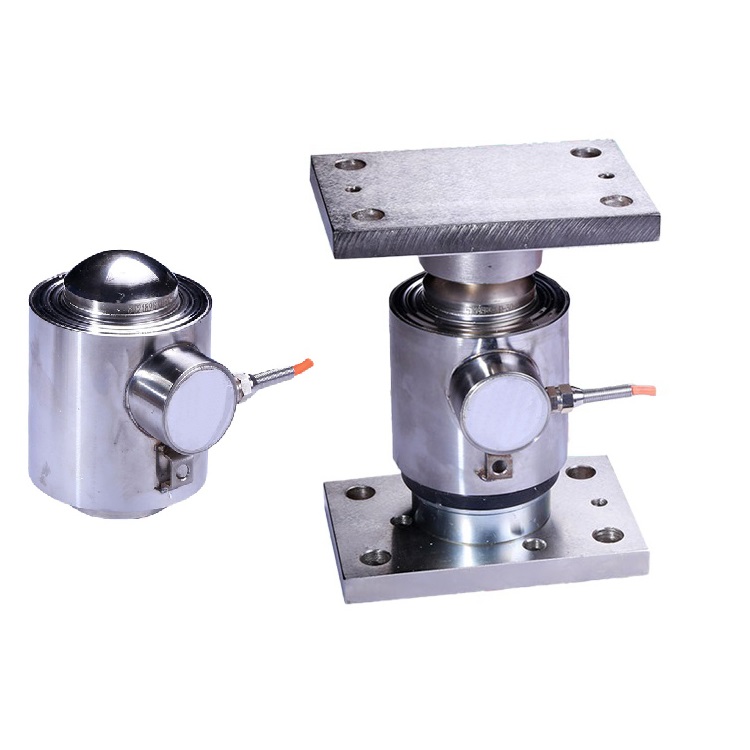

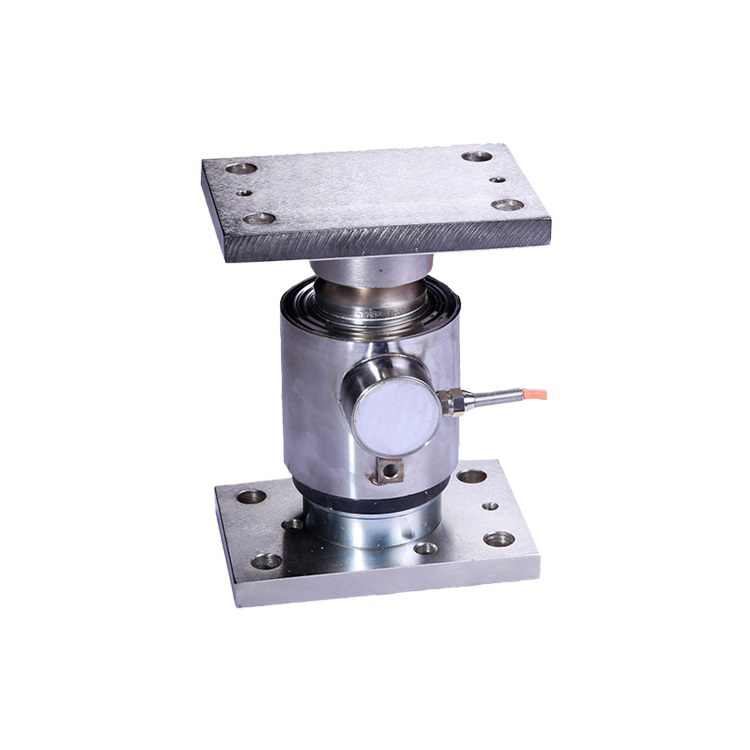

LC436 Compression Column Type Load Cells PR6201 Load Cell 20/3050/60/75/100t

Sensitivity:

(1.0±0.2%) mV/V

Max. Safe Over Load:

200%F.S

Combined Error:

±0.02% F.S

Ultimate Over Load:

250%F.S

Creep Error(30min)

±0.016% F.S

Recommend Excitation:

10~12V DC

Zero Balance

±1% F.S

Maximum Excitation:

15V DC

Temp. Effect On Zero:

±0.0175% F.S/10℃

Sealing Class:

IP67/IP68

Temp. Effect On Span:

±0.015% F.S/10℃

Element Material:

-Alloy /Stainless Steel

Input Resistance:

650±10Ω

Cable:

Length=14m

Output Resistance:

610±3Ω

Citation:

GB/T7551-2008/OIML R60

Insulation Resistance:

≥5000MΩ

Mode Of Connection:

Red(Input+),Green(Output+),

Black(Input-),White(Output-)
