LC432
SAINTBOND
Dimensions: Unit: mm

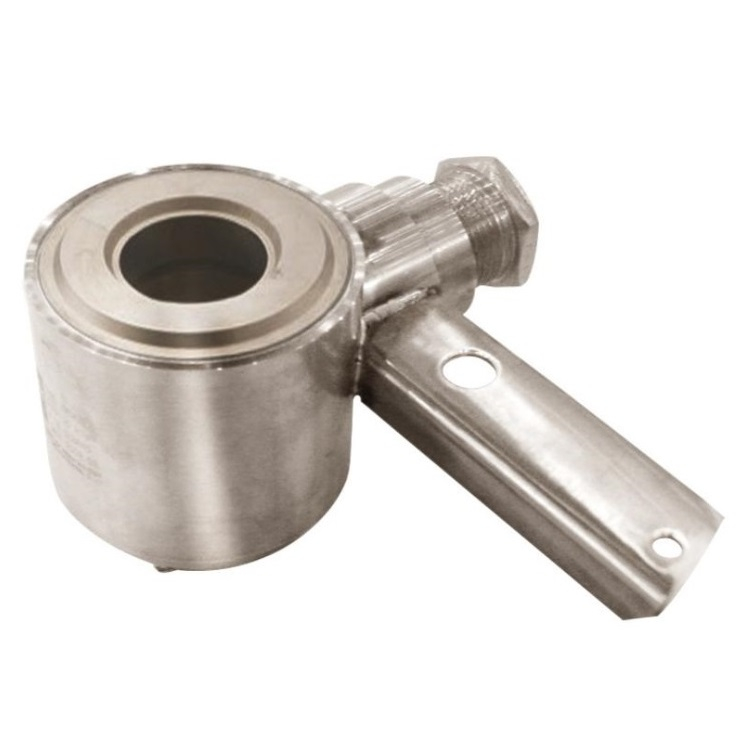

LC432 Axial strain cylinder in a sealed case, with raised end load bearing faces and hole right through. For use in compression or in fail-safe tensile applications. The LC432 is ideally suited to engineering force measurements including through center safety testing of cables, rods and bolts. It is designed for easy installation, usually between two flat faces bearing on its loading rings, either unattached or with retaining spigots positioned in the center hole. Alternatively tensile load transfer can be achieved via a tie rod assembly through the center hole. In this way the load cell can indirectly measure tensile loads in a "fail-safe" mode. We are happy to design variants of this load cell to meet your specific requirements.
Technical Parameter:
Rated Load: | 10/20/25/30t | Operating Temperature Range: | -30~+70℃ |
Sensitivity: | (2.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.1% F.S | Ultimate Over Load: | 200%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Voltage: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Voltage: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy Steel/Stainless Steel |
Input Resistance: | 750±5Ω | Cable: | Length=L:12m |
Output Resistance: | 703±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Black(Input-),White(Output-) Red(Input+),Green(Output+), |
| Product name | LC432 Cylindrical Load Cells Keli Compression Column Type Load Cells |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
