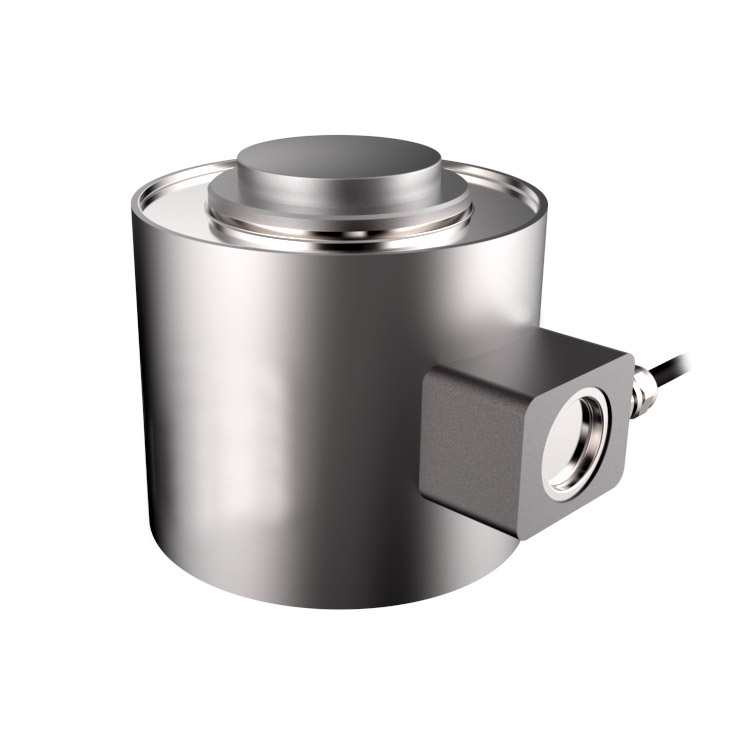

LC420 Rod End for Type S Load Cell 100 Ton Compression Column Type Load Cells

Availability:
Quantity:
  • LC420
  • SAINTBOND

Load Cell

LC420LC420

Product Profile

The LC420MA range of load cells is specially designed for weighing silos, tanks and process vessels. A particular design characteristic is that the overall height and shape of the load cell remain unchanged, from 500 kg up to 50 t. Alongside this, the unit has an especially high overload capacity of up to 200 %.The hermetically sealed enclosure  to be used even under extreme operating conditions in harsh production environments.

Technical Parameter:

Rated Load:

10/20/ 30/50t

Max. Safe Over Load:

150%F.S

Sensitivity:

(2.0±0.1%) m V/V

Ultimate Over Load:

300%F.S

Combined Error:

±0.05% F.S

Recommend Excitation:

10~12V DC

Creep Error(30min):

±0.02% F.S

Maximum Excitation:

15V DC

Zero Balance:

±1% F.S

Sealing Class:

IP67/IP68

Temp. Effect On Zero:

±0.02% F.S/10℃

Element Material:

Alloy/ Stainless Steel

Temp. Effect On Span:

±0.02% F.S/10℃

Cable:

Length=13m

Input Resistance:

750±5Ω

Citation:

GB/T7551-2008/ OIML R60

Output Resistance:

702±2Ω

Mode Of Connection:

Red(Input+),Green(Output+),

White(Output-),Black(Input-),

Insulation Resistance:

≥5000MΩ

Operating Temp. Range:

-30~+70℃


圣邦网站1详情页_05

Product name LC420 Rod End for Type S Load Cell 100 Ton Compression Column Type Load Cells
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
