LC418M2
SAINTBOND
Dimension Unit:mm:
Cap/Size | H | A | B | D |
30t | 200 | 110 | 176 | 68 |
40t | 210 | 110 | 176 | 68 |
50t | 240 | 130 | 196 | 88 |
150t | 270 | 260 | 330 | 156 |
Product Description:

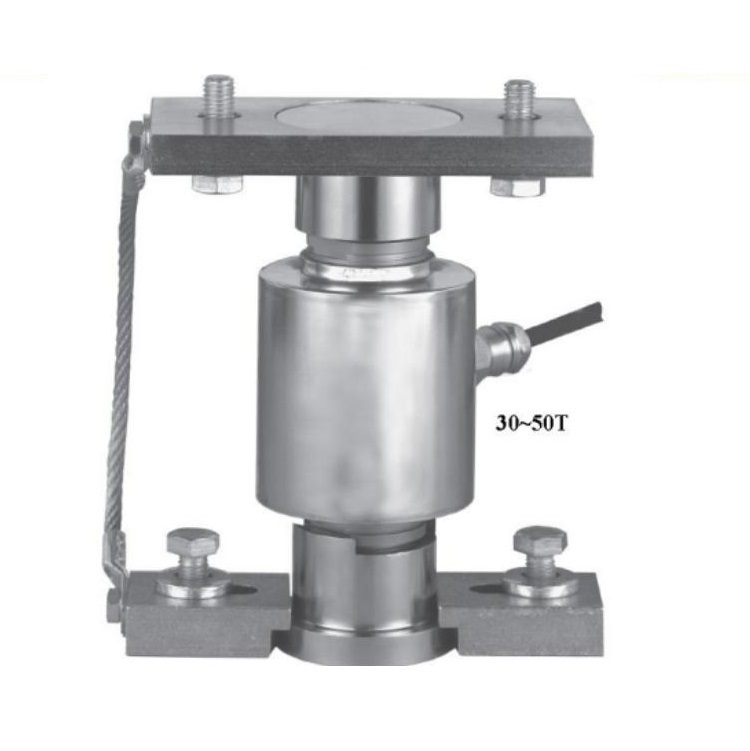

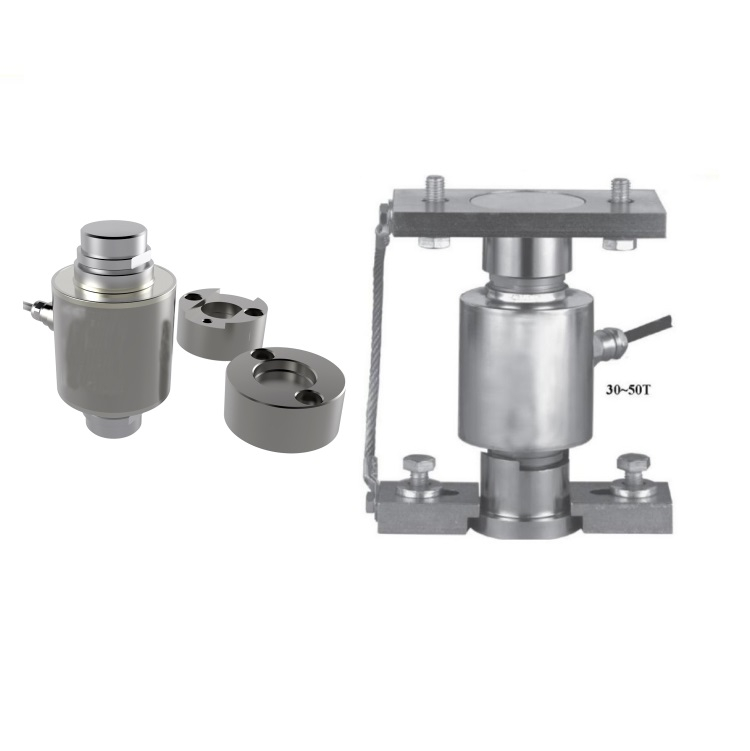

The type LC418M2 is a stainless steel self centering rocker compression load cell with complete hermetic sealing. It is a perfect fit for use in harsh industrial environments. Application for Weighbridges, hoppers, tanks and silos scale, explosion-proof truck scale, weighbridge, weighing systems.
Technical Parameter:
Rated Load: | 7.5/15/22.5/30/40/50/100/150/300t | ||
Sensitivity: | (3.0±0.1%) mV/V | Operating Tem. Range: | -30~+70℃ |
Combined Error: | ±0.05% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.017% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.017% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 750±5Ω | Element Material: | Alloy /Stainless Steel |
Output Resistance: | 702±2Ω | Cable: | Length=12m(7.5~22.5t), 18m(30~300t) |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Product name | LC418M2 Cheap Zemic Load Cell 40 Ton Load Cell 200 Ton |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
