LC418
SAINTBOND
Cap./Size | H1 | H2 | H3 | H4 | H5 | H6 | D1 | D2 |
7.5t | 89 | 44 | 17 | 23 | 11 | 6 | 28 | 65 |
15t | 89 | 44 | 17 | 23 | 11 | 6 | 28 | 65 |
22.5t | 89 | 44 | 17 | 23 | 11 | 6 | 28 | 65 |
30t | 140 | 70 | 26 | 28 | 13 | 6.5 | 39 | 81 |
40t | 150 | 75 | 31 | 33 | 13 | 11.7 | 39 | 81 |
50t | 178 | 89 | 32 | 34 | 17 | 8.5 | 44 | 99 |
100t | 178 | 89 | 38.5 | 38.5 | 17 | 12 | 62 | 141.3 |
150t | 210 | 105 | 42.7 | 42.7 | 20.6 | 12.8 | 76.2 | 165.1 |
300t | 280 | 140 | 55.9 | 55.9 | 25 | 21.5 | 100 | 165.1 |
Dimension:
Product Description:

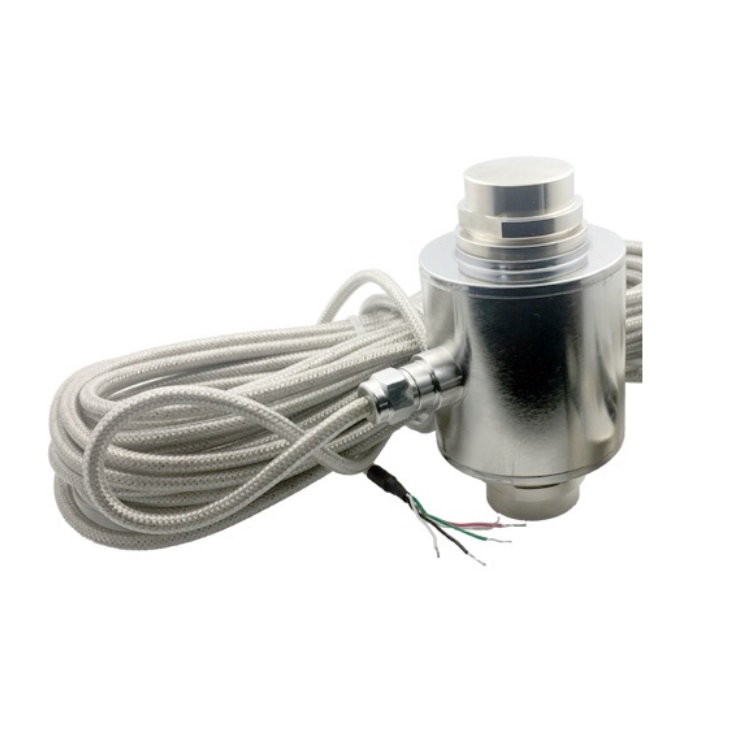

The type LC418 is a stainless steel self centering rocker compression load cell with complete hermetic sealing.
It is a perfect fit for use in harsh industrial environments. Application for Weighbridges, hoppers, tanks and silos scale, explosion-proof truck scale, weighbridge, weighing systems.
Technical parameter:
Rated Load: | 7.5/15/22.5/30/40/50/100/150/300t | ||
Sensitivity: | (3.0±0.1%) mV/V | Operating Tem. Range: | -30~+70℃ |
Combined Error: | ±0.05% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.017% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.017% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 750±5Ω | Element Material: | -A: Alloy Steel, -SS: SS |
Output Resistance: | 702±2Ω | Cable: | Length=12m~18m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Product name | LC418 RC3 Compression Load Cell Controller Single Point Truck Scale Load Cells |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
