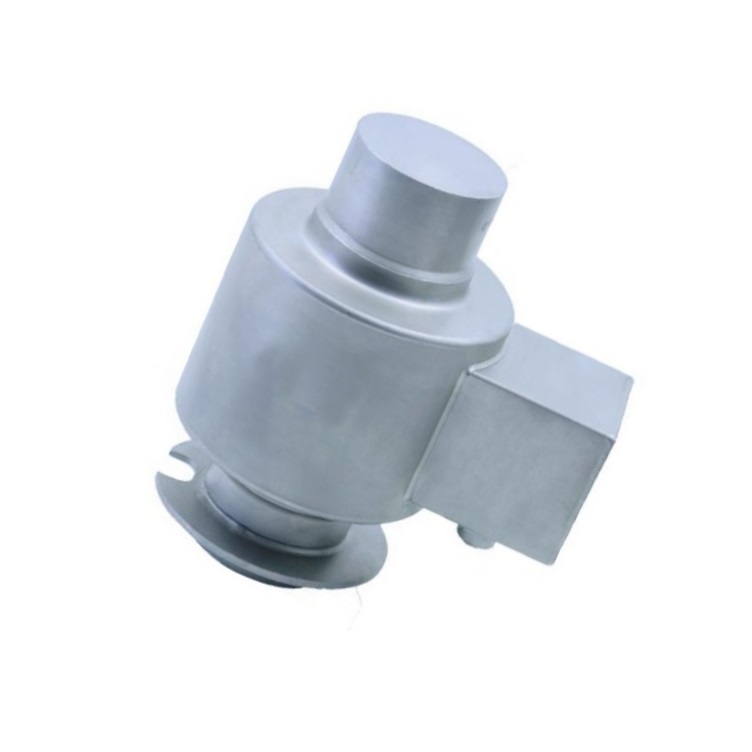

LC415
SAINTBOND
Product Details:
◎Stainless steel IP68 compression load cell;
◎Hermetically sealed;
◎Suitable for hopper scales and vehicle testing facilities;
◎Built in surge arrestors;
Dimensions:
Technical Parameter:
Rated Load: | 10/20/30/40/50t | Operating Temp. Range: | -30~+70℃ |
Sensitivity: | 2.0 mV/V±5% | Max. Safe Over Load: | 150%F.S |
Combined Error: | ±0.05% F.S | Ultimate Over Load: | 250%F.S |
Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Cable: | Length=15m |
Input Resistance: | 750±5Ω | Citation: | GB/T7551-2008/OIML R60 |
Output Resistance: | 702±2Ω | Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
Insulation Resistance: | ≥5000MΩ |
| Product name | LC415 Digital Compression Column Load Cell Force Sensors Load Cells for Weighbridges |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
