LC412
SAINTBOND

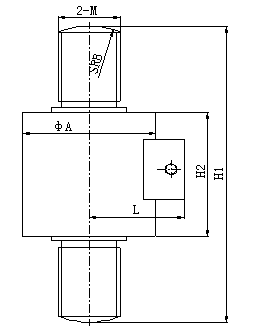

Dimensions Unit: mm:
Cap/Size | A | B | H1 | H2 | L | M |
10~20t | 73 | 200 | 180 | 69.3 | 99.7 | M36×3 |
20~30t | 88.9 | 250 | 200 | 70 | 115.6 | M42×3 |
40~60t | 105 | 300 | 250 | 99.3 | 138.3 | M56×4 |
100t | 152.4 | 400 | 350 | 131.9 | 183.9 | M76×4 |
Product Characteristics:

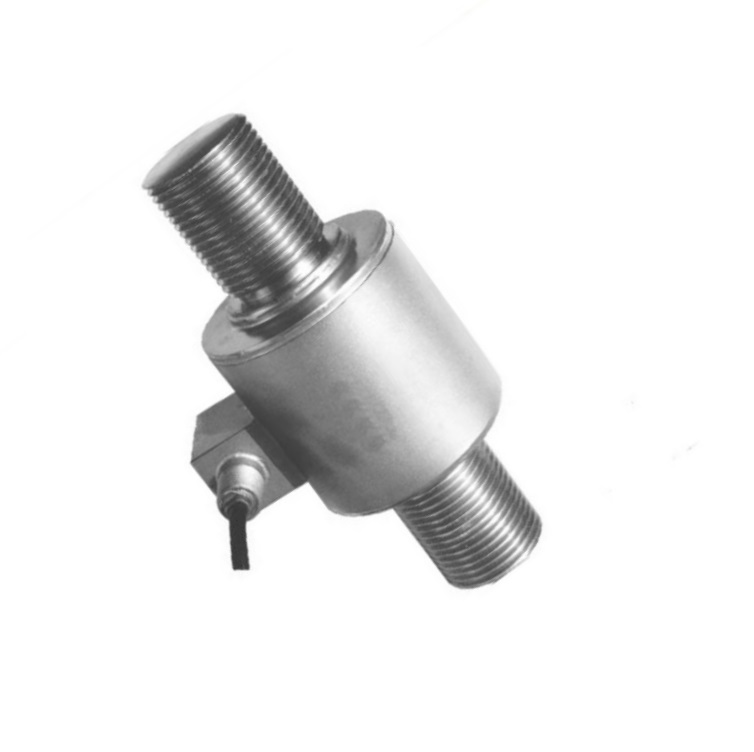

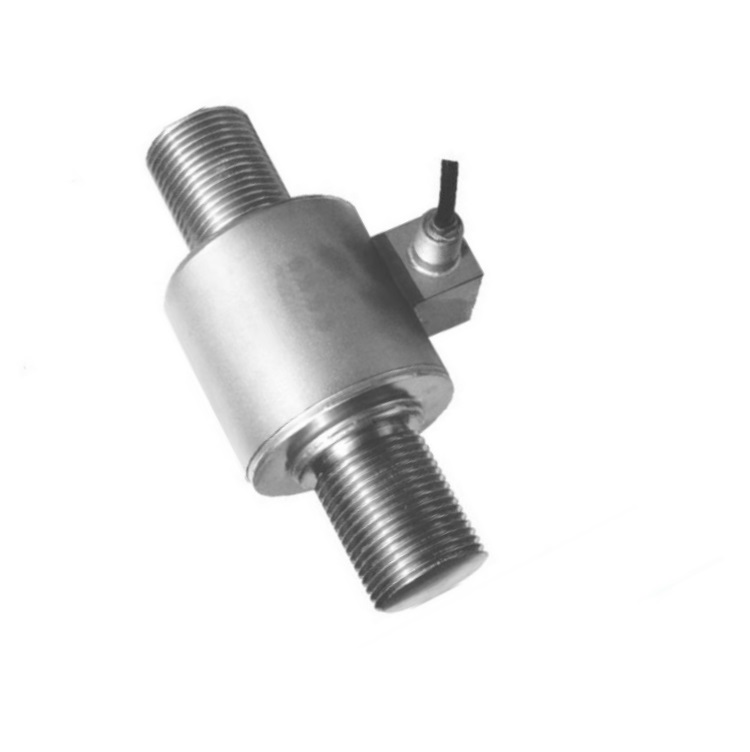

Alloy Steel/Stainless steel IP68 compression/tension load cell,Hermetically sealed,Suitable for vehicle and hopper scales and vehicle testing facilities,Built in surge arrestors
Technical Parameter:
Rated Load: | 10/20/30/40/50/60/100t | ||
Sensitivity: | (1.5±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.03% F.S | Ultimate Over Load: | 200%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol. | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP68 |
Input Resistance: | 750±5Ω | Element Material: | Alloy Steel / Stainless steel |
Output Resistance: | 703±2Ω | Cable: | Length=L:16m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Product name | LC412 Column Load Sensor Weight Sensor Compression And Tension Column Type Stainless Steel Load Cell 40 Ton |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
