| Quantity: | |
|---|---|
LC406M
SAINTBOND

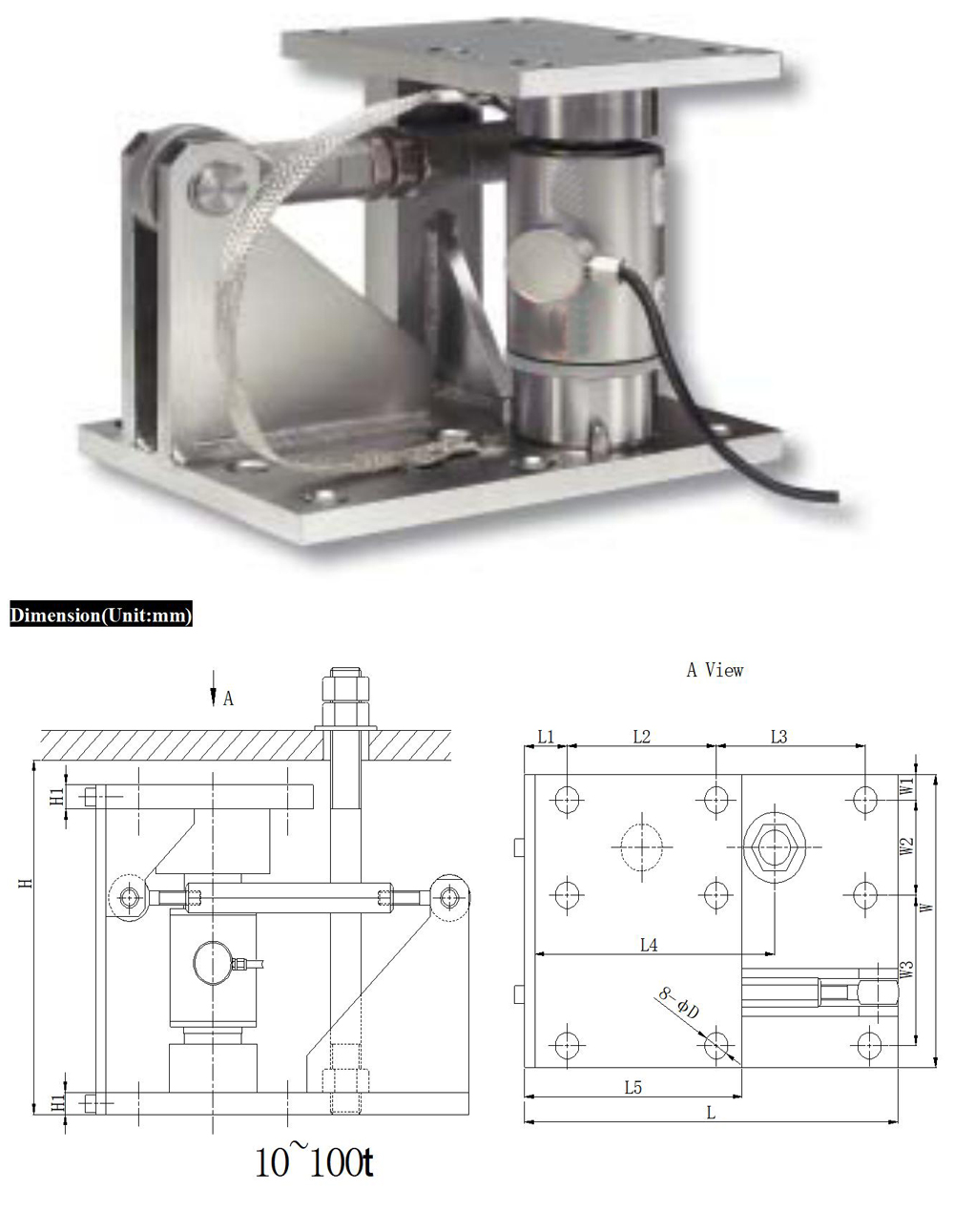

Cap/t | D | H | H1 | L | L1 | L2 | L3 | L4 | L5 | W | W1 | W2 | W3 |
10-60t | 18 | 222.5 | 15 | 280 | 25 | 115 | 115 | 185 | 160 | 200 | 17.5 | 65 | 102.5 |
100t | 22 | 300 | 30 | 420 | 35 | 230 | 120 | 330 | 300 | 400 | 35 | 165 | 165 |
200t | 24 | 355 | 40 | 220 | 17.5 | 185 | 180 | 22.5 | 135 | ||||
300t | 30 | 465 | 50 | 360 | 35 | 290 | 230 | 35 | 160 |
Product Descriptions:
The LC406 is approved for use in various applications in Europe, Asia, America and almost everywhere else in the world. If an approval is required, the LC406M probably already complies.
Use the LC406 load cell in new truck, railroad track and other heavy capacity weighbridge applications or as a replacement for cells in an old weighbridge to enhance its performance,The LC406 is ideally suited to this application in Vehicle Weighing.
The capacity range from 20t to 300t allows the weighing of big tanks and silos with ease. The stainless steel design (20t-200t), hermetic sealing and IP68 protection provides the best reliability in tank weighing applications.
LC406M Module The optional (20t-100t) weigh module adds suspension, checking and anti-tiping to your LC406 load cell and includes top and bottom mounting plates to simplify installation. Available in nickel plated mild steel or stainless steel.
Technical Parameter:
Rated Load: | 20/30/40/50/60/100/120/200/250/300t | ||
Sensitivity: | (2.0±0.1%)m V/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Tco: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
Tc Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 1160±10Ω | Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
Output Resistance: | 1000±3Ω | Cable: | Length=12m(20,30,40t), 16m(50,100t), 18(20~300t) |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) | ||
| Product name | LC406M Column Type Force Sensor & Load Cells Column Load Cell Supplier |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
