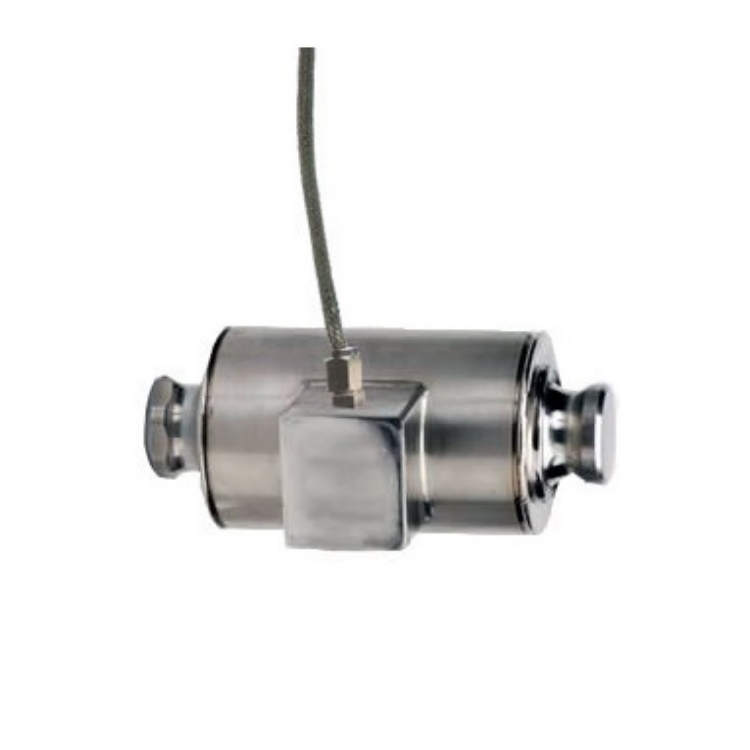

LC406B
SAINTBOND
Product Descriptions:
The LC406B is approved for use in various applications in Europe, Asia, America and almost everywhere else in the world. If an approval is required, the LC406 probably already complies. Use the LC406B load cell in new truck, railroad track and other heavy capacity weighbridge applications or as a replacement for cells in an old weighbridge to enhance its performance,The LC406B is ideally suited to this application in Vehicle Weighing. The capacity range from 20t to 100t allows the weighing of big tanks and silos with ease. The stainless steel design (20t~100t), hermetic sealing and IP68 protection provides the best reliability in tank weighing applications.
Technical Parameter:
Rated Load: | 20/30/40/50/60/100t | ||
Sensitivity: | (2.0±0.1%)m V/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Tco: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
Tc Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 1160±10Ω | Element Material: | Alloy/Stainless Steel |
Output Resistance: | 1000±3Ω | Cable: | Length=12m(20,30,40t), 16m(50,100t) |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |

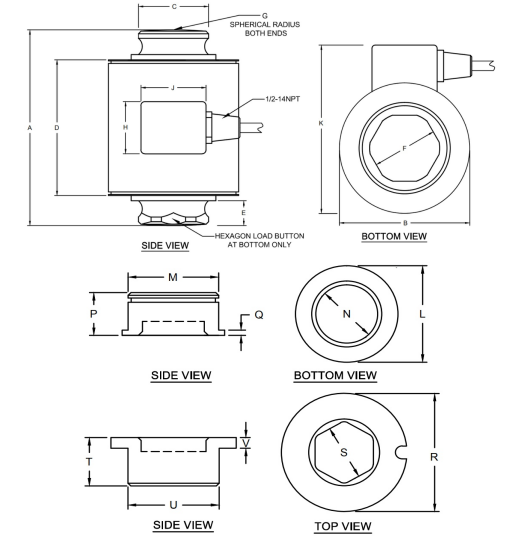

Dimension(Unit:mm)
Cap. | Dimension | |||||||||||||||||||
(Ton) | A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | U | V |
20~30t | 5.91 | 2.99 | 1.49 | 4.10 | 0.75 | 1.40 | 6.30 | 1.57 | 1.97 | 1.12 | 3.75 | 2.48 | 1.50 | 1.25 | 0.50 | 3.75 | 1.42 | 1.25 | 2.48 | 0.50 |
30t~797 | 7.97 | 2.99 | 1.49 | 6.17 | 0.75 | 1.40 | 12.00 | 1.57 | 1.97 | 4.12 | 3.75 | 2.48 | 1.50 | 1.25 | 0.50 | 3.75 | 1.42 | 1.25 | 2.48 | 0.50 |
50t | 5.91 | 2.99 | 1.49 | 4.10 | 0.75 | 1.40 | 12.00 | 1.57 | 1.97 | 4.12 | 3.75 | 2.48 | 1.50 | 1.25 | 0.50 | 3.75 | 1.42 | 1.25 | 2.48 | 0.50 |
50t-797 | 7.97 | 2.99 | 1.49 | 6.17 | 0.75 | 1.40 | 12.00 | 1.57 | 1.97 | 4.12 | 3.75 | 2.48 | 1.50 | 1.25 | 0.50 | 3.75 | 1.42 | 1.25 | 2.48 | 0.50 |
100t | 5.91 | 4.02 | 2.12 | 4.10 | 0.75 | 1.99 | 12.00 | 1.57 | 1.97 | 5.10 | 3.54 | 3.13 | 2.14 | 1.57 | 0.19 | 4.33 | 2.01 | 1.77 | 3.15 | 0.39 |
| Product name | LC406B Compression Column Canister Weighbridge Load Cell Column Mount Load Cells |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
