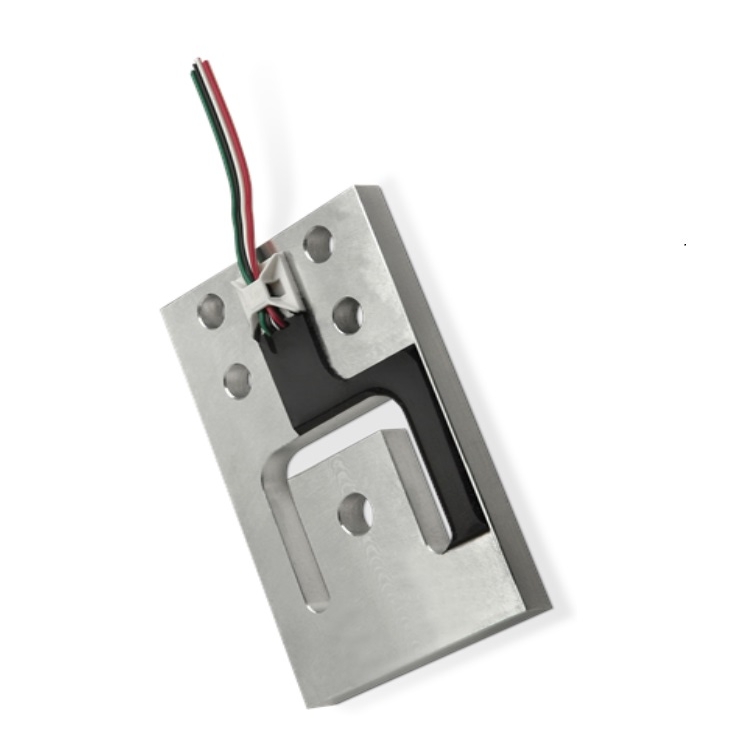

LC3999 Low Profile Aluminum Sensor Planar Beam Load Cell

Availability:
Quantity:
  • LC3999
  • SAINTBOND

Load Cell

LC3999-3

Product Description:

LC3999 is a very low profile planar beam design, allowing direct  mounting in low profile platform scales. The range of capacities and low profile makes model 380 most suitable for use in a wide range of applications.

Features:

Full Scale Output: 0.9mV/V±0.1%;

Safe Overload: 150%;

Breaking Overload: 300%;

IP Rating: IP65;

Dimension:

LC3999

Cap.

L

A

B

C

D

W

H

Q1

Q2

(kg)

(mm)

7.5kg

70

14

28

4.9

27.8

39

2.5

5.1

5.1

15kg

70

14

28

4.9

27.8

39

4.1

6.2

5.1

37.5kg

76.2

15

29.3

6

30

44.5

4.8

6.2

6.6

50kg

84.5

15

34

6.4

30

55

5.3

7.6

6.6

75kg

84.5

15

34

6.4

30

55

6.4

7.6

6.6

150kg

107.5

22.8

45.9

7.8

44.5

70

8

5/16unc

8.1

250kg

107.3

22.9

45.8

7.9

44.5

70

10.0

9.1

8.1

Specification:

Rated Capacity:

7.5/15/37.5/50/75/150/250kg

Full Scale Output:

1.0mV/V ± 0.1%

Insulation Resistance:

>5000M

Zero Balance:

± 0.02mV/V

Temp. Effect on Sensitivity:

<±0.0015% of Cn/k

Non-linearity:

< ± 0.020%

Temp.Effect on Zero Balance:

<± 0.0030% of Cn/k

Repeatability:

< ± 0.017%

Nominal Temperature Range:

–10°C to 40°C/14°F to 104°F

Hysteresis Error:

< ± 0.015%

Service Temperature Range:

–18°C to 65°C/0°F to 149°F

Creep in 30 minutes:

< ± 0.015%

Storage Temperature Range:

-50°C to 85°C/-58°F to 185°F

Recommended Excitation:

10V (15V Maximum)

Safe Overload:

150% of full scale

Cable length:

1.5m

Breaking Overload:

300% of full scale

IP Rating:

IP65

Safe side bad:

200% of full scale

Construction:

Aluminum



Input Resistance:

1160Ω ± 10Ω  /750±5Ω  /380Ω ± 10Ω

Output Resistance:

1000Ω ± 10Ω  /702±2Ω  /350Ω ± 10Ω
