| Quantity: | |
|---|---|
LC3998
SAINTBOND
Product Description:

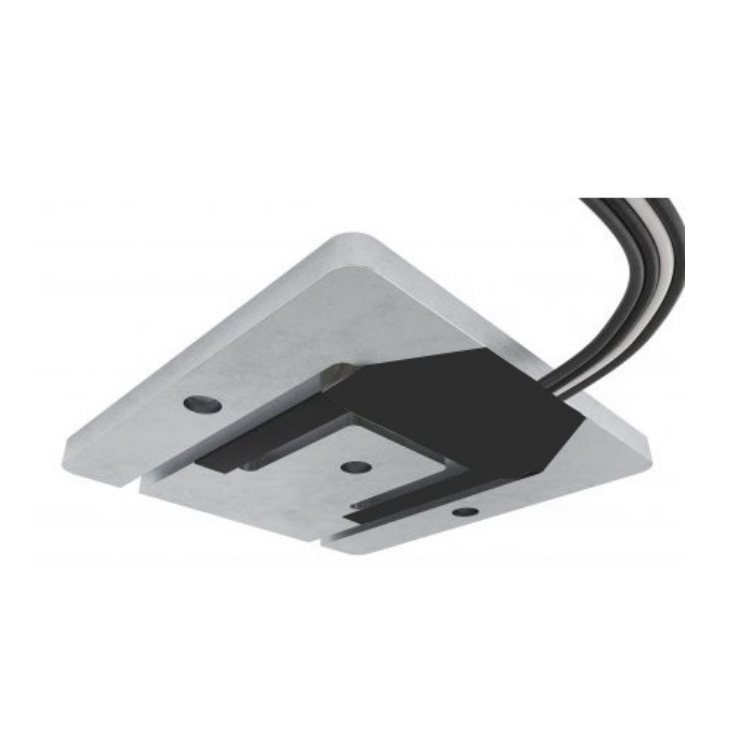

The PBW planar beam is an load cell for use in ultra-low profile weighing equipment. The planar beam is designed to be used as an alternative to a single point load cell – hence 3 or 4 units are required for each application. Optimum accuracy is ensured with mounting locations outboard of the sensing section. Constructed from aluminium and environmentally protected using potting material. The PBW is available in a range of capacities – from 5.7kg through to 125kg.
Application:
Retail scales, bench scales, medical equipment, test & measurement applications.
Dimension:
Capacity | H1 | H2 | ΦD1 | ΦD2* | Deflection |
(lb) | (mm) | (mm) | (mm) | (mm) | (mm) |
12.5 | 2.5 | -- | -- | 4.2 | 0.42 |
18.75 | 4 | -- | -- | 4.2 | |
25 | 3.2 | -- | -- | 4.2 | 0.49 |
37.5 | 4 | -- | -- | 6.2 | 0.38 |
50 | 4 | -- | -- | 6.2 | 0.48 |
100 | 6.4 | -- | -- | 6.2 | |
240 | 8 | 3.2 | 7.4 | 8.2 | 0.46 |
275 | 8 | 3.2 | 7.4 | 8.2 | 0.47 |
Note: Other loading holes on request.
Specification:
Rated Capacity: | 5.7/8.5/11.3/17/22.7/45.4/109/125kg 12.5/18.75/25/37.5/50/100/240/275lb | ||
Insulation resistance: | ≥2000MΩ | Temp. effect on span: | ±0.1%F.S/10℃ |
Full Scale Output: | 1.0mV/V ± 0.15 | Temp. effect on zero: | ±0.05%F.S/10℃ |
Non-linearity: | 0.05%FS | Compensated temp. range: | -10～+40℃ |
Hysteresis: | ±0.05%F.S | Use temp. range: | -10～+40℃ |
Creep: | ±0.05%F.S/3min | Excitation voltage: | 3～8V(DC) |
Zero balance: | ±0.3%F.S | Safe overload: | 120%F.S |
Input resistance: | 1000±10Ω | Ultimate overload : | 150%F.S |
Output resistance: | 1000±10Ω | ||
Packet weight(g): | 35 (12.5lb)/45 (18.75lb)/41 (25lb)/50 (37.5lb)/50 (50lb)/70 (100lb)/88 (275lb) | ||
| Product name | LC3998 Low Profile Load Cell Planar Beam Load Cell for Low Platform Scale |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
