LC3994 China 50KG Planar Beam Load Cells Miniature Planar Beam Weight Sensor

Availability:
Quantity:
  • LC3994
  • SAINTBOND

Load Cell

LC3994-2

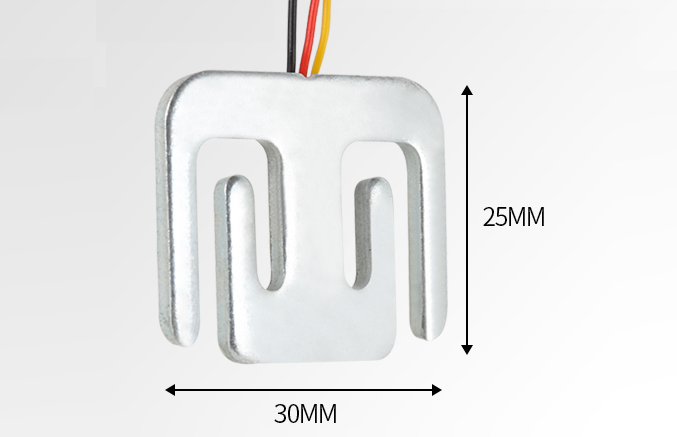

Dimensions:

LC3994

Technical Parameter:

Output Sensitivity

1.0±0.1mV/V

Input Resistance

1000±5Ω

Capacity

50kg

Output Resistance

1000±5Ω

Comprehensive accuracy

0.3%FS

Zero Output

±0.3mV/V

Nominal impedance of strain gauge

1000Ω

Difference between upper and lower impedance of each strain gauge

0.8Ω

Four in each group, with scattered sensitivity

±0.15%FS

圣邦网站1详情页_05

Product name LC3994 China 50KG Planar Beam Load Cells Miniature Planar Beam Weight Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
