LC3991
SAINTBOND
Product Description:
Planar beam load cell,very low profile,matched output.Aluminum construction with surface anodized.Mainly for low profile infant and adult medical scale,low profile platform scales,personal scale,airport baggage scale,postal scales etc.

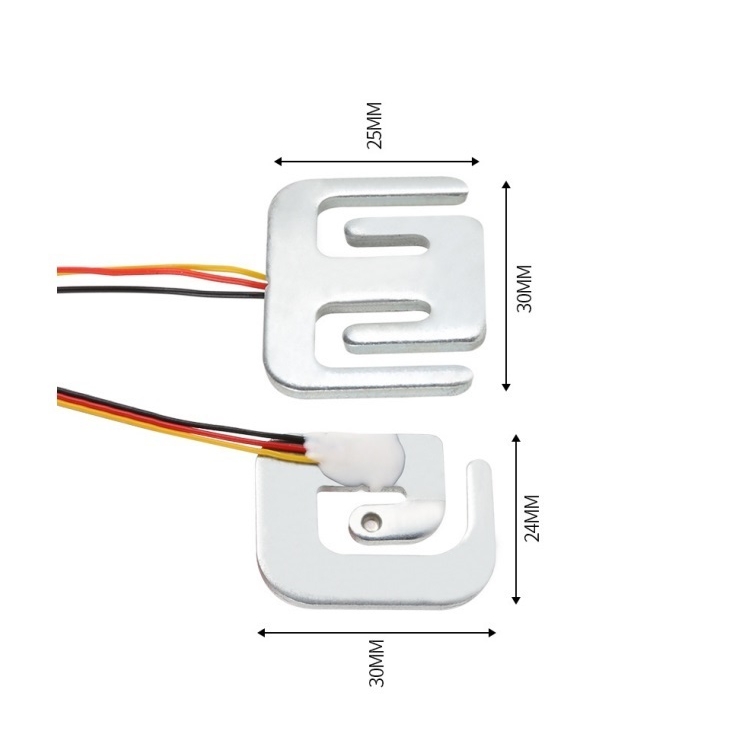

Dimension:
Specification:
Rated Capacity: | 50Kg | Insulation resistance: | ≥2000MΩ |
Full Scale Output: | 1.0mV/V ± 0.15 | Temp. effect on span: | ±0.1%F.S/10℃ |
Non-linearity: | 0.05%FS | Temp. effect on zero: | ±0.05%F.S/10℃ |
Hysteresis: | ±0.05%F.S | Compensated temp. range: | -10～+40℃ |
Creep: | ±0.05%F.S/3min | Use temp. range: | -10～+40℃ |
Zero balance: | ±0.3%F.S | Excitation voltage: | 3～8V(DC) |
Input resistance: | 1000±10Ω | Safe overload: | 120%F.S |
Output resistance: | 1000±10Ω | Ultimate overload : | 150%F.S |
Application:
| Product name | LC3991 Planar Beam Load Cell Supplier Micro Load Cell at Scales |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
