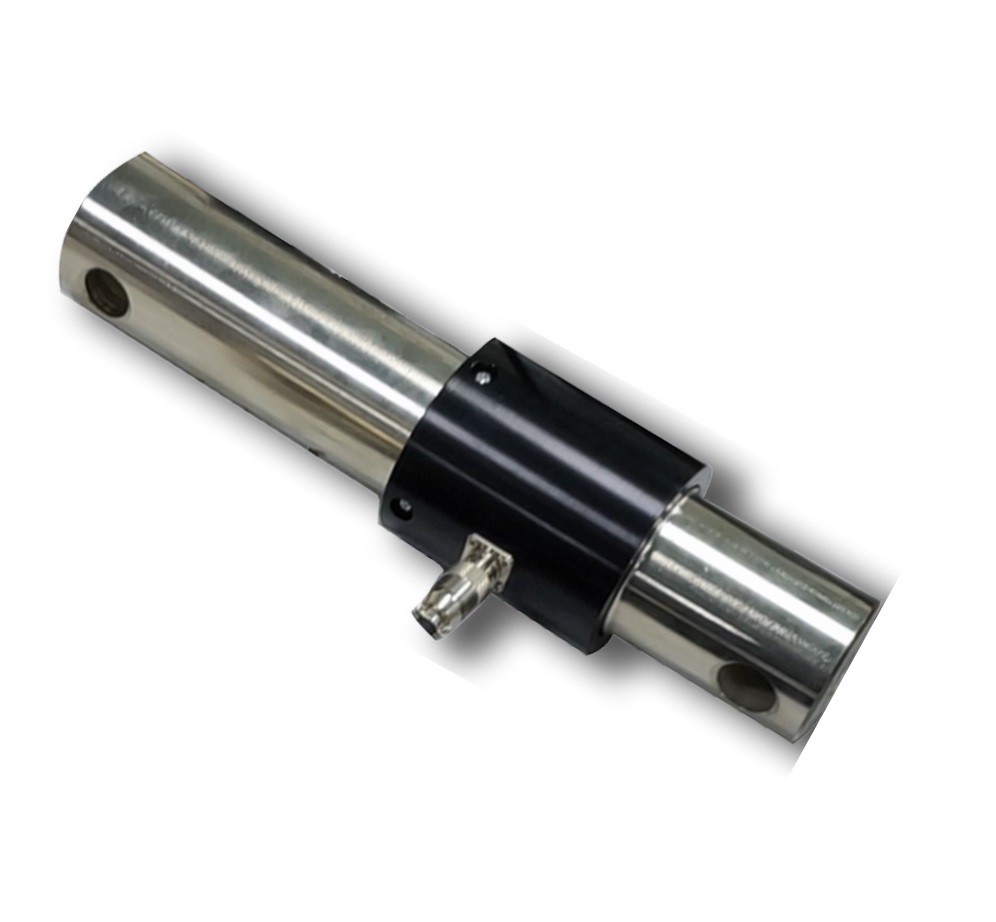

LC398
SAINTBOND
Dimension:
Key Features:
◎Alloy /Stainless steel construction;
◎Hermetically sealed;
◎Wide capacity range;
◎High accuracy;
Application:
Bagging machinery, conveyor scales, vessel and hopper weighing systems.
Technical Parameter:
Rated Load: | 5/10/15/18klbs | ||
Sensitivity: | (2.0±0.1%) mV/V | Operating Temp. Range: | -10~+70℃ |
Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.03% F.S | Ultimate Over Load:: | 300%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP68 |
Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
Output Resistance: | 351±2Ω | Cable: | Length=L:3m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/OIMLR60 |
| Product name | LC398 500kg 1000kg 50 Ton Shelf Load Weight Sensor Shear Beam Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
