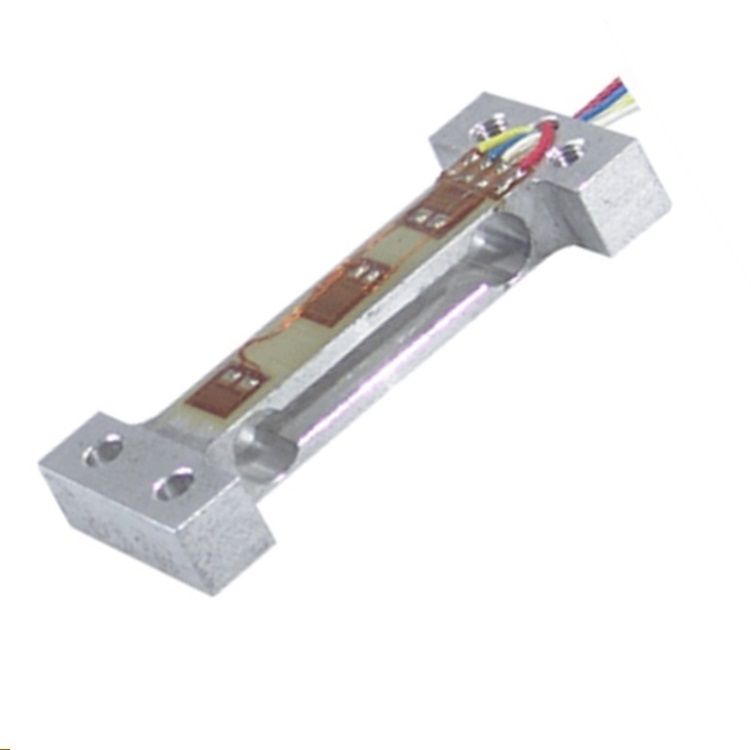

LC3704 Parallel Beam Load Cell Force Sensors Miniature Sensors

Availability:
Quantity:
  • LC3704
  • SAINTBOND

Load Cell

LC3704-4

Dimensions:

LC3704

100g,120g L1=10.5  L2=6.5 ;  300g,500g,1000g  L1=6.5  L2=6.5



Technical Parameter:

Model

LC3704

Temp.Effect on Output

0.05%F.S/10℃

Capacity

Output Sensitivity

100/120g

0.60±20%mV/V

Zero Output

±0.5%F.S

Capacity

Output Sensitivity

300/500/1000g

0.90±20%mV/V

Input Resistance

1055±10Ω

Comprehensive Error

0.05

Output Resistance

1000±10Ω

Non-linearity

±0.05%F.S

Insulation Resistance

≥2000MΩ (50V)

Repeatability

±0.05%F.S

Excitation Voltage

≤6V

Hysteresis

±0.05%F.S

Operation Temp.Range

-10--+40℃

Creep

±0.05(3min)%F.S

Overload Capacity

150%F.S

Temp.Effect on Zero

±2.0%F.S/10℃

Recommended Use

Handable Scales

圣邦网站1详情页_05

Product name LC3704 Parallel Beam Load Cell Force Sensors Miniature Sensors
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
