| Quantity: | |
|---|---|

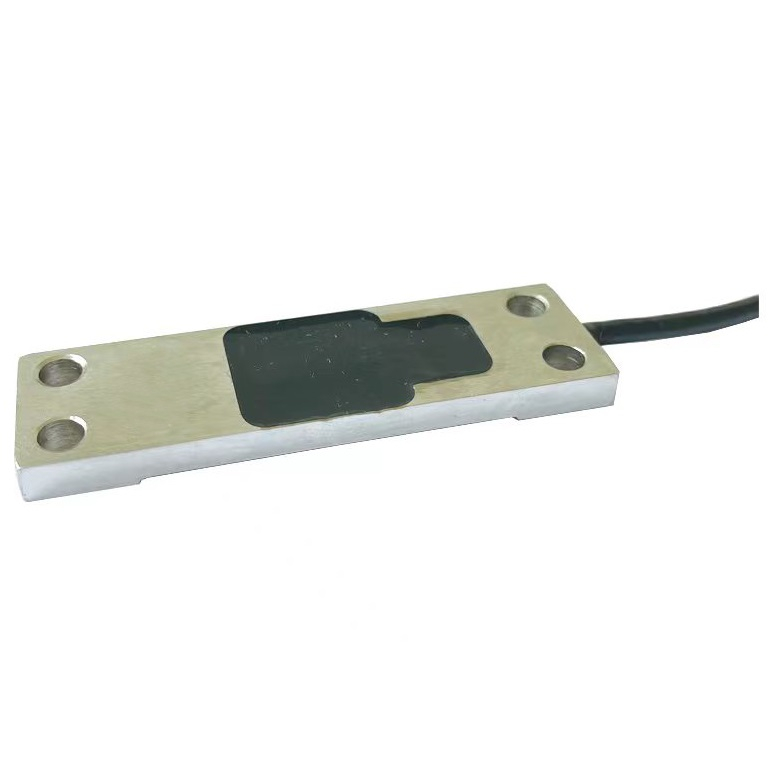

LC3703B
SAINTBOND
Technical Parameter:
Capacity | 500kg | Input Resistance | 1kΩ |
Output Sensitivity | 2±0.2mV/V | Output Resistance | 1kΩ |
Non-linearity | ±0.3%F.S | Insulation Resistance | ≥1000MΩ (30VDC) |
Repeatability | ±0.3%F.S | Excitation Voltage | ≤10V |
Hysteresis | ±0.5%F.S | Operation Temp.Range | -10--+40℃ |
Creep | ±0.05(5min)%F.S | Overload Capacity | 150%F.S |
Temp.Effect on Zero | ±0.2%F.S/10℃ | Material: | Alloy Steel |
Temp.Effect on Output | ±0.05%F.S/10℃ | Cable | 1m |
| Product name | LC3703B Planar Beam Cheap Load Cell Plate Type Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
Technical Parameter:
Capacity | 500kg | Input Resistance | 1kΩ |
Output Sensitivity | 2±0.2mV/V | Output Resistance | 1kΩ |
Non-linearity | ±0.3%F.S | Insulation Resistance | ≥1000MΩ (30VDC) |
Repeatability | ±0.3%F.S | Excitation Voltage | ≤10V |
Hysteresis | ±0.5%F.S | Operation Temp.Range | -10--+40℃ |
Creep | ±0.05(5min)%F.S | Overload Capacity | 150%F.S |
Temp.Effect on Zero | ±0.2%F.S/10℃ | Material: | Alloy Steel |
Temp.Effect on Output | ±0.05%F.S/10℃ | Cable | 1m |
| Product name | LC3703B Planar Beam Cheap Load Cell Plate Type Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
