PRODUCT DETAIL
You are here: Home » Products » Load Cell » Single Point Load Cell » LC3599 China Load Cell Manufacturers Aluminum Miniature Single Load Cell Platform Scale
Share to:

LC3599 China Load Cell Manufacturers Aluminum Miniature Single Load Cell Platform Scale

Availability:
Quantity:
  • LC3599
  • SAINTBOND

Load Cell

LC3599-4

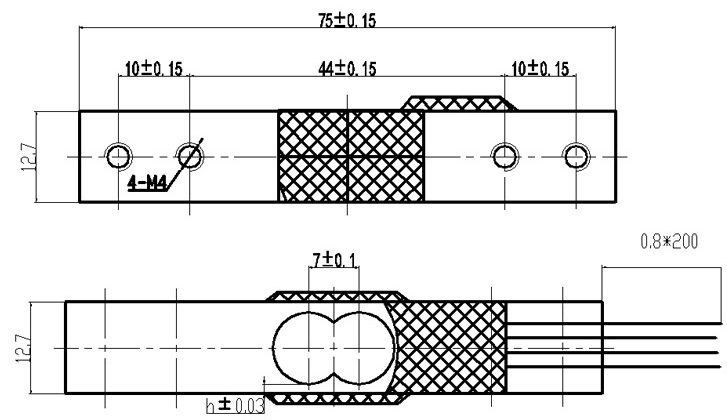

Dimensions:

LC3599

Technical Parameter:

Rated Load:

1~10kg

Four Angle Error:

0.05%F.S

Comprehensive Error:

0.02%F.S

Input Resistance:

1000±10Ω

Rated Output:

1±0.1mV/V

Output Resistance:

1000±10Ω

Non-Linearity:

0.03%F.S

Compensated Temp. Range:

-10℃~+40℃

Hysteresis:

0.03%F.S

Use Temp. Range:

-20℃~+60℃

Repeatability:

0.03%F.S

Temp. Effect On Zero:

0.03%F.S/10℃

Creep:

& 0.05%F.S/3min

Temp. Effect On Span:

0.3%F.S/10℃

Zero Balance:

-0.15±0.05%F.S

Safe Overload:

120%

Dimension:

75×12.7×12.7

Ultimate Overload:

150%

LC3599-

圣邦网站1详情页_05

Product name LC3599 China Load Cell Manufacturers Aluminum Miniature Single Load Cell Platform Scale
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
