LC3597 Electronic Platform Weighing Scale Load Cell Aluminum Miniature Load Cell

Availability:
Quantity:
  • LC3597
  • SAINTBOND

Load Cell

LC3597

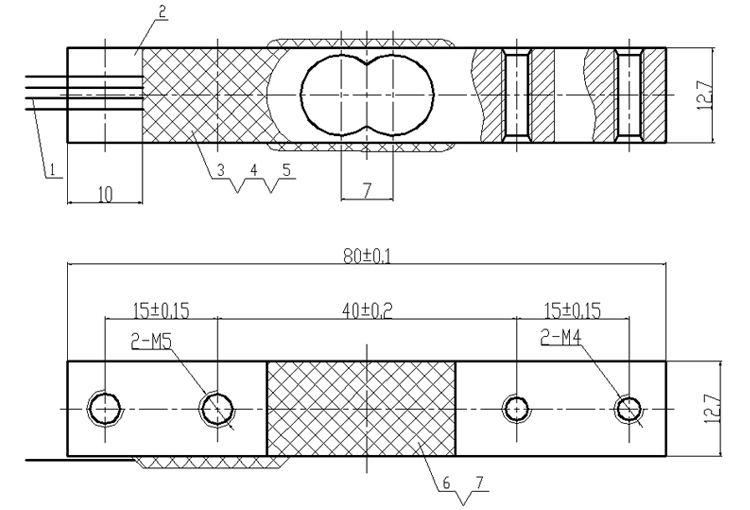

Dimensions:

LC3597

Technical Parameter:

Rated Load:

1~10kg

Rated Output:

-0.15±0.05mV/V

Rated Output:

1±0.1mV/V

Output Resistance:

1000±5%Ω

Non-Linearity:

0.05%F.S

Four angle error:

0.05%F.S

Hysteresis:

0.05%F.S

Temp. Effect On Zero:

0.05%F.S/10℃

Repeatability:

0.05%F.S

Temp. Effect On Span:

0.5%F.S/10℃

Creep:

& 0.05%F.S/3min

Dimension

80*12.7*12.7

LC3597-



圣邦网站1详情页_05

Product name LC3597 Electronic Platform Weighing Scale Load Cell Aluminum Miniature Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
