LC358
SAINTBOND
Dimension: (mm)
Technical Parameter:
Rated Load: | 0.5/1/2/3/5//10t | ||
Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 385±5Ω | Element Material: | Alloy Steel/ Stainless Steel |
Output Resistance: | 351±2Ω | Cable: | Length=L:6m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |

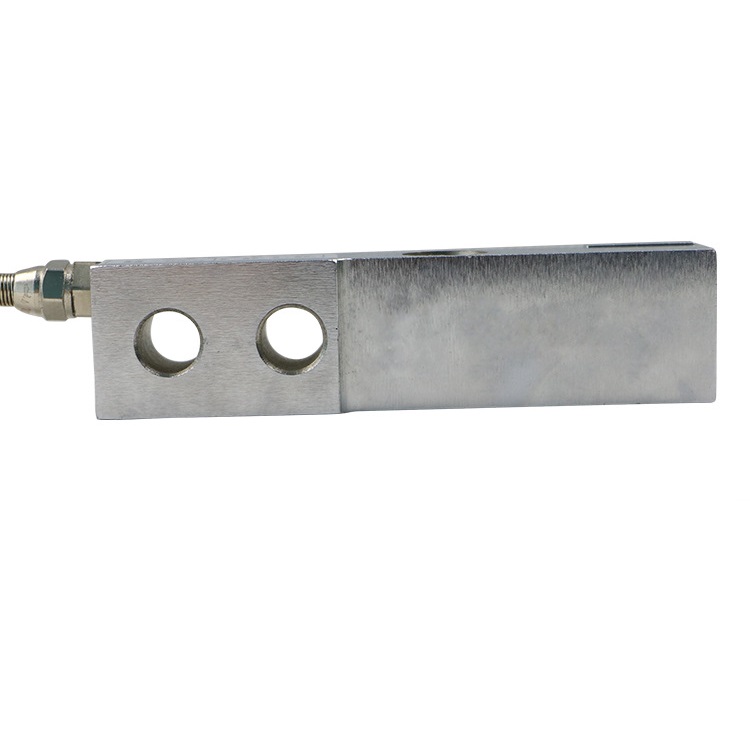

Product name | LC358 Alloy Steel Beam Type Load Cell Senor Beam Load Cell Stainless Steel |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
