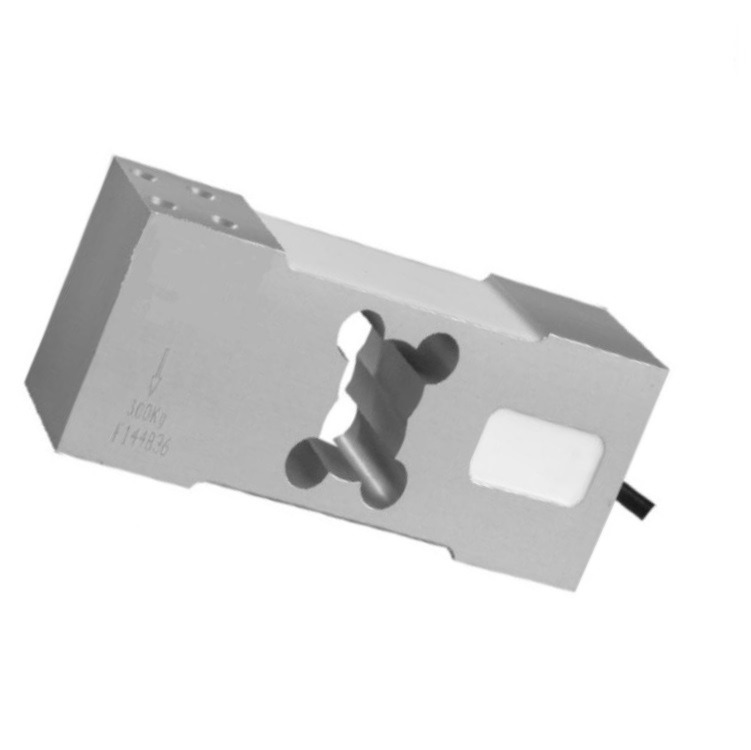

LC3533 Bench Scales Load Cell Weighing System Aluminum Load Cell

Availability:
Quantity:
  • LC3533

  • SAINTBOND

Load Cell

LC3533

Dimensions:

LC3533

Technical Parameter:

Rated Load:

50kg~1000kg

Insulation Resistance:

≥5000MΩ

Sensitivity:

(2.0±0.1%) mV/V

Operating Temp.Range:

-30~+70℃

Combined Error:

±0.03% F.S

Maximum Safe Over Load:

150%F.S

Creep Error(30min):

±0.03% F.S

Ultimate Over Load:

200%F.S

Zero Balance:

±1% F.S

Recommend Excitation Vol.:

10~12V DC

Temp. Effect On Zero:

±0.02% F.S/10℃

Maximum Excitation Vol.:

15V DC

Temp. Effect On Span:

±0.02% F.S/10℃

Sealing Class:

IP65

Input Resistance:

385±5Ω

Element Material:

Aluminum

Output Resistance:

353±2Ω

Cable:

Length=L:3m

Insulation Resistance:

≥5000MΩ

Citation:

GB/T7551-2008

/ OIML R60

圣邦网站1详情页_05

Product name LC3533 Bench Scales Load Cell Weighing System Aluminum Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
