LC3529
SAINTBOND
Features：
◎Aluminum Alloy ◎Micro Structure ◎Special used for pocket scale

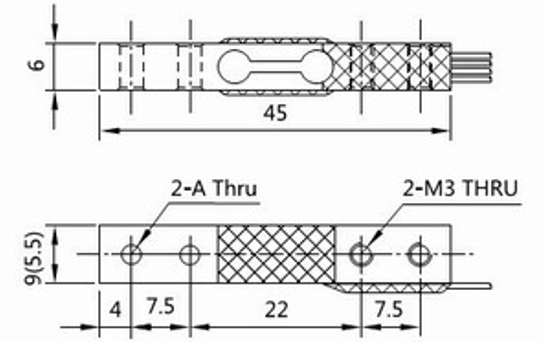

Dimension：
Miniature Load Cells：
Rated Capacity: | 150/300/500/750g | Creep in 2 Min.: | ±0.05%R.O |
Rated Output: | 0.65±20%mV/V | Temp. Effect On Output: | ±0.05%R.O/10℃ |
Zero Balance: | ±0.1mV/V | Temp. Effect On Zero: | ±2%R.O/10℃ |
Input Resistance: | 1130±20Ω | Recommended Excitation: | ≤6VDC |
Output Resistance: | 1000±10Ω | Operating Temp. Range: | -10-+40℃ |
Linearity Error: | ±0.05%R.O | Safe Overload: | 150%R.C |
Repeatability: | ±0.05%R.O | Insulation Resistance: | ≥2000MΩ(50VDC) |
Hysteresis Error: | ±0.05%R.O | Cable Length: | Φ0.6mm×0.1m |
◎Dimension & specification will be change, please certified find.
◎The load cell has the advantages of compact structure, suitable for pocket scale, jewelry scale, measuring force, etc.. At the same time can be customized according to customer requirements of the sensor.
| Product name | LC3529 Industrial Bench Scales Load Cell Pocket Scale Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
Features：
◎Aluminum Alloy ◎Micro Structure ◎Special used for pocket scale
Dimension：
Miniature Load Cells：
Rated Capacity: | 150/300/500/750g | Creep in 2 Min.: | ±0.05%R.O |
Rated Output: | 0.65±20%mV/V | Temp. Effect On Output: | ±0.05%R.O/10℃ |
Zero Balance: | ±0.1mV/V | Temp. Effect On Zero: | ±2%R.O/10℃ |
Input Resistance: | 1130±20Ω | Recommended Excitation: | ≤6VDC |
Output Resistance: | 1000±10Ω | Operating Temp. Range: | -10-+40℃ |
Linearity Error: | ±0.05%R.O | Safe Overload: | 150%R.C |
Repeatability: | ±0.05%R.O | Insulation Resistance: | ≥2000MΩ(50VDC) |
Hysteresis Error: | ±0.05%R.O | Cable Length: | Φ0.6mm×0.1m |
◎Dimension & specification will be change, please certified find.
◎The load cell has the advantages of compact structure, suitable for pocket scale, jewelry scale, measuring force, etc.. At the same time can be customized according to customer requirements of the sensor.
| Product name | LC3529 Industrial Bench Scales Load Cell Pocket Scale Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
