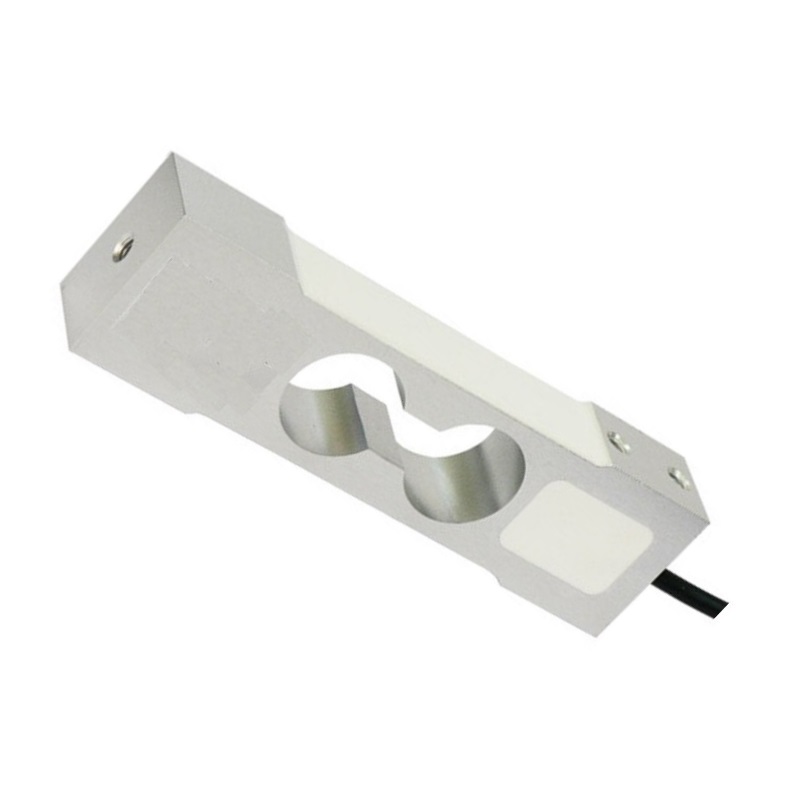

LC3521 Aluminium Weighing Single Point Load Cells Sensor for Smaller Weighing Systems

Sensitivity

(2.0±0.1%) mV/V

Operating Temp. Range

-30~+70℃

Combined Error

±0.02% F.S

Maximum Safe Over Load:

150%F.S

Creep Error(30min):

±0.02% F.S

Ultimate Over Load:

250%F.S

Zero Balance

±1% F.S

Recommend Excitation Vol.:

10~12V DC

Temp. Effect On Zero:

±0.02% F.S/10℃

Maximum Excitation Vol.:

15V DC

Temp. Effect On Span:

±0.02% F.S/10℃

Sealing Class:

IP65

Input Resistance:

385±5Ω

Element Material:

Aluminum-alloy

Output Resistance:

352±2Ω

Cable:

Length=L:3m

Insulation Resistance:

≥5000MΩ

Citation:

GB/T7551-1997/ OIML R60
