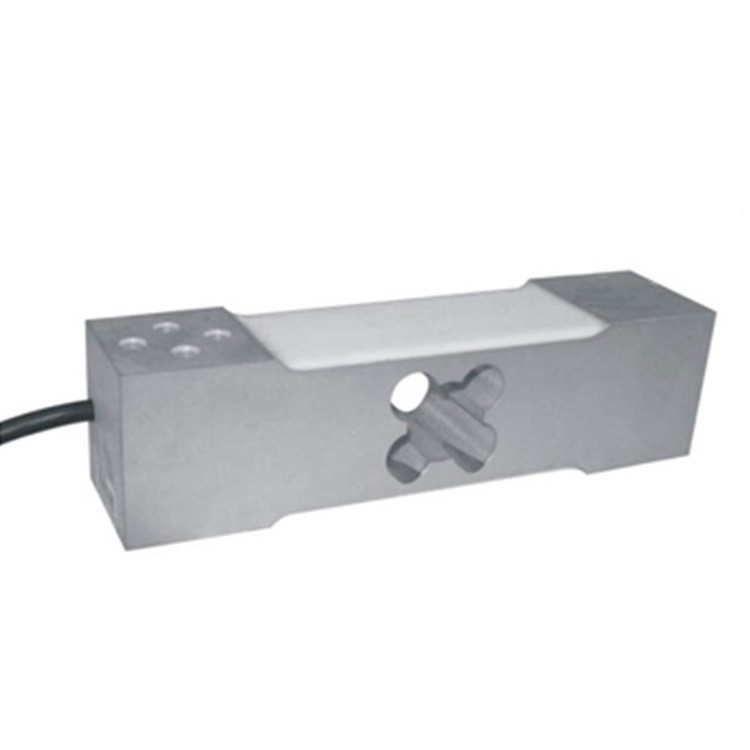

LC3519 Bench Weighing Weight Scale Aluminum Single Point Load Cell

Availability:
Quantity:
  • LC3519
  • SAINTBOND

Load Cell

LC3519

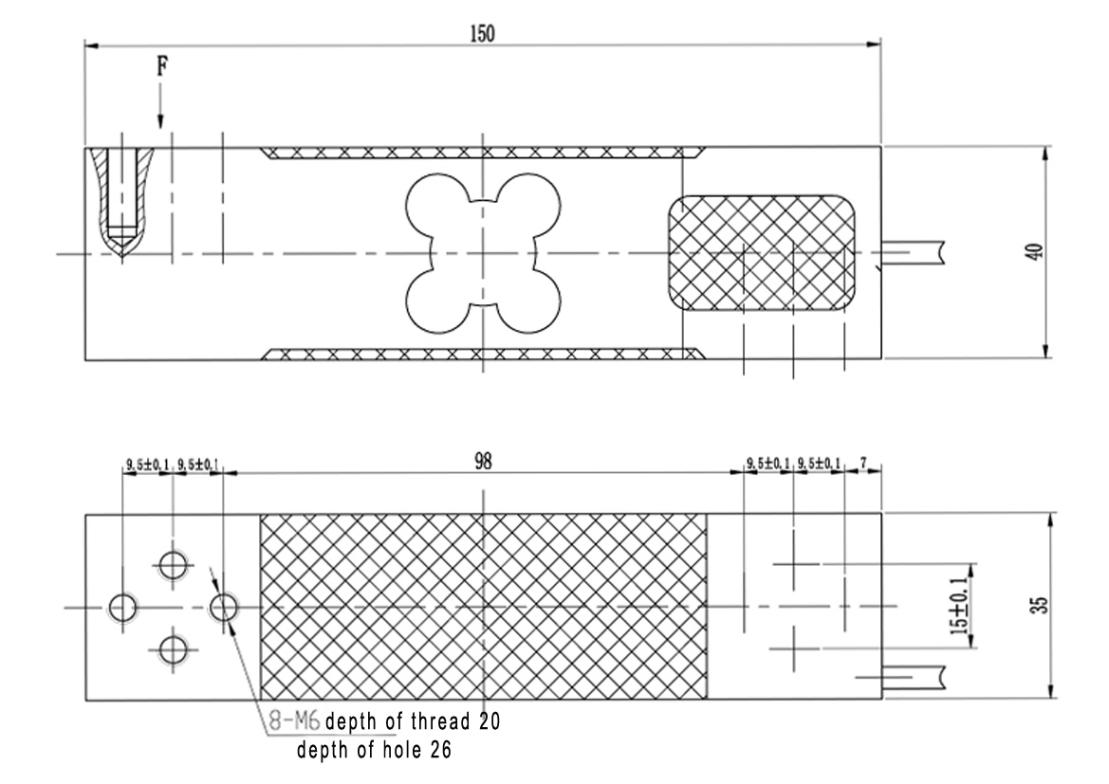

Dimensions:

LC3519

Technical Parameter:

Rated Load:

30/50/60/100/150/200/250/300/350/500kg

Comprehensive Error:

0.017%F.S & 0.02%F.S

Insulation Resistance:

≥5000MΩ(100VDC)

Rated Output:

2±0.2mV/V

Excitation Voltage:

9VDC~12VDC

Non-Linearity:

0.02%F.S & 0.014%F.S

Compensated Temp. Range:

-10℃~+40℃

Hysteresis:

0.017%F.S & 0.02%F.S

Use Temp. Range:

-20℃~+60℃

Repeatability:

0.01%F.S & 0.02%F.S

Temp. Effect On Zero:

±0.03%/+0.01%F.S/10℃

Creep:

±0.017%F.S/30min

& 0.02%F.S/10min

Temp. Effect On Span:

±0.02%/ ±0.014%F.S/10℃

Zero Balance:

±2%F.S

Safe Overload:

120%

Input Resistance:

405±10Ω

Ultimate Overload:

150%

Output Resistance:

350±3Ω

Defense Class:

IP65

圣邦网站1详情页_05

Product name LC3519 Bench Weighing Weight Scale Aluminum Single Point Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
